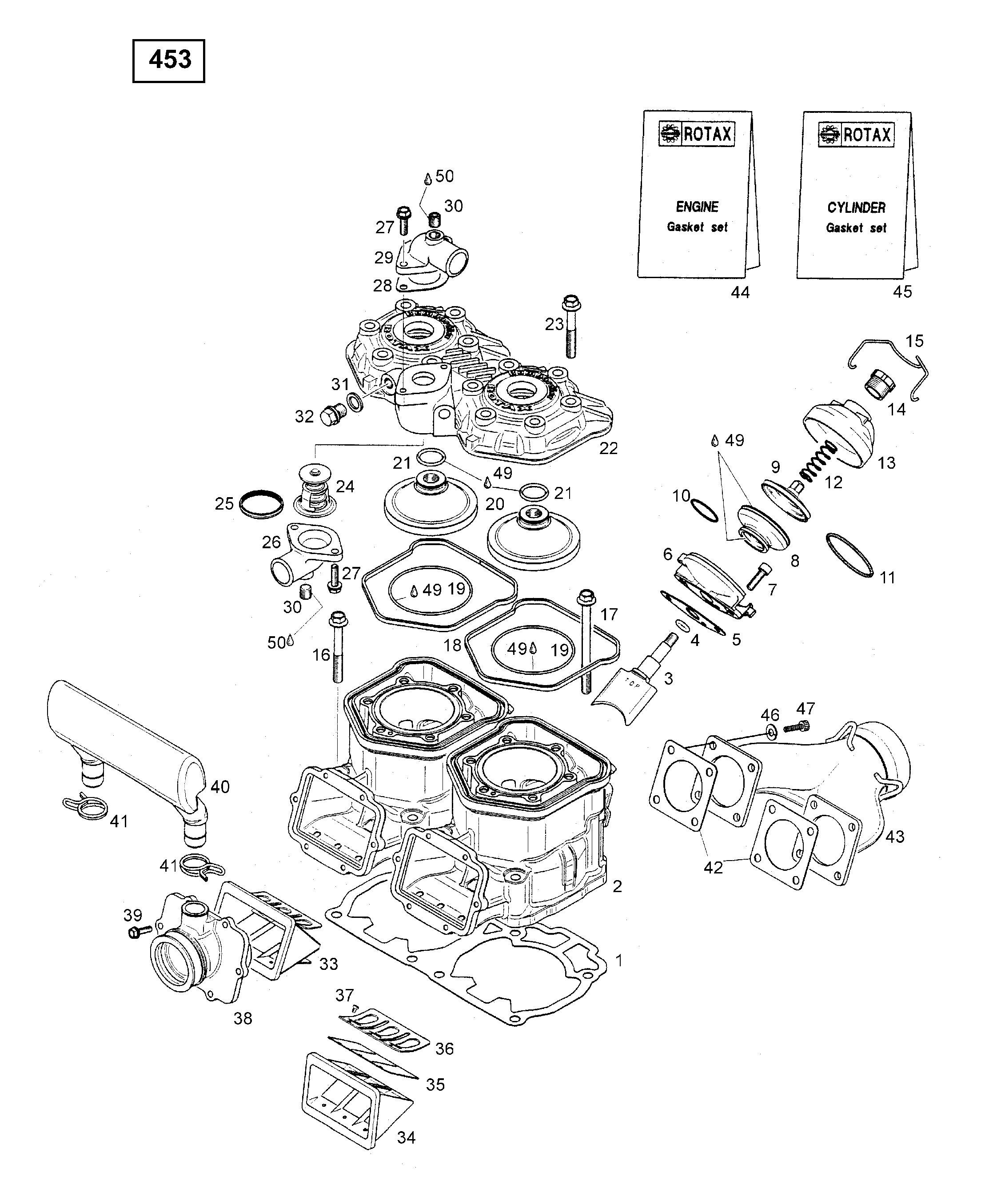

01- Cylinder для BRP Lynx Racing - 1999
-
№АртикулНазвание
-
1420931580 Gasket, double 0.3 mmGasket, double 0.3 mm
-
1420931581 Gasket, double 0.4 mmGasket, double 0.4 mm
-
1420931583 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931582 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931584 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420923720 CylinderCylinder
-
3420854480 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420250239 GasketGasket
-
6420854265 Valve rod housingValve rod housing
-
7420241930 Allen screw M6x20Allen screw M6x20
-
8420260723 BellowsBellows
-
9420854447 Exhaust valve pistonExhaust valve piston
-
10420838253 Hose springHose spring
-
11420239048 Hose springHose spring
-
12420239945 Compression springCompression spring
-
13420911551 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420838082 Spring clipSpring clip
-
16420841996 Screw M8x68.5Screw M8x68.5
-
17420940126 Hexagon screw M8x100Hexagon screw M8x100
-
18420931595 O-ringO-ring
-
19420950490 O-ringO-ring
-
20420923870 Combustion chamberCombustion chamber
-
21420430370 O-ringO-ring
-
22420923732 Cylinderhead, yellowCylinderhead, yellow
-
23420240326 Screw M8x53.5Screw M8x53.5
-
24420922515 ThermostatThermostat
-
25420931270 Thermostat gasketThermostat gasket
-
26420922061 Water outlet socketWater outlet socket
-
27420941250 Screw M6x20Screw M6x20
-
28420850338 GasketGasket
-
29420922062 Bent otlet socketBent otlet socket
-
30420240480 Plug screwPlug screw
-
31420250015 Sealing ringSealing ring
-
32420841921 Plug screwPlug screw
-
33420924640 Reed valve support assy. Includes items 33 thru 37Reed valve support assy. Includes items 33 thru 37
-
35420924630 Reed pedalReed pedal
-
36420924635 Reed pedal stopReed pedal stop
-
37420941215 Screw M3x5Screw M3x5
-
38420867865 Intake socketIntake socket
-
39420941925 Screw M5x16Screw M5x16
-
40420867815 Intake resonatorIntake resonator
-
41420851440 ClampClamp
-
42420850552 GasketGasket
-
43420973550 Exhaust manifoldExhaust manifold
-
44420888630 Gasket set engineGasket set engine
-
45420888635 Gasket set cylinderGasket set cylinder
-
4620052 Lock washerLock washer
-
4740052 Allen screw M6x20Allen screw M6x20
-
50420899785 Loctite violet, 10ccLoctite violet, 10cc
