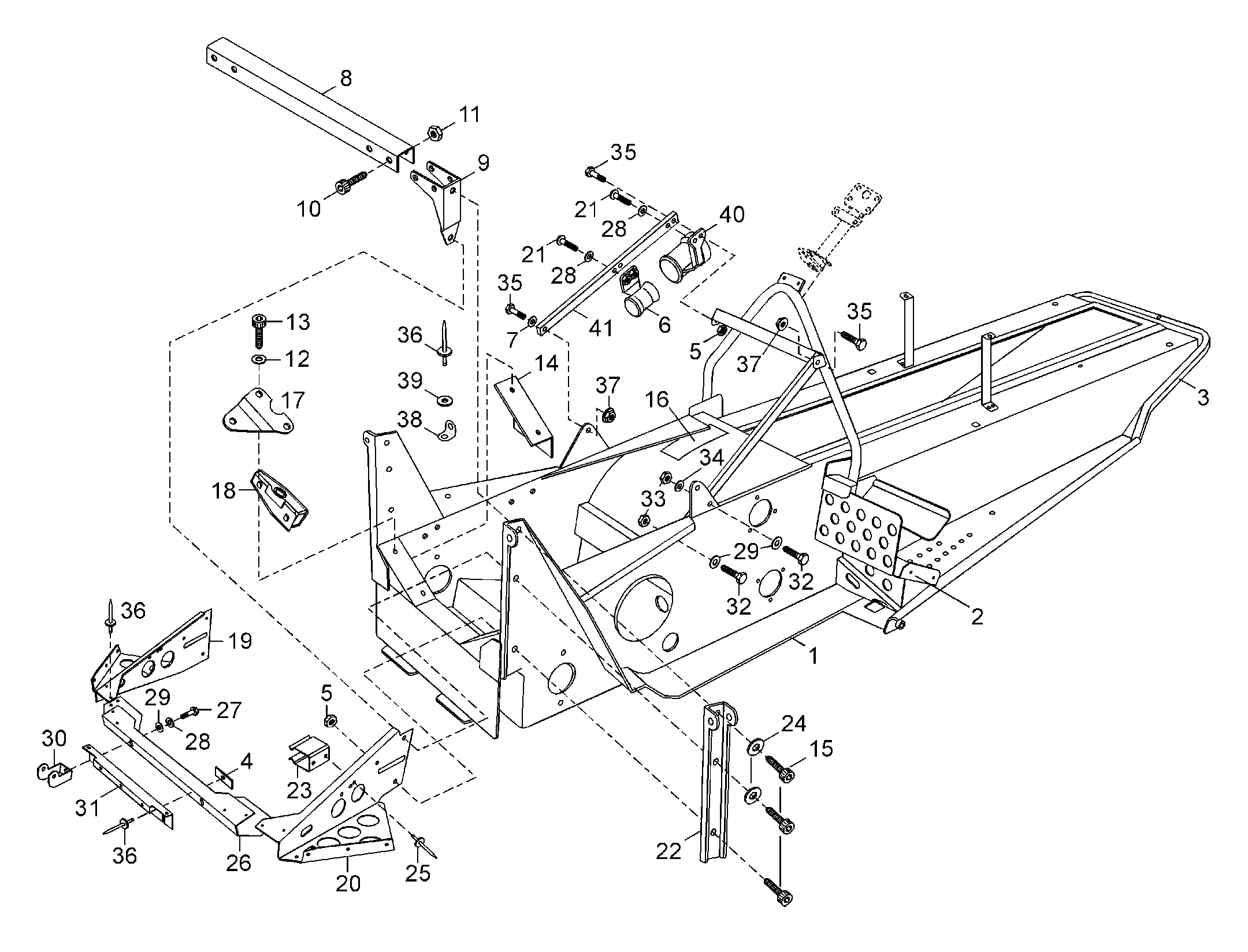

09- Frame для BRP Lynx Racing - 1999
-
№АртикулНазвание
-
15144474 Chassis unpaintedChassis unpainted
-
25243018 L.H. Front footrestL.H. Front footrest
-
25243019 R.H. Front footrestR.H. Front footrest
-
35244367 Rear Bumber, blackRear Bumber, black
-
45443926 PlatePlate
-
533011 Nut elastic M8Nut elastic M8
-
65443756 Rope GuideRope Guide
-
85341940 Support tubeSupport tube
-
95441938 Support weld.Support weld.
-
1040286 Allen screw M8x45Allen screw M8x45
-
1133029 Lock nutLock nut
-
1220072 Spring washerSpring washer
-
1340305 Allen screw M8x20Allen screw M8x20
-
145343067 SupportSupport
-
1540305 Allen screw M8x20Allen screw M8x20
-
165442096 Cover TapeCover Tape
-
185444829 Support weld.Support weld.
-
195241430 Bumber support R.H.Bumber support R.H.
-
205241429 Bumber support L.H.Bumber support L.H.
-
2140155 Screw M6x20Screw M6x20
-
225343050 BracketBracket
-
235172819052 Holder of driven beltHolder of driven belt
-
2420014 Spring washerSpring washer
-
2536083 RivetRivet
-
265341431 Hinge bumberHinge bumber
-
2740029 Screw M6x16Screw M6x16
-
2820052 Spring washerSpring washer
-
2920009 WasherWasher
-
305440867 Hinge support weld.Hinge support weld.
-
315343948 Cover palteCover palte
-
3240078 Screw M6x22Screw M6x22
-
3333010 Nut elastic M6Nut elastic M6
-
3420003 WasherWasher
-
3540037 Screw M8x25Screw M8x25
-
3636489 RivetRivet
-
3733201 Lock nut M8Lock nut M8
-
38548838 Spring endSpring end
-
3920008 WasherWasher
-
405443999 Rope GuideRope Guide
-
415443066 Support R.H.Support R.H.
-
415443986 Support L.H.Support L.H.
