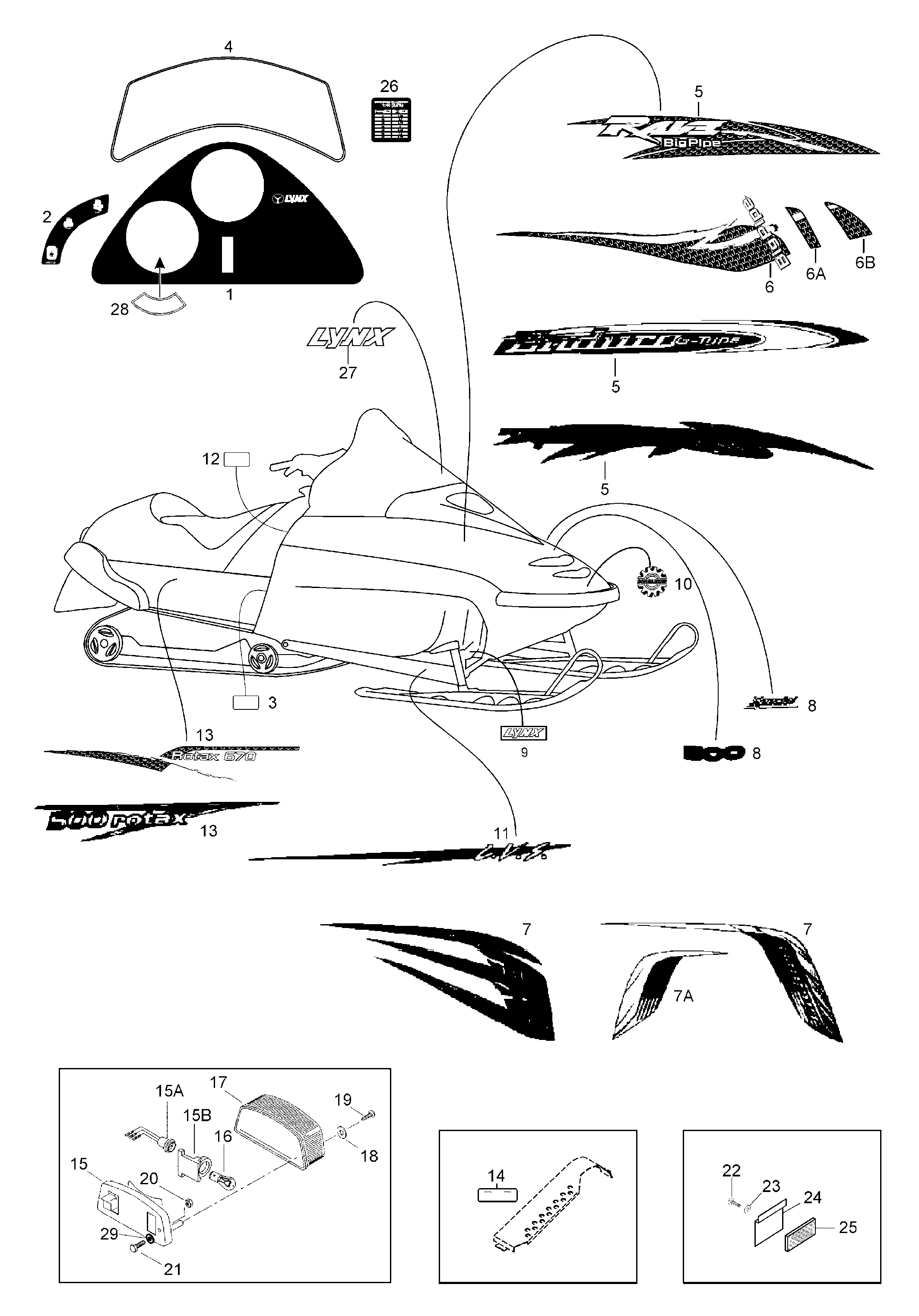

09- Decals для BRP Lynx Racing - 1999
-
№АртикулНазвание
-
5144230 Racing, chassie . (11)Racing, chassie . (11)
-
5144229 Racing, hood . (1, 2, 5, 7, 10, 26, 27)Racing, hood . (1, 2, 5, 7, 10, 26, 27)
-
5341727 Inst. decals . (1A, 3, 4, 12 and 14)Inst. decals . (1A, 3, 4, 12 and 14)
-
15241570 Control panel decalControl panel decal
-
25441726 Grip heater decalGrip heater decal
-
3418002200 CE-decalCE-decal
-
45241725 Instruction DecalInstruction Decal
-
55244555 RACING-decal R.H.RACING-decal R.H.
-
55244556 RACING-decal L.H.RACING-decal L.H.
-
75244557 Decal Lynx RacingDecal Lynx Racing
-
10516000282 Logo-BombardierLogo-Bombardier
-
115245168 Decal L.V.S. L.H.Decal L.V.S. L.H.
-
115245169 Decal L.V.S. R.H.Decal L.V.S. R.H.
-
12544068 Oil check decalOil check decal
-
14546820 Pulley decalPulley decal
-
15414979400 Taillamp housingTaillamp housing
-
15a414979400 SocketSocket
-
15b414979411 Rubber damperRubber damper
-
155341214 Taillamp assy. Includes items 15 thru 20Taillamp assy. Includes items 15 thru 20
-
16410504000 BulbBulb
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
2033200 Nut M6Nut M6
-
2140002 Screw M6x40Screw M6x40
-
225342485 Front reflector kit. Includes items 22 thru 25Front reflector kit. Includes items 22 thru 25
-
2240073 Screw 3.5x16Screw 3.5x16
-
2320037 WasherWasher
-
245442484 Bracket of reflectorBracket of reflector
-
2521060 ReflectorReflector
-
265445133 Premix-fuel-decalPremix-fuel-decal
-
275444539 Decal-LynxDecal-Lynx
-
285444853 Decal RPM limitsDecal RPM limits
-
2920009 WasherWasher
