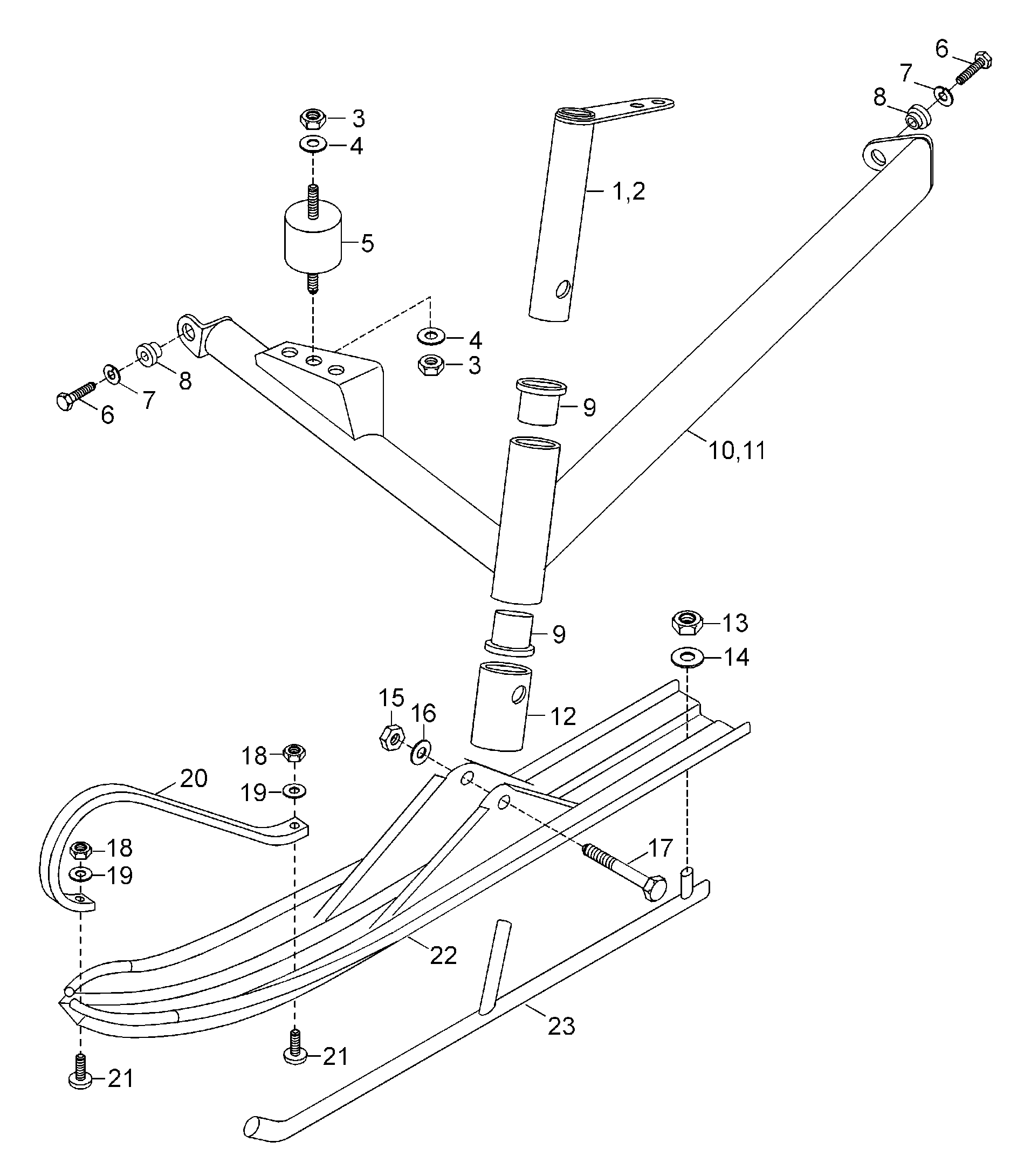

08- Front Suspension для BRP Lynx Rave 150 - 1999
-
№АртикулНазвание
-
15340295 Steering arm L.H.Steering arm L.H.
-
25340298 Steering arm rightSteering arm right
-
333004 Nut M10Nut M10
-
420047 WasherWasher
-
528411 Rubber mountRubber mount
-
640037 Screw M8x25Screw M8x25
-
720014 Lock washerLock washer
-
85440228 SleeveSleeve
-
931049 CushionCushion
-
105140283 Swing arm L.H.Swing arm L.H.
-
115140431 Swing arm R.H.Swing arm R.H.
-
125440672 SleeveSleeve
-
1333011 Nut elastic M8Nut elastic M8
-
1420004 WasherWasher
-
1533012 Nut elastic M10Nut elastic M10
-
1620005 WasherWasher
-
1740019 Screw M10x60Screw M10x60
-
1833010 Nut elastic M6Nut elastic M6
-
1920009 WasherWasher
-
205340370 Ski handleSki handle
-
2140827 Slotted head screwSlotted head screw
-
225240361 SkiSki
-
235344017 Carbide runnerCarbide runner
