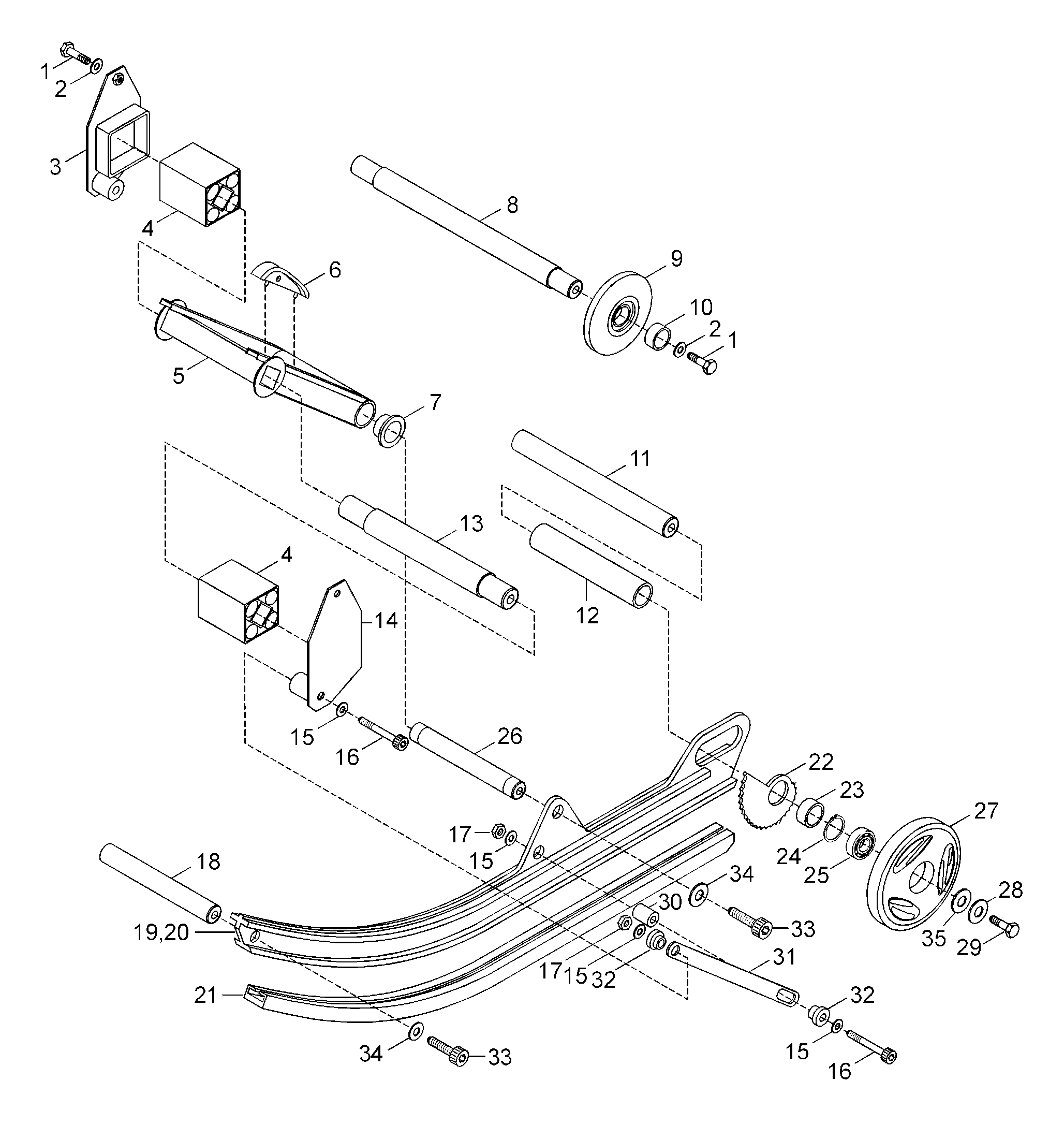

08- Rear Suspension для BRP Lynx Rave 150 - 1999
-
№АртикулНазвание
-
140029 Screw M6x16Screw M6x16
-
220003 WasherWasher
-
35340450 Rubber spring supp.Rubber spring supp.
-
45440220 Rubber springRubber spring
-
55240203 LeverLever
-
6534841 Plastic supportPlastic support
-
731049 CushionCushion
-
85441854 AxleAxle
-
9543246 Support wheelSupport wheel
-
105441855 SleeveSleeve
-
115440216 AxleAxle
-
125441856 SleeveSleeve
-
135440214 AxleAxle
-
145340221 Rubber spring supp.Rubber spring supp.
-
1520004 WasherWasher
-
1640290 Allen screw M8x55Allen screw M8x55
-
1733011 Nut elastic M8Nut elastic M8
-
185441887 AxleAxle
-
195240208 Runner LeftRunner Left
-
205240449 Runner RightRunner Right
-
215340210 Slider shoeSlider shoe
-
225440219 Adjuster plateAdjuster plate
-
235441857 SleeveSleeve
-
2431002 CirclipCirclip
-
2531009 BearingBearing
-
265441853 AxleAxle
-
27570066602 Support wheel AlSupport wheel Al
-
2820005 WasherWasher
-
2940040 Screw M10x25Screw M10x25
-
305440667 SleeveSleeve
-
315340227 StopperStopper
-
325440228 SleeveSleeve
-
3340241 Allen screw M10x30Allen screw M10x30
-
3420047 WasherWasher
-
3520011 WasherWasher
