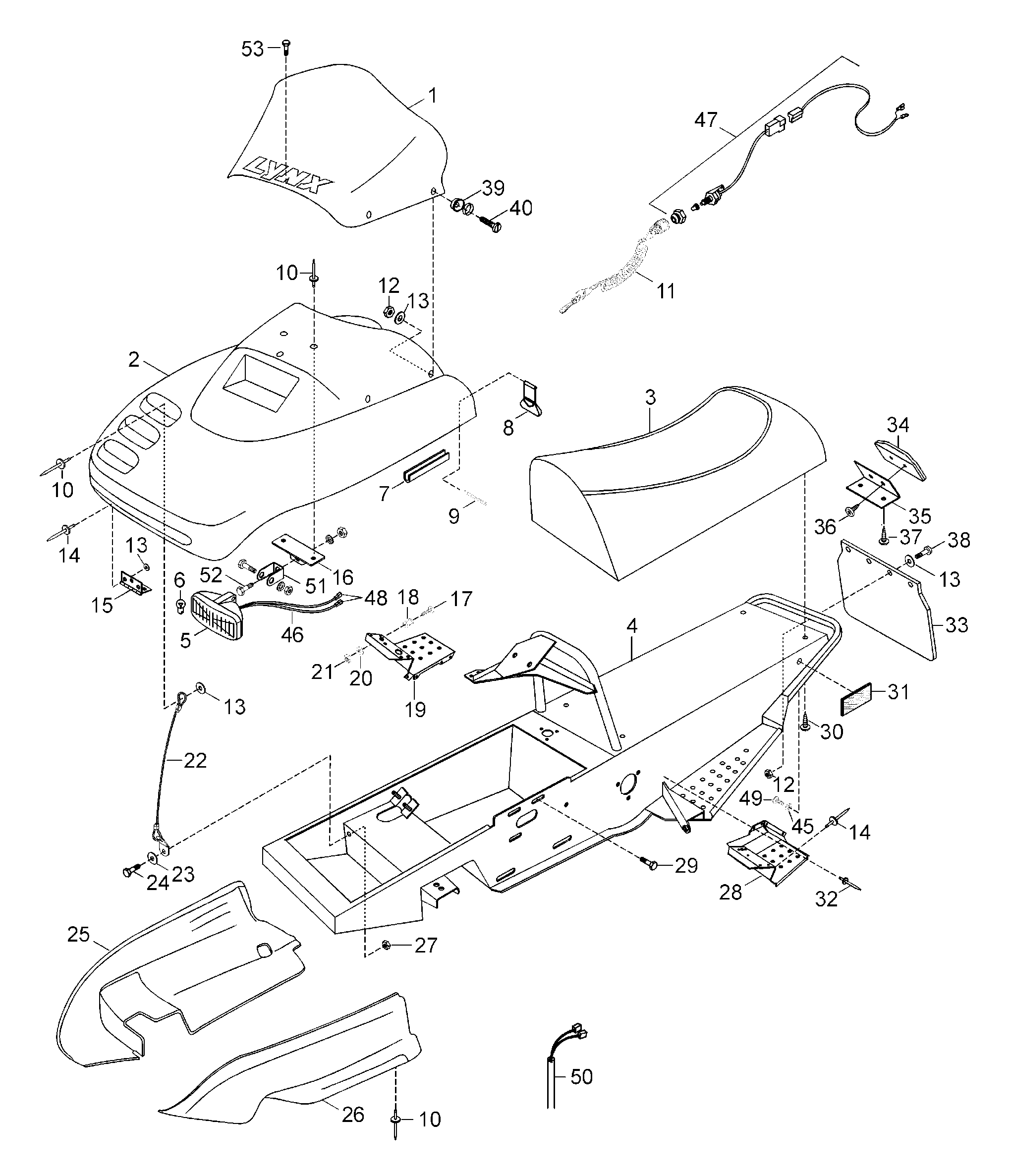

09- Body для BRP Lynx Rave 150 - 1999
-
№АртикулНазвание
-
15240416 WindshieldWindshield
-
25241811 CapCap
-
35340273 SeatSeat
-
45140185 FrameFrame
-
542260 HeadlampHeadlamp
-
642261 Bulb 12V/21WBulb 12V/21W
-
728413 Sealing ListSealing List
-
8547233 Hood latchHood latch
-
941011 Spring cotterSpring cotter
-
1036005 RivetRivet
-
114299163 Emergency switchEmergency switch
-
1233009 Nut elastic M5Nut elastic M5
-
1320008 WasherWasher
-
1436891 RivetRivet
-
1541045 HingeHinge
-
1638065 Lamp supportLamp support
-
1740168 Screw M4x25Screw M4x25
-
18542307 ButtonButton
-
195240277 Feet support R.H.Feet support R.H.
-
2020001 WasherWasher
-
2133008 Nut elastic M4Nut elastic M4
-
225440282 Cab retainer cableCab retainer cable
-
2320003 WasherWasher
-
2440029 Screw M6x16Screw M6x16
-
255240404 Bottom pan leftBottom pan left
-
265240415 Bottom pan L.H.Bottom pan L.H.
-
2733010 Nut elastic M6Nut elastic M6
-
285240274 Feet support L.H.Feet support L.H.
-
2940823 ScrewScrew
-
3040177 Plate screwPlate screw
-
31414510200 ReflectorReflector
-
3236036 RivetRivet
-
335340417 Snow guardSnow guard
-
3421059 ReflectorReflector
-
355440235 Reflector supportReflector support
-
3640830 Plate screwPlate screw
-
3740191 Plate screwPlate screw
-
3840247 Screw M5x16Screw M5x16
-
39282000 Snap capSnap cap
-
4040170 Slotted head screwSlotted head screw
-
4520018 Tooth lock washerTooth lock washer
-
4642601 WireWire
-
47544957 Switch AssySwitch Assy
-
4842061 ConnectorConnector
-
4940070 Screw M5x10Screw M5x10
-
505341810 Wire assyWire assy
-
515440281 BracketBracket
-
5340091 Screw M5x12Screw M5x12
