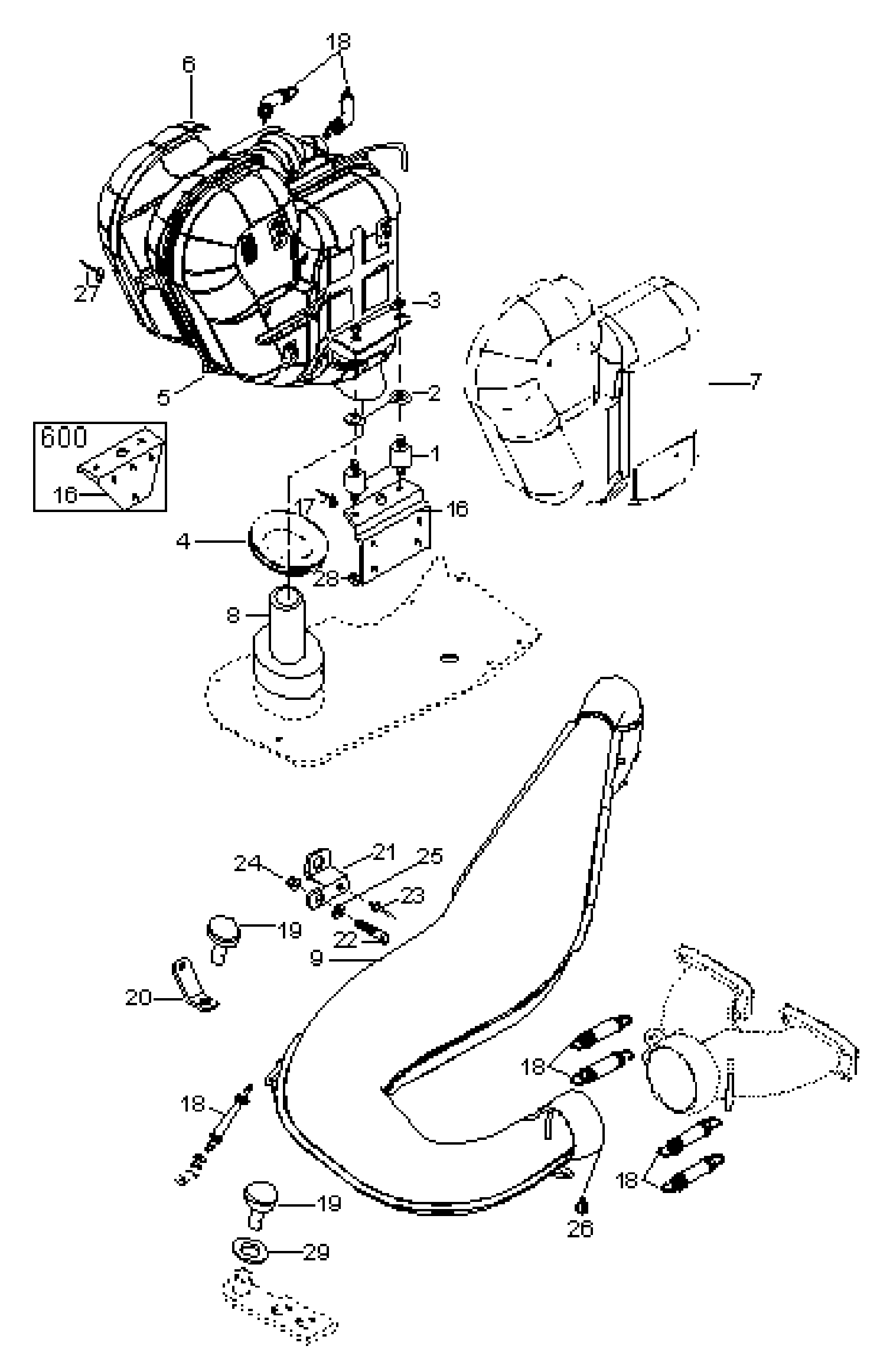

01- Muffler для BRP Lynx Racing - 2000
-
№АртикулНазвание
-
1514052889 Rubber damperRubber damper
-
220010 WasherWasher
-
333011 Nut elastic M8Nut elastic M8
-
4570039000 Rubber for grommetRubber for grommet
-
5514052925 After mufflerAfter muffler
-
6514051700 Deflector R.H.Deflector R.H.
-
7514052960 Deflector L.H.Deflector L.H.
-
85346136 Extension Tube Weld.Extension Tube Weld.
-
9514052864 Tune pipe. Includes items 9 thru 15Tune pipe. Includes items 9 thru 15
-
10514052938 Cover, upperCover, upper
-
11514052985 Cover lowerCover lower
-
12514052940 IsolationIsolation
-
13514052860 ClampClamp
-
14514052861 ClampClamp
-
15514052983 ClampClamp
-
165446124 Support, after mufflerSupport, after muffler
-
1736489 RivetRivet
-
18415107100 SpringSpring
-
19570048700 Rubber damperRubber damper
-
205346198 Support, mufflerSupport, muffler
-
215346197 Support, mufflerSupport, muffler
-
2240228 Screw M10x16Screw M10x16
-
2336036 RivetRivet
-
2433012 Nut M10Nut M10
-
2520005 WasherWasher
-
26413710300 Loctite 17914Loctite 17914
-
2833201 Nut elastic M8Nut elastic M8
