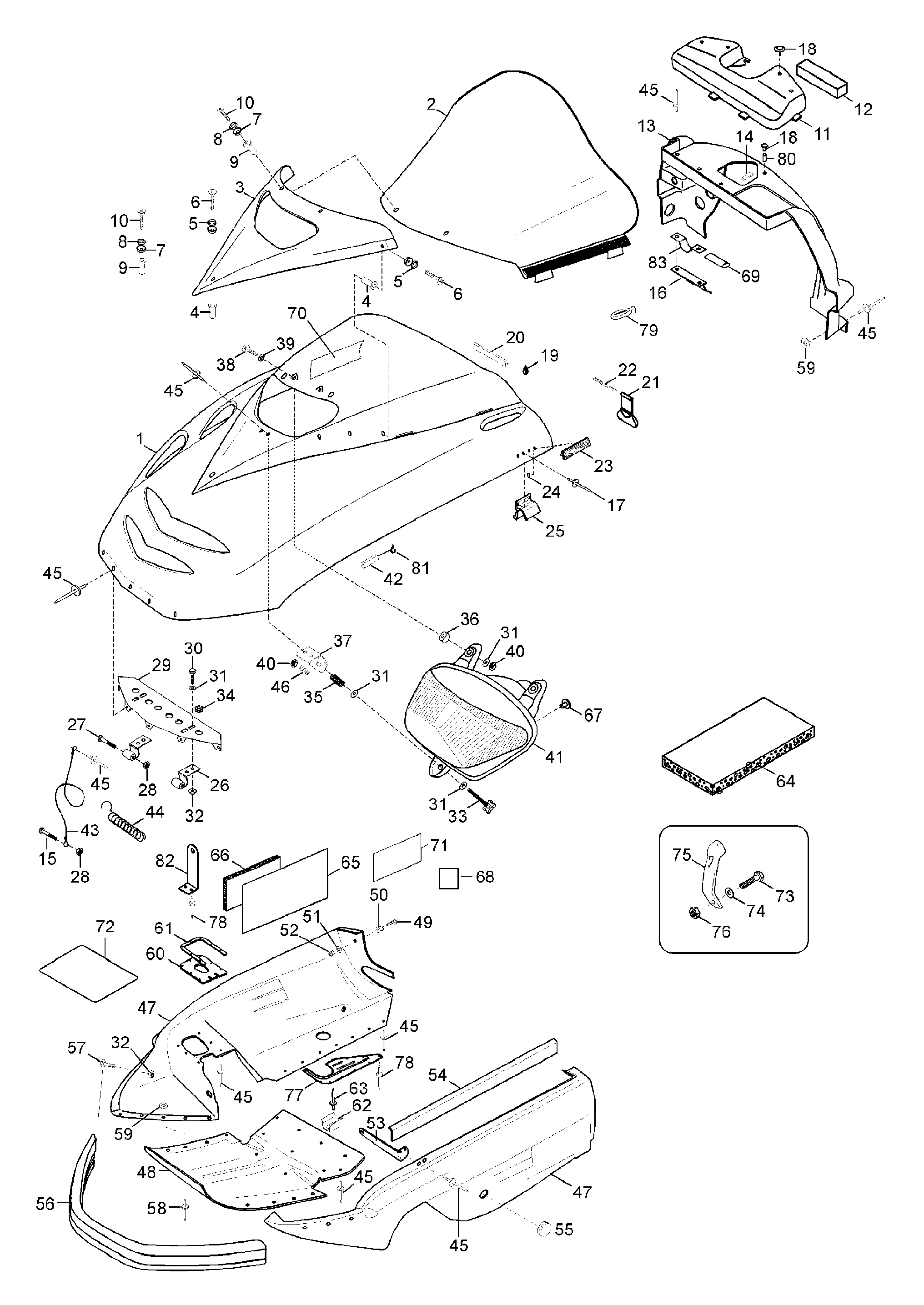

09- Hood для BRP Lynx Racing - 2000
-
№АртикулНазвание
-
15145407 Hood blackHood black
-
25143618 WindshieldWindshield
-
35241479 Cover of lampCover of lamp
-
428051 Well-NutWell-Nut
-
5282001 CoverCover
-
640163 Slot screwSlot screw
-
7282002 Screw bottomScrew bottom
-
8282003 Screw coverScrew cover
-
928050 Well-NutWell-Nut
-
1040179 Slot screwSlot screw
-
115343385 Intake coverIntake cover
-
125343389 FoamFoam
-
135144790 Rear hoodRear hood
-
1428413 Sealing listSealing list
-
1540247 Screw M5x16Screw M5x16
-
165343015 Bracket, consoleBracket, console
-
1736009 RivetRivet
-
18414644300 Dart-windshieldDart-windshield
-
205442148 Rubber ribbonRubber ribbon
-
21547233 Pull rubberPull rubber
-
2241011 Spring PinSpring Pin
-
2321131 Reflector, yellowReflector, yellow
-
2441034 Push nutPush nut
-
255441542 GuideGuide
-
265440164 Hinge weld.Hinge weld.
-
2740235 Screw M5x35Screw M5x35
-
2833009 Nut elastic M5Nut elastic M5
-
295241372 Retainer of hingeRetainer of hinge
-
3040030 Screw M6x20Screw M6x20
-
3120009 WasherWasher
-
3233200 Nut M6Nut M6
-
3340342 Adjuster screwAdjuster screw
-
3428022 GrommetGrommet
-
3525010 SpringSpring
-
3628032 GrommetGrommet
-
375443909 Head lamp supportHead lamp support
-
3840833 ScrewScrew
-
3920007 WasherWasher
-
4033010 Nut elastic M6Nut elastic M6
-
4142301 Headlamp AssyHeadlamp Assy
-
425441964 TrimTrim
-
435441558 Retainer CableRetainer Cable
-
442505171211 SpringSpring
-
4536036 RivetRivet
-
4633066 NutNut
-
475144815 Bottom pan, R.H.Bottom pan, R.H.
-
475144816 Bottom pan, L.H.Bottom pan, L.H.
-
485142892 Bottom pan, middleBottom pan, middle
-
4940168 Slot screwSlot screw
-
50542307 Counter rollCounter roll
-
5120037 WasherWasher
-
5233008 Nut elastic M4Nut elastic M4
-
535343856 Bracket R.H.Bracket R.H.
-
535343855 Bracket L.H.Bracket L.H.
-
54537206 SupportSupport
-
55570277300 CapCap
-
565241557 BumperBumper
-
5740031 Screw M6x25Screw M6x25
-
5836037 RivetRivet
-
5920008 WasherWasher
-
605342198 GrommetGrommet
-
615342199 PlatePlate
-
625342387 GuideGuide
-
6336083 RivetRivet
-
64414632400 Foam (74'’x34'’x1/2)Foam (74'’x34'’x1/2)
-
655344985 Reflector tapeReflector tape
-
665342419 Heat Shield R.H.Heat Shield R.H.
-
665343588 Heat Shield L.H.Heat Shield L.H.
-
6728136 PluggPlugg
-
6939026 Rubber tubingRubber tubing
-
725344985 Al-tapeAl-tape
-
7340170 Screw M5x20Screw M5x20
-
7420008 WasherWasher
-
75570027100 Hood latchHood latch
-
7633009 Nut elastic M5Nut elastic M5
-
775344050 Chain Case ProtectorChain Case Protector
-
7836072 RivetRivet
-
79570023800 LatchLatch
-
805443985 Rubber sleeveRubber sleeve
-
8132045 Loctite 406Loctite 406
-
825445031 Front supportFront support
-
835444001 SupportSupport
