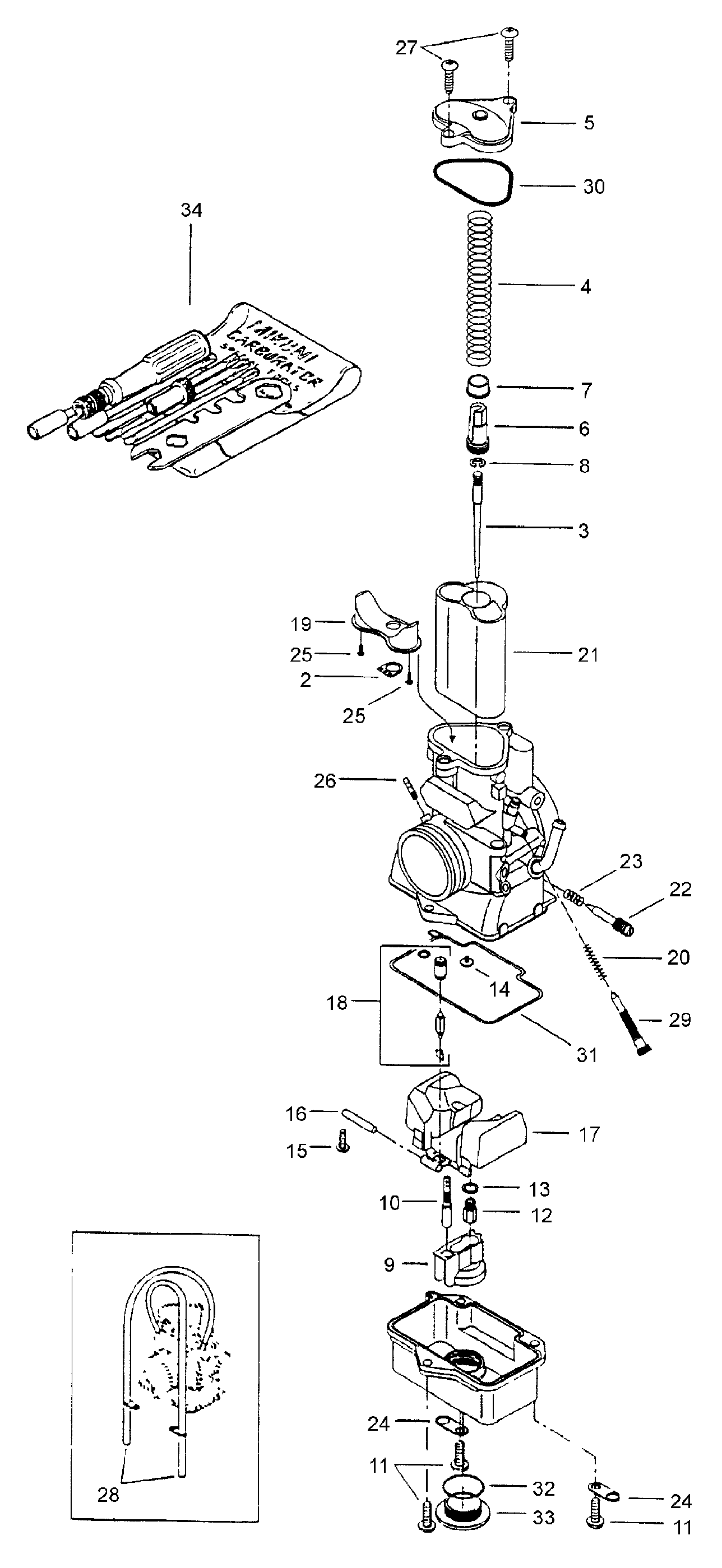

02- Carburetor для BRP Lynx Racing - 2000
-
№АртикулНазвание
-
2404161865 PackingPacking
-
3190004 Jet needle 6F1Y4-59-3Jet needle 6F1Y4-59-3
-
4404161864 SpringSpring
-
5404161857 CoverCover
-
6404161856 Guide holderGuide holder
-
7404161863 RingRing
-
8404152200 E-ringE-ring
-
9404161855 HolderHolder
-
10190005 Pilot jet 40Pilot jet 40
-
11404161848 ScrewScrew
-
12404104900 Main jet 340Main jet 340
-
13404161862 WasherWasher
-
14404161861 ScrewScrew
-
15404138600 ScrewScrew
-
16404161860 Float arm pinFloat arm pin
-
17404161859 FloatFloat
-
18404161868 Needle valve 1,5VNeedle valve 1,5V
-
19404161854 VenturyVentury
-
20404161849 SpringSpring
-
21404161867 Piston valve 4.0Piston valve 4.0
-
22404161866 AdjusterAdjuster
-
23404132400 SpringSpring
-
24404103000 Tube retainer plateTube retainer plate
-
25404161852 ScrewScrew
-
26404153400 NippleNipple
-
27404138700 ScrewScrew
-
28404161851 Vent tubeVent tube
-
29404161850 AdjusterAdjuster
-
34404112000 Tool kitTool kit
