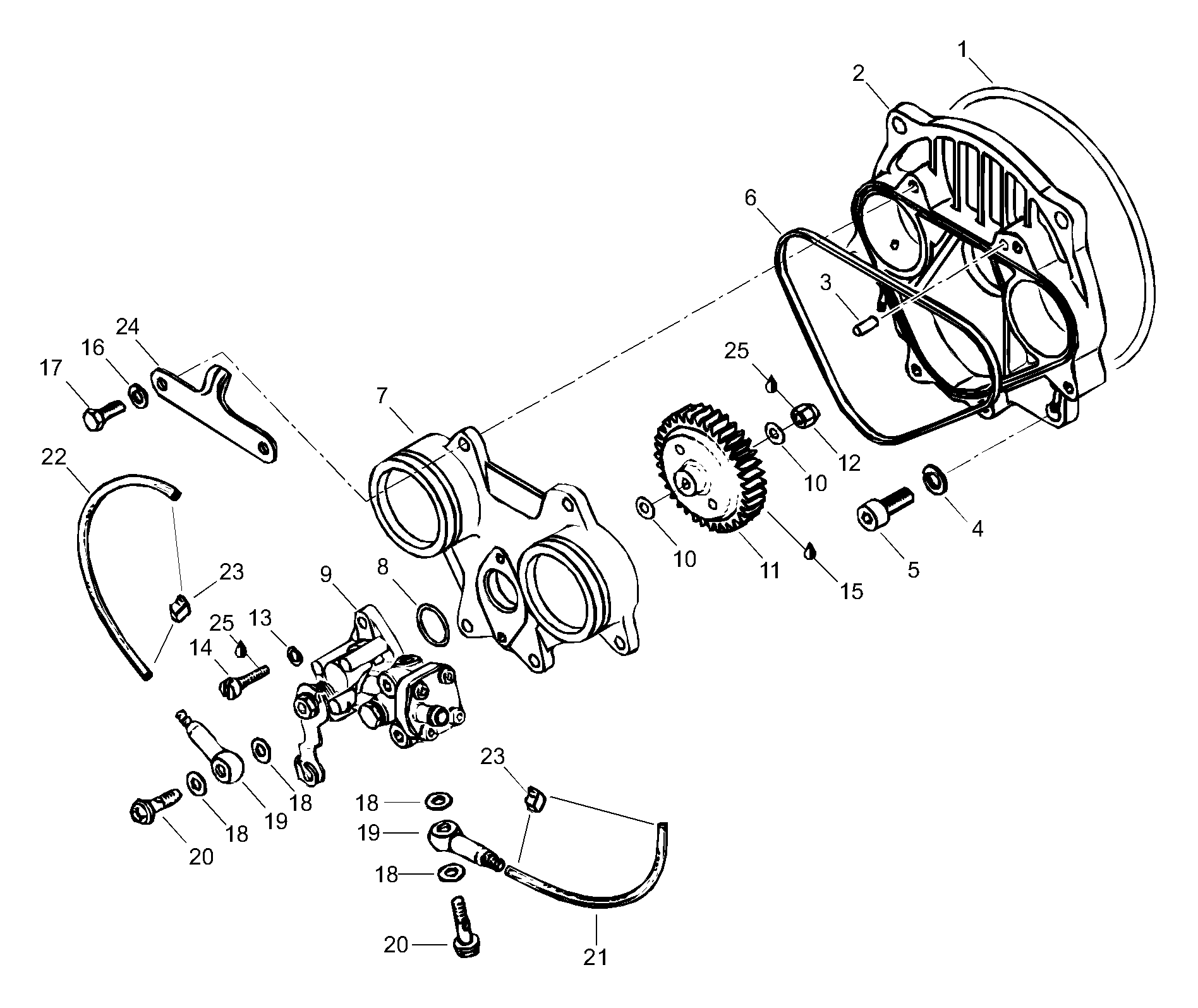

01- Oil Pump для BRP Lynx Touring 500 LC - 2000
-
№АртикулНазвание
-
1420831360 O-ringO-ring
-
2420810486 Rotary alve cover assy. Includes items 2 thru 3Rotary alve cover assy. Includes items 2 thru 3
-
3420929650 PinPin
-
4420945752 WasherWasher
-
5420240071 Allen screw M8x20Allen screw M8x20
-
6420831707 Rubber ringRubber ring
-
7420810490 Pump mounting flangePump mounting flange
-
8420230370 O-ringO-ring
-
9420887930 Oil pump, assyOil pump, assy
-
10420927945 WasherWasher
-
11420935945 Gear, Z-41Gear, Z-41
-
12420842040 Lock nut M6Lock nut M6
-
13420945750 Spring washerSpring washer
-
14420240761 Screw M5x16Screw M5x16
-
15413707000 Molykote 111Molykote 111
-
16420945751 Spring washerSpring washer
-
17420940561 Screw M6x20Screw M6x20
-
18420227500 Gasket ringGasket ring
-
19420956010 Check valve assyCheck valve assy
-
20420241830 Banjo boltBanjo bolt
-
21420860232 Oil line, 80mmOil line, 80mm
-
22420960041 Oil line, 100mmOil line, 100mm
-
23420853840 Clamp, 3-5 mmClamp, 3-5 mm
-
24420851340 Intake silencer plateIntake silencer plate
-
25413703000 Loctite 242, 10mlLoctite 242, 10ml
