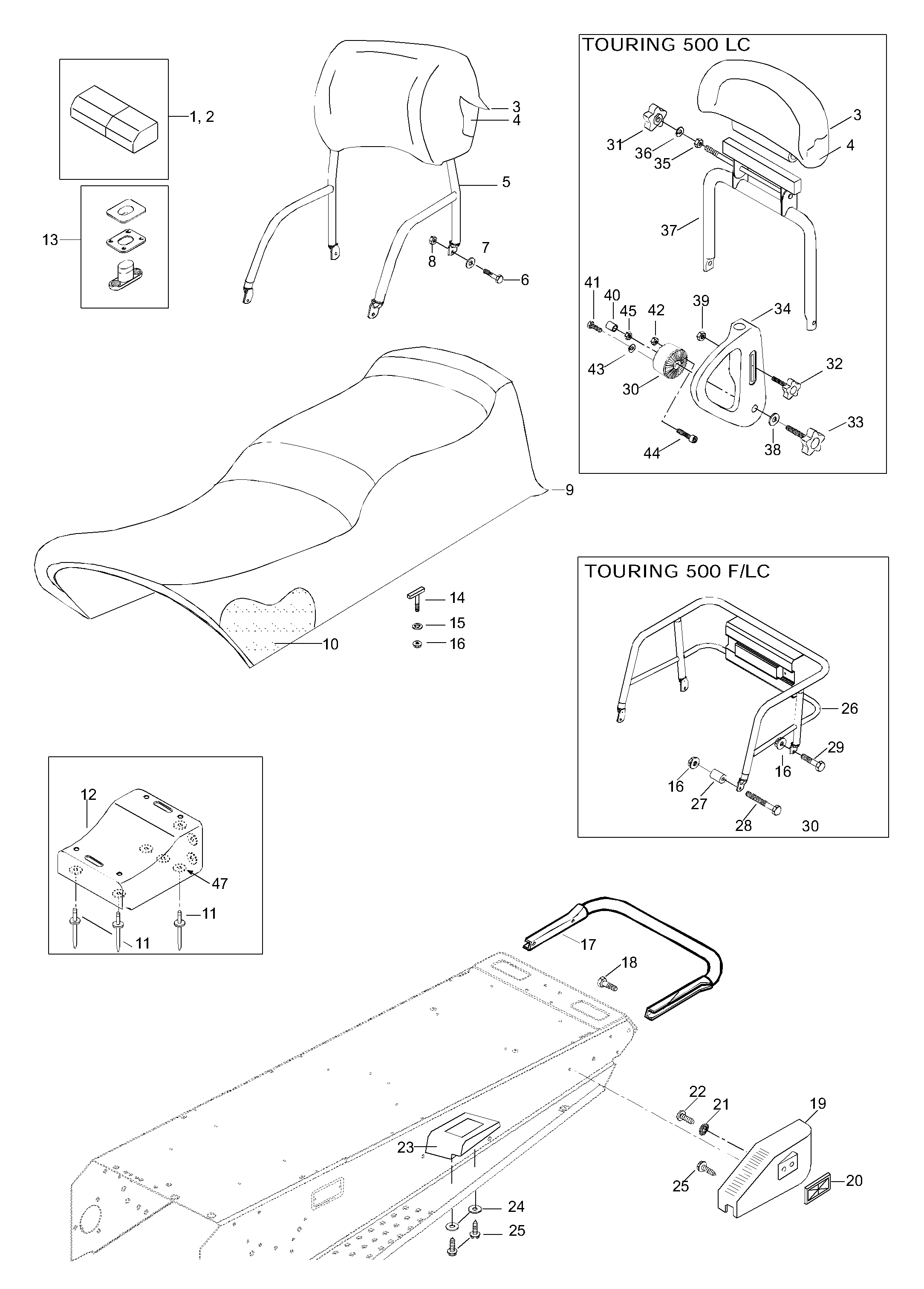

09- Body для BRP Lynx Touring 500 LC - 2000
-
№АртикулНазвание
-
15445403 Tool box (with tools)Tool box (with tools)
-
2572036310 Tool boxTool box
-
3510003780 Back rest coverBack rest cover
-
4510003779 Back rest stoppningBack rest stoppning
-
95245232 Seat coverSeat cover
-
10415038202 Seat foamSeat foam
-
1136036 RivetRivet
-
12572051200 Rear trunkRear trunk
-
1328354 Seat BuckleSeat Buckle
-
14732601221 T-screwT-screw
-
15732610072 Nut pushNut push
-
1633200 Nut elastic M6Nut elastic M6
-
17517243800 Rear bumperRear bumper
-
1840336 Screw M8x20Screw M8x20
-
19572059400 L.H. moldingL.H. molding
-
19580643000 R.H. molding assy. Includes items 19 thru 22R.H. molding assy. Includes items 19 thru 22
-
19580643100 L.H. molding assy. Includes items 19 thru 22L.H. molding assy. Includes items 19 thru 22
-
19572059500 R.H. moldingR.H. molding
-
20414510200 Reflector, yellowReflector, yellow
-
2120018 WasherWasher
-
2240070 Screw M5x10Screw M5x10
-
23572088700 R.H. footrestR.H. footrest
-
23572088800 L.H. footrestL.H. footrest
-
24224061121 WasherWasher
-
2540870 ScrewScrew
-
265245925 RackRack
-
27517185600 SleeveSleeve
-
2840002 Screw M6x40Screw M6x40
-
2940865 Screw M6x18Screw M6x18
-
30510003707 PivotPivot
-
31510003532 Female handleFemale handle
-
32510003533 Male handleMale handle
-
33510003534 Male handleMale handle
-
34510003607 L.H. armL.H. arm
-
34510003542 R.H. armR.H. arm
-
35510003578 Nut M8Nut M8
-
36510003584 Lock washerLock washer
-
38732900050 WasherWasher
-
39510003576 Nut M8Nut M8
-
4039059 HoseHose
-
4140037 Screw M8x25Screw M8x25
-
4233011 Nut elastic M8Nut elastic M8
-
4320111 Lock washerLock washer
-
4440851 Allen screw M8x50Allen screw M8x50
-
4533083 Nut elastic M12Nut elastic M12
-
47234051410 WasherWasher
