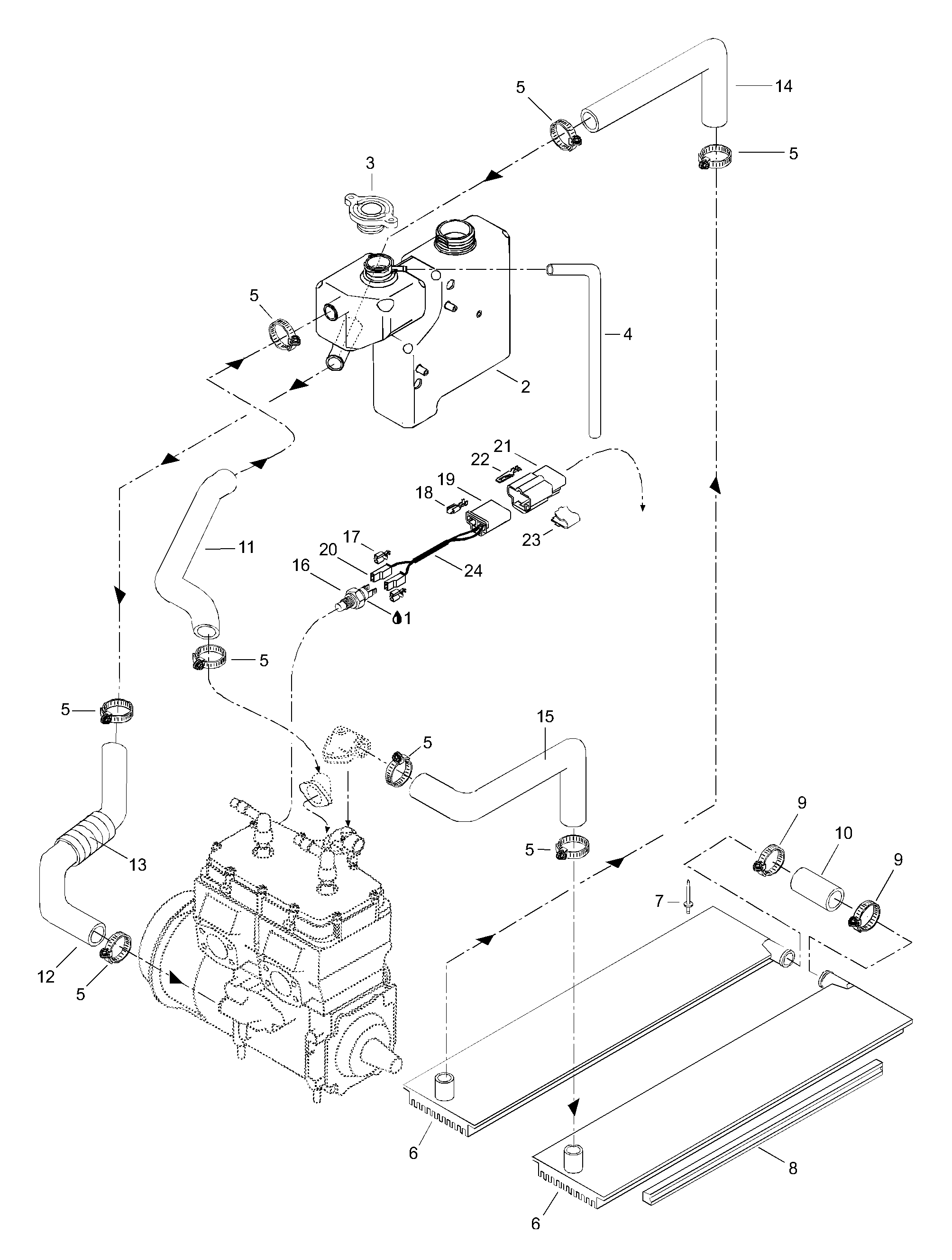

01- Radiator, Hoses для BRP Lynx Touring 500 LC - 2000
-
№АртикулНазвание
-
1293800018 Loctite 592, 50mlLoctite 592, 50ml
-
2519000014 Coolant tankCoolant tank
-
3414684700 Pressure capPressure cap
-
439038 Owerflow hoseOwerflow hose
-
5408800400 ClampClamp
-
6517290600 R.H. radiatorR.H. radiator
-
6517290601 L.H. radiatorL.H. radiator
-
8415012300 Radiator protectorRadiator protector
-
9408803400 ClampClamp
-
10414795800 Radiator hoseRadiator hose
-
11414972900 Engine outlet hoseEngine outlet hose
-
12415010400 Engine inlet hoseEngine inlet hose
-
1328026 TubingTubing
-
14414973000 Radiator outlet hoseRadiator outlet hose
-
15415028000 Radiator inlet hoseRadiator inlet hose
-
16512047000 Sender temperatureSender temperature
-
17409010100 Female terminalFemale terminal
-
18561503200 Female terminalFemale terminal
-
19409008500 Cojnnector housingCojnnector housing
-
20409010400 Cojnnector housingCojnnector housing
-
21409008600 Cojnnector housingCojnnector housing
-
22409206100 Male terminalMale terminal
-
23409205600 ClipClip
