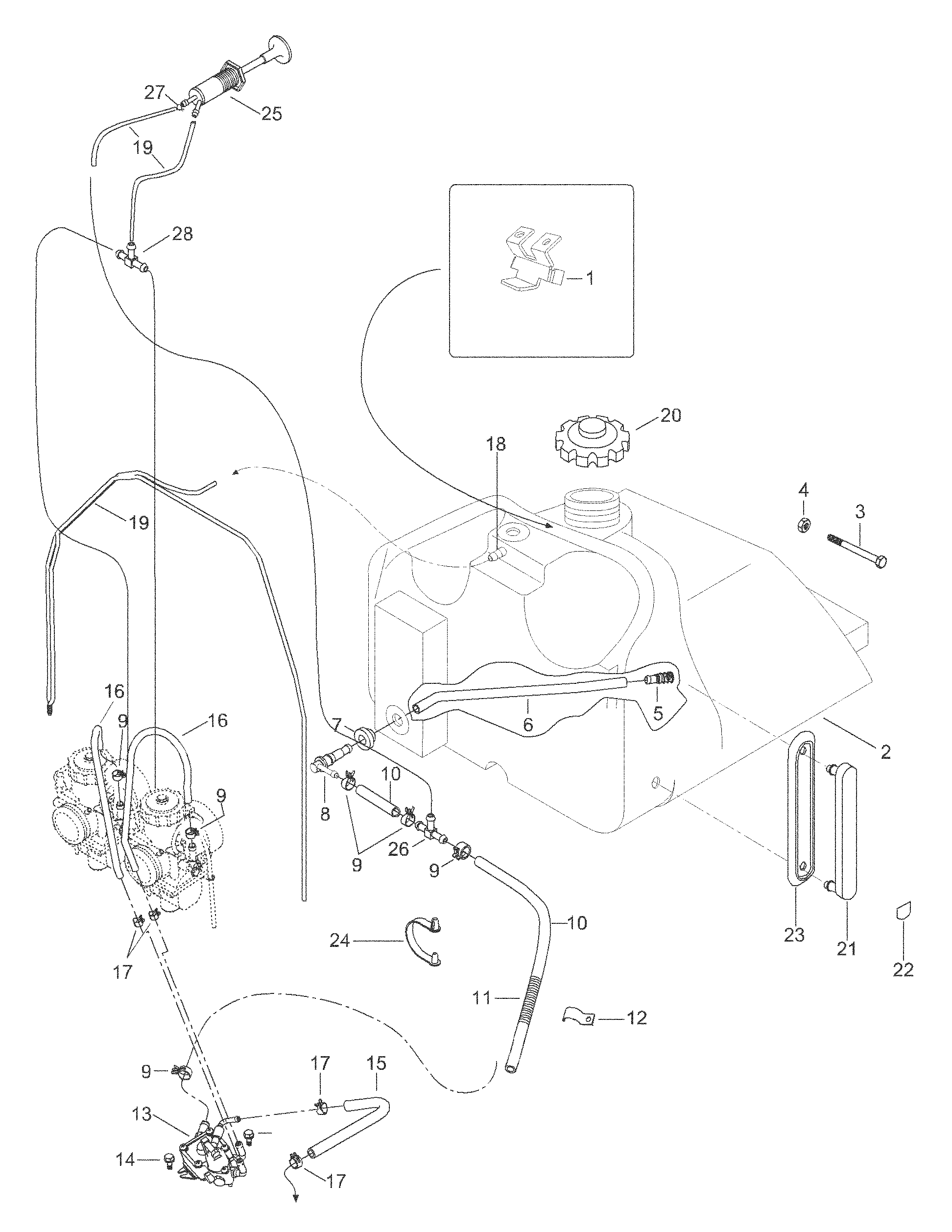

02- Fuel Tank для BRP Lynx Enduro 400 F - 2001
-
№АртикулНазвание
-
15346937 BracketBracket
-
25146941 Fuel tankFuel tank
-
340002 Screw M6x40Screw M6x40
-
433200 Elastic flanged nut M6Elastic flanged nut M6
-
5414872100 Fuel filterFuel filter
-
639048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
728037 GrommetGrommet
-
85341709 Angle adapterAngle adapter
-
9414554800 ClampClamp
-
1039004 Fuel line 8/5Fuel line 8/5
-
1128012 TubingTubing
-
12415018200 ClipClip
-
13403801000 Fuel pumpFuel pump
-
1440322 Screw M6x16Screw M6x16
-
1539001 Fuel line 11/6Fuel line 11/6
-
1639060 Fuel line 8/5,5Fuel line 8/5,5
-
17414420700 ClampClamp
-
18404153400 NippleNipple
-
1939035 Hose 5/3Hose 5/3
-
20580259400 Fuel tank capFuel tank cap
-
21572015900 Fuel gaugeFuel gauge
-
22549200 Fuel labelFuel label
-
23570018000 Housing gaugeHousing gauge
-
24414379300 Cable clipCable clip
-
25415060500 PrimerPrimer
-
2621062 T-fittingT-fitting
-
27543230 ClampClamp
-
2821067 T-fittingT-fitting
