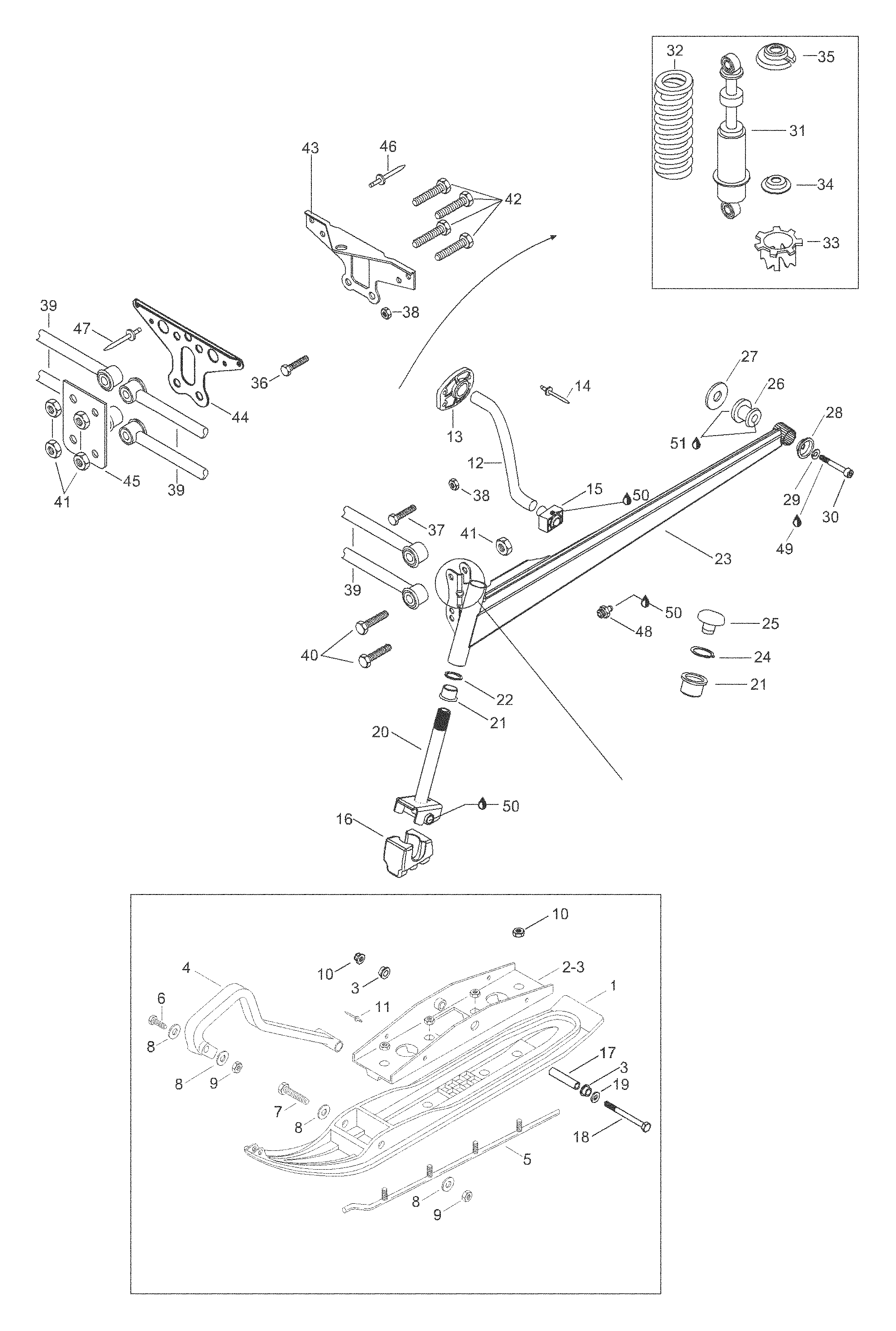

08- Front Suspension для BRP Lynx Enduro 400 F - 2001
-
№АртикулНазвание
-
1505070190 Flexible ski linerFlexible ski liner
-
2505070055 Bridge assy. Includes items 2 thru 3Bridge assy. Includes items 2 thru 3
-
3505070001 SleeveSleeve
-
4572101000 Plastic handlePlastic handle
-
5860501900 Runner carbide assyRunner carbide assy
-
640009 Screw M8x50Screw M8x50
-
740869 Screw M8x100Screw M8x100
-
820004 WasherWasher
-
933011 Nut elastic M8Nut elastic M8
-
1033074 Nut M10Nut M10
-
11390911100 RivetRivet
-
12505070490 StabilisatorStabilisator
-
13505070533 BushingBushing
-
14390402300 RivetRivet
-
15505070531 Block slidingBlock sliding
-
16506151233 Ski stopperSki stopper
-
17506133300 SleeveSleeve
-
1840814 Screw M10x110Screw M10x110
-
1920105 WasherWasher
-
20506151234 Ski legSki leg
-
21505070003 SleeveSleeve
-
22505070004 WasherWasher
-
23505070378 R.H. swing armR.H. swing arm
-
23505070379 L.H. swing armL.H. swing arm
-
24371910400 CirclipCirclip
-
25572091300 CapCap
-
26570062200 Rubber damperRubber damper
-
27503146700 WasherWasher
-
28506115800 Cup washerCup washer
-
2920014 Spring washerSpring washer
-
3040289 Allen screw M8x25Allen screw M8x25
-
31505070015 ShockShock
-
32414976100 SpringSpring
-
33503183700 Adjuster ring(cam)Adjuster ring(cam)
-
34503187500 Spring guideSpring guide
-
35503140600 Spring stopperSpring stopper
-
3640019 Screw M10x60Screw M10x60
-
3740018 Screw M10x55Screw M10x55
-
3833082 Nut elastic M10Nut elastic M10
-
39580649700 ArmArm
-
40401250 Screw M12x50Screw M12x50
-
4133013 Nut elastic M12Nut elastic M12
-
4240023 Screw M10x100Screw M10x100
-
43517254900 Rear link plateRear link plate
-
44517254800 Front link plateFront link plate
-
45518306700 SupportSupport
-
46390909200 RivetRivet
-
4736070 RivetRivet
-
4834011 Crease nippleCrease nipple
-
49293800060 Loctite 243, 10mlLoctite 243, 10ml
-
50413711500 Synthetic greaseSynthetic grease
-
51293550014 GreaseGrease
