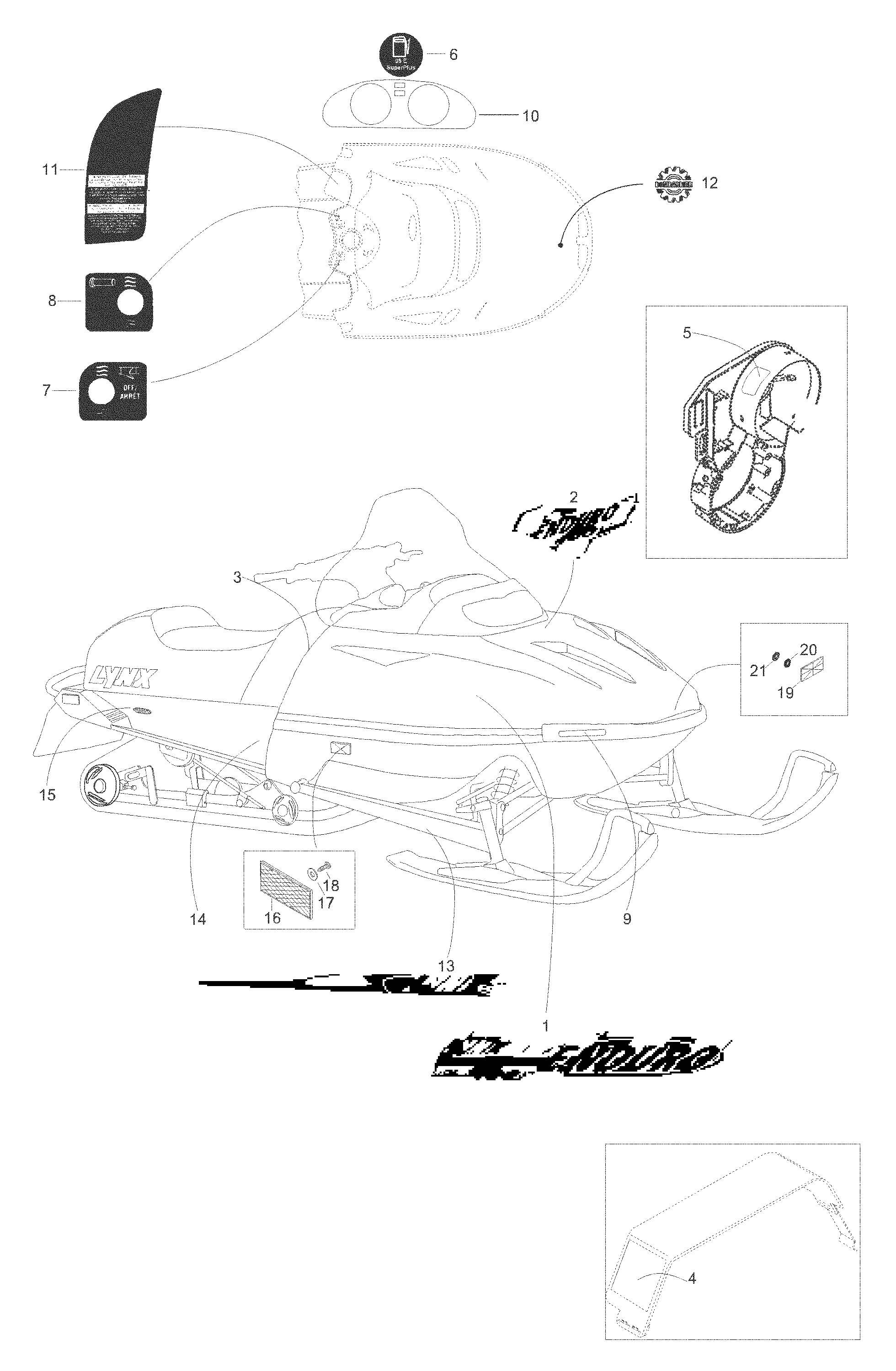

09- Equipment для BRP Lynx Enduro 400 F - 2001
-
№АртикулНазвание
-
5146559 Hood decal kit (incl. decals 1 and 2)Hood decal kit (incl. decals 1 and 2)
-
5143327 Instruction decals (incl. decals 7, 8 and 12)Instruction decals (incl. decals 7, 8 and 12)
-
15346452 R.H. hood decalR.H. hood decal
-
15346451 L.H. hood decalL.H. hood decal
-
25346453 Front hood decalFront hood decal
-
3544068 Oil check decalOil check decal
-
4546820 Instruction labelInstruction label
-
5544073 Fan Belt DecalFan Belt Decal
-
65447019 Fuel labelFuel label
-
7414898400 Heat thumb decalHeat thumb decal
-
8414898500 Dash decalDash decal
-
9418001009 Reflector decalReflector decal
-
105347037 Dash dekalDash dekal
-
11414969800 Warning decalWarning decal
-
12516000983 Logo BombardierLogo Bombardier
-
135346455 Swing Arm Decal L.H.Swing Arm Decal L.H.
-
135346454 Swing Arm Decal R.H.Swing Arm Decal R.H.
-
145445636 CE-decalCE-decal
-
1521121 ReflectorReflector
-
16414510200 Reflector, yellowReflector, yellow
-
1720018 WasherWasher
-
1840070 ScrewScrew
-
1921148 Reflector, WhiteReflector, White
-
2048227 O-ringO-ring
-
2141034 Locking ringLocking ring
Все узлы модели:
- 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- Engine Mount Plate/Muffler
- 01- Fan Housing
- 01- Oil Pump
- 01- Oil Tank
- 02- Carburetor
- 02- Fuel Tank
- 03- Fly Wheel
- 04- Rewind Starter
- 05- Chaincase
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Rear Suspension
- 09- Body
- • 09- Equipment
- 09- Frame
- 09- Hood
- 10- Electric
- 11- Accessories
