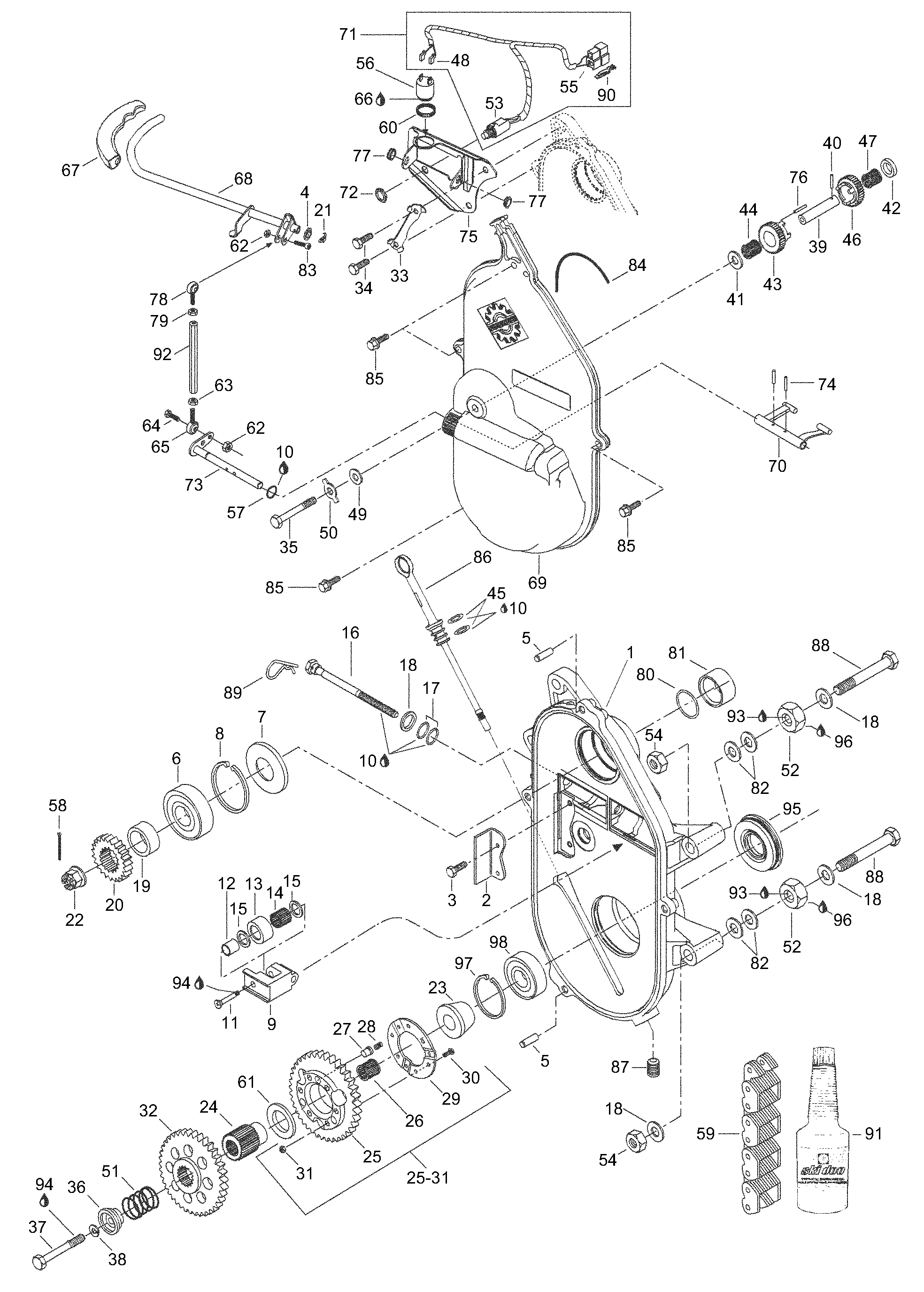

05- Chaincase для BRP Lynx Super Touring 600 - 2001
-
№АртикулНазвание
-
1504151776 ChaincaseChaincase
-
2504152036 Chain sliderChain slider
-
3210251180 Screw M5x11Screw M5x11
-
4503189264 WasherWasher
-
5732620001 Cylinder pinCylinder pin
-
6405404400 Ball bearing 6205Ball bearing 6205
-
7415049300 Oil sealOil seal
-
8371901700 CirclipCirclip
-
9504151951 Chain tensionerChain tensioner
-
10413711500 Synthetic greaseSynthetic grease
-
11732601144 ScrewScrew
-
12504080200 BushingBushing
-
13414531300 RollerRoller
-
14405403000 Needle bearingNeedle bearing
-
15504080300 WasherWasher
-
16732601314 Adjustment screwAdjustment screw
-
17414484400 O-ringO-ring
-
1820005 WasherWasher
-
19504147200 ShimShim
-
20504085400 Sprocket, 23 toothSprocket, 23 tooth
-
21371800800 PinPin
-
22732610012 NutNut
-
23504076300 Trust bushingTrust bushing
-
24504097700 Coupling shaftCoupling shaft
-
25581096800 Sprocket, 44 tooth. Includes items 25 thru 31Sprocket, 44 tooth. Includes items 25 thru 31
-
26414772600 Needle bearingNeedle bearing
-
27504076800 Drive pinDrive pin
-
28414772700 SpringSpring
-
29504076300 Retaining ringRetaining ring
-
30207152044 Screw M5x20Screw M5x20
-
31228451046 Nut M5Nut M5
-
32504096800 Gear, 56 toothGear, 56 tooth
-
33507029900 Locking tabLocking tab
-
34207103544 Screw M10x35Screw M10x35
-
3540090 Screw M8x90Screw M8x90
-
36504151964 CapCap
-
3740017 Screw M10x50Screw M10x50
-
3820068 Lock washerLock washer
-
39504083100 Reverse shaftReverse shaft
-
40732804003 Spring pinSpring pin
-
41504077300 Trust washerTrust washer
-
42504078700 Trust ringTrust ring
-
43581122200 Sprocket assy. Includes items 43 thru 44Sprocket assy. Includes items 43 thru 44
-
44414805000 Needle bearingNeedle bearing
-
45414969400 O-ringO-ring
-
46581096900 Sprocket assy. Includes items 46 thru 47Sprocket assy. Includes items 46 thru 47
-
47414773100 Needle bearingNeedle bearing
-
48409010300 Female terminalFemale terminal
-
4920022 WasherWasher
-
50504087700 Lock tabLock tab
-
51504096600 SpringSpring
-
52504083800 SpacerSpacer
-
53515175317 SwitchSwitch
-
5433012 Nut elastic M10Nut elastic M10
-
5542608 Male terminal housingMale terminal housing
-
56414792102 DC hornDC horn
-
57414773200 O-ringO-ring
-
5841003 Cotter pinCotter pin
-
59504151857 Drive chain, 74 linksDrive chain, 74 links
-
60414805101 Plastic nutPlastic nut
-
61504094300 WasherWasher
-
6233010 Nut elastic M6Nut elastic M6
-
6333002 Nut M6Nut M6
-
6440030 Screw M6x20Screw M6x20
-
65414773500 Ball jointBall joint
-
66293800033 Silicone sealantSilicone sealant
-
67570064600 GripGrip
-
68504151810 Handle weldHandle weld
-
69504151845 Cover chaincaseCover chaincase
-
70504075800 ForkFork
-
715446921 SwitchSwitch
-
72250100012 Nut M12Nut M12
-
73504151806 Fork axleFork axle
-
7441007 Spring pinSpring pin
-
75504151823 Reverse supportReverse support
-
76570048600 Alignment rodAlignment rod
-
77504151818 Flanged bushingFlanged bushing
-
78414773400 Ball jointBall joint
-
7933015 Nut M6Nut M6
-
80414876700 O-ringO-ring
-
81507031500 SpacerSpacer
-
82504073700 ShimShim
-
8340052 Allen screw M6x20Allen screw M6x20
-
84415046400 SealSeal
-
8540340 S. T. screw M6x16S. T. screw M6x16
-
86504151703 Filler capFiller cap
-
87504151921 PlugPlug
-
8840190 Screw M10x80Screw M10x80
-
89414575600 Hair pinHair pin
-
9042603 Male terminalMale terminal
-
91413803300 Chaincase oilChaincase oil
-
92504151814 Tie rodTie rod
-
93293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
94293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
95504151918 SealSeal
-
96293800023 Loctite 767, 454 gLoctite 767, 454 g
-
97415064300 CirclipCirclip
-
98405408500 BearingBearing
