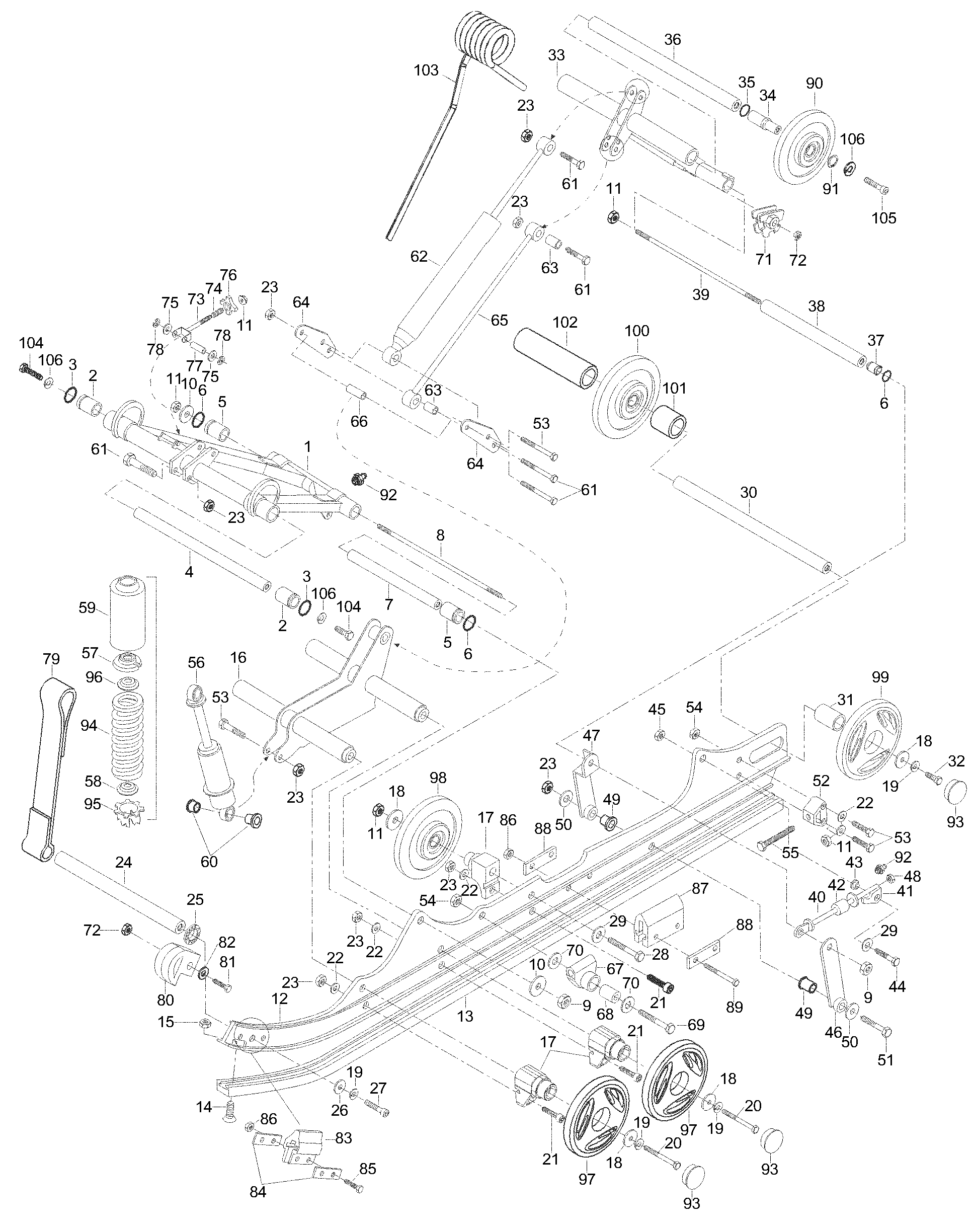

08- Rear Suspension для BRP Lynx Super Touring 600 - 2001
-
№АртикулНазвание
-
15244729 Front armFront arm
-
25441491 SleeveSleeve
-
328404 O-ringO-ring
-
45441492 Shaft l=393Shaft l=393
-
55441493 SleeveSleeve
-
628406 O-ringO-ring
-
75441494 SleeveSleeve
-
85441495 StudStud
-
933030 Lock nut M10Lock nut M10
-
10512056700 Lock waherLock waher
-
1133012 Nut elastic M10Nut elastic M10
-
125243150 RunnerRunner
-
135343151 Slider shoeSlider shoe
-
1440845 Allenscrew M6x25Allenscrew M6x25
-
1533010 Nut elastic M6Nut elastic M6
-
165244588 Shock SupportShock Support
-
17503189504 Wheel SupportWheel Support
-
18503183300 Washer, hardenedWasher, hardened
-
1920047 Lock washerLock washer
-
2040081 Screw M10x100Screw M10x100
-
2140289 Allen screw M8x25Allen screw M8x25
-
2220104 WasherWasher
-
2333011 Nut elastic M8Nut elastic M8
-
245441508 Shaft l=219Shaft l=219
-
254181158 KeeperKeeper
-
2631014 ShimShim
-
2740241 Allenscrew M10x30Allenscrew M10x30
-
2840226 Screw M10x80Screw M10x80
-
2920105 Washer, hardenedWasher, hardened
-
305346023 Rear Axle l=340Rear Axle l=340
-
315441512 SleeveSleeve
-
32250000019 Screw M10x35Screw M10x35
-
335243457 Welded Rear ArmWelded Rear Arm
-
345443535 SleeveSleeve
-
3528405 O-ringO-ring
-
365443767 Shaft l=310Shaft l=310
-
375441524 SleeveSleeve
-
385441525 SleeveSleeve
-
395441526 StudStud
-
405445575 GuardGuard
-
415445578 Sleeve R.H.Sleeve R.H.
-
415445579 Sleeve L.H.Sleeve L.H.
-
425445580 Rubber StopperRubber Stopper
-
435441533 SleeveSleeve
-
4440014 Screw M10x40Screw M10x40
-
4533074 Elastic flanged nut M10Elastic flanged nut M10
-
465443659 Space supportSpace support
-
475343435 Space support R.H.Space support R.H.
-
475343434 Space Support L.H.Space Support L.H.
-
4833013 Nut elastic M12Nut elastic M12
-
495441632 SleeveSleeve
-
5020078 WasherWasher
-
5140011 Screw M8x60Screw M8x60
-
525341633 LugLug
-
5340008 Screw M8x45Screw M8x45
-
5433201 Elastic flanged nut M8Elastic flanged nut M8
-
5540239 Screw M10x100Screw M10x100
-
5623226 Schok frontSchok front
-
57503140600 Spring stopperSpring stopper
-
58503141600 CapCap
-
59503188930 ProtectorProtector
-
605443753 SleeveSleeve
-
6140006 Screw M8x35Screw M8x35
-
6223227 Shock rearShock rear
-
63414802600 SleeveSleeve
-
645444671 LeverLever
-
645444670 LeverLever
-
655441795 Pull rodPull rod
-
665444713 SleeveSleeve
-
675442112 Spring RollerSpring Roller
-
685443387 SleeveSleeve
-
6940010 Screw M8x55Screw M8x55
-
7020010 WasherWasher
-
71572030800 Cam adjuster L.H.Cam adjuster L.H.
-
71572030900 Cam adjuster R.H.Cam adjuster R.H.
-
7233200 Nut M6Nut M6
-
735441643 Bracket weldBracket weld
-
74414460600 SpringSpring
-
7520005 WasherWasher
-
76572034000 Knob adjusterKnob adjuster
-
775441645 PinPin
-
7841035 CirclipCirclip
-
795442878 Stopper StrapStopper Strap
-
80534578 Front protectorFront protector
-
8140031 Screw M6x25Screw M6x25
-
8220003 WasherWasher
-
835442191 Rubber StopperRubber Stopper
-
845442192 Support plateSupport plate
-
8540231 Screw M5x30Screw M5x30
-
8633009 Nut elastic M5Nut elastic M5
-
87570023100 Rubber StopperRubber Stopper
-
88548387 Support plateSupport plate
-
8940128 Screw M5x40Screw M5x40
-
90572091400 Support wheel blackSupport wheel black
-
9131001 CirclipCirclip
-
9234011 Crease nippleCrease nipple
-
93570063600 Wheel capWheel cap
-
94415039600 SpringSpring
-
9523176001 Preload adjuster camPreload adjuster cam
-
9623177001 Plastic protector sleevePlastic protector sleeve
-
97503189411 Support wheel 135/greySupport wheel 135/grey
-
9846035 Idler wheel, blackIdler wheel, black
-
99503189374 Support wheel 165/greySupport wheel 165/grey
-
100503189478 Support wheelSupport wheel
-
1015444099 SleeveSleeve
-
1025441513 SleeveSleeve
-
1035341639 Spring R.H.Spring R.H.
-
1035341640 Spring L.H.Spring L.H.
-
10440341 Screw M10x75Screw M10x75
-
10540134 Allen screw M10x45Allen screw M10x45
-
10620068 Lock washerLock washer
