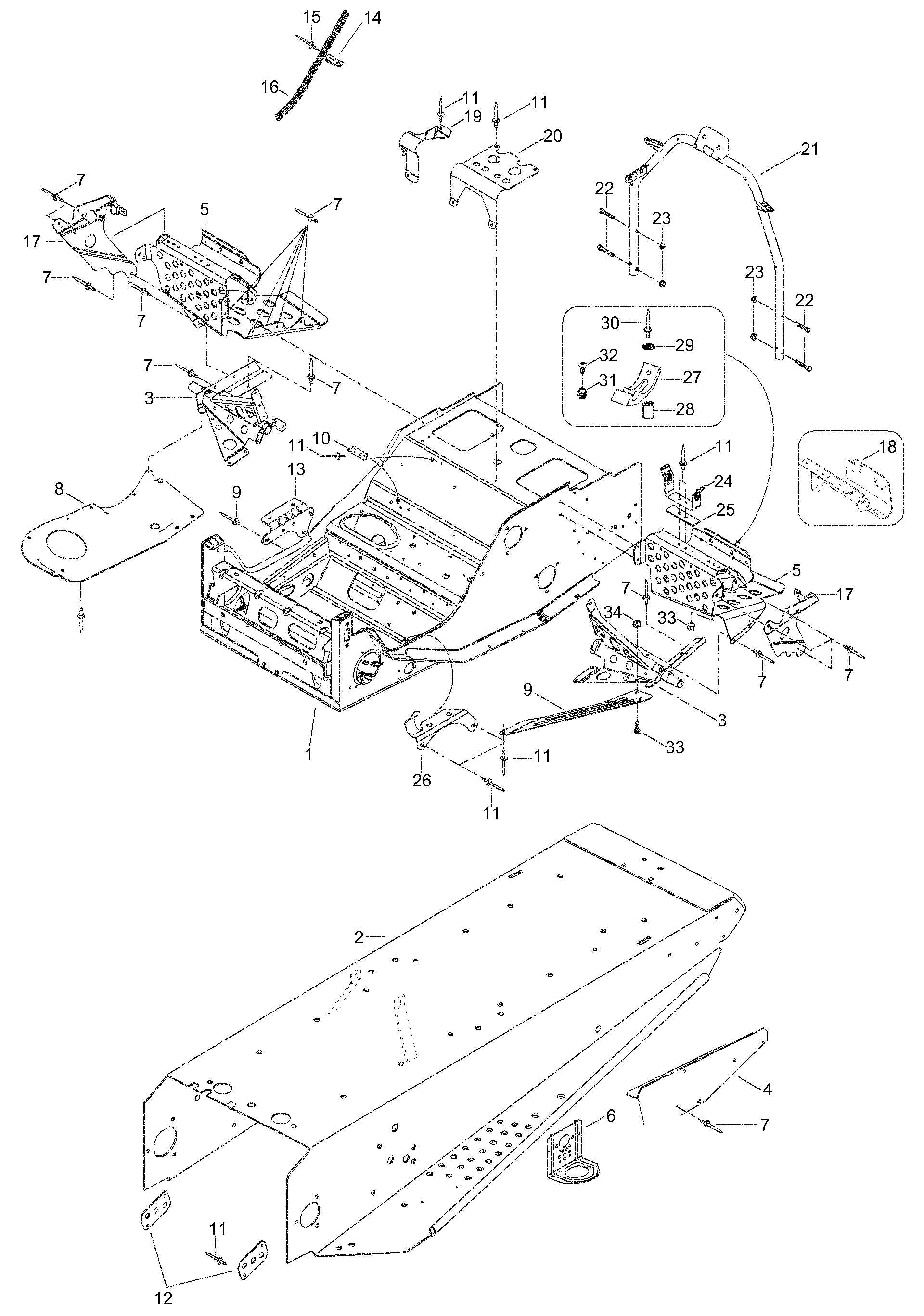

09- Frame для BRP Lynx Super Touring 600 - 2001
-
№АртикулНазвание
-
15146140 Frame assy. Includes items 1 thru 2Frame assy. Includes items 1 thru 2
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
45246630 R.H. side bracketR.H. side bracket
-
45246631 L.H. side bracketL.H. side bracket
-
55146822 R.H. front footrestR.H. front footrest
-
55146823 L.H. front footrestL.H. front footrest
-
6518321495 Rear bracketRear bracket
-
736083 RivetRivet
-
8518319760 R.H. bottom pan plateR.H. bottom pan plate
-
9518322119 L.H. reinf. plateL.H. reinf. plate
-
10518319728 Double bracketDouble bracket
-
1136489 RivetRivet
-
125446858 Front bracketFront bracket
-
13518206300 Muffler supportMuffler support
-
1427092 ClipClip
-
1536036 RivetRivet
-
16518321569 Rope guideRope guide
-
175146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
175146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
185146917 R.H. toe holdR.H. toe hold
-
185146918 L.H. toe holdL.H. toe hold
-
19518319762 Hose supportHose support
-
20518310400 Air intake supportAir intake support
-
21518321957 Handle steering supp.Handle steering supp.
-
2240003 Screw M6x35Screw M6x35
-
2333200 Nut M6Nut M6
-
24518202100 Pulley Guard bracketPulley Guard bracket
-
25518207500 ReinforcementReinforcement
-
26515175254 Cable supportCable support
-
27531955 LatchLatch
-
28543417 SleeveSleeve
-
29543392 WasherWasher
-
3036072 RivetRivet
-
31542307 Counter rollCounter roll
-
3240168 Screw M4x25Screw M4x25
-
3233008 Nut M4Nut M4
-
33207152044 Screw M5x20Screw M5x20
-
34233251414 Elastic flanged nut M5Elastic flanged nut M5
