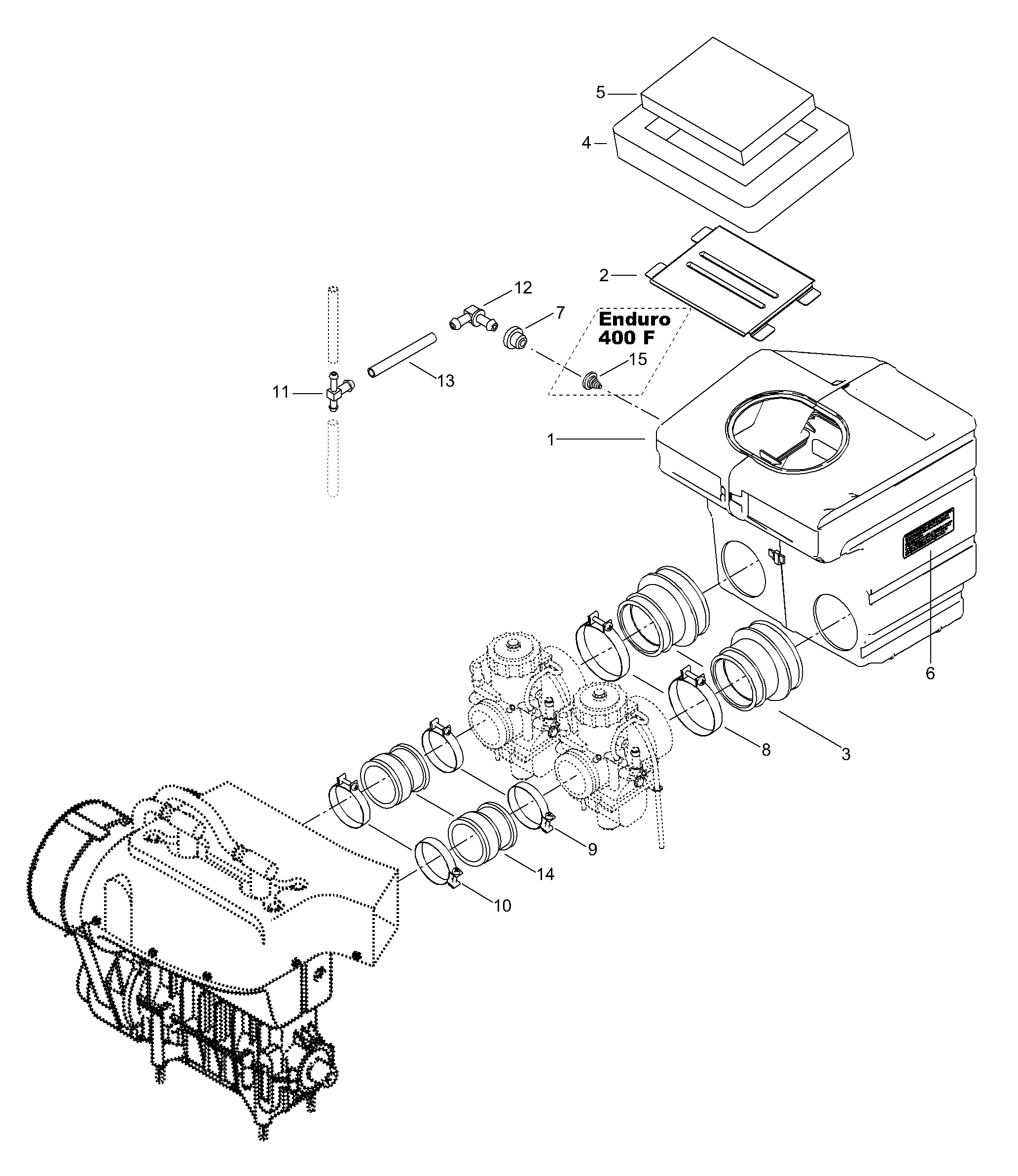

01- Air Silencer для BRP Lynx Enduro 500 F - 2002
-
№АртикулНазвание
-
1508000214 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000203 Intake adaptorIntake adaptor
-
4508000245 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8508000217 ClampClamp
-
9512059395 ClampClamp
-
10512059403 ClampClamp
-
11572045500 T-fittingT-fitting
-
12414580600 ConnectorConnector
-
1339038 Hose 6.5/9.5Hose 6.5/9.5
-
14512059396 Carburetor adaptorCarburetor adaptor
