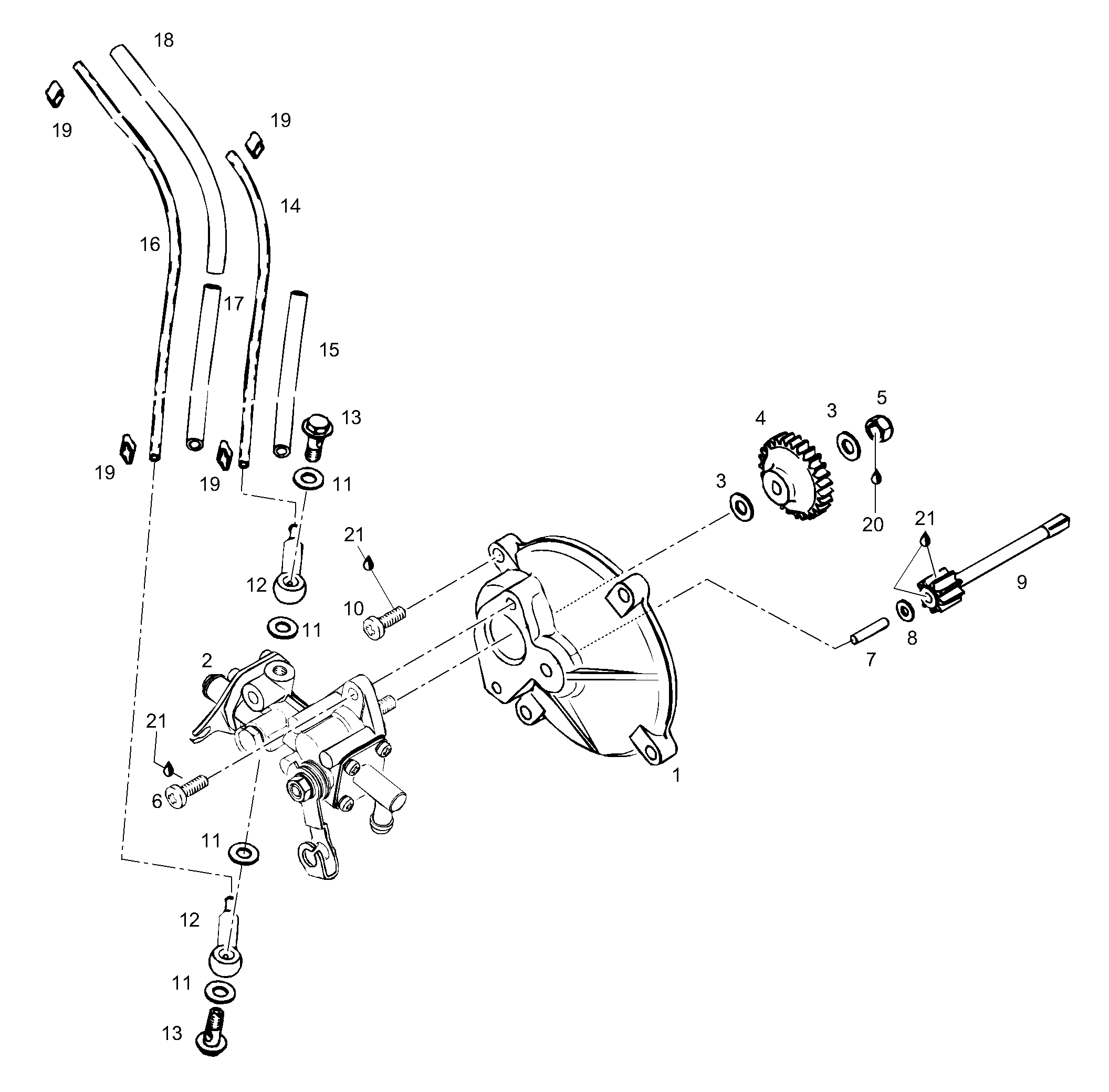

01- Oil Pump для BRP Lynx Enduro 500 F - 2002
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420887996 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841970 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841975 Screw M5.5x20Screw M5.5x20
-
11404146600 Gasket ringGasket ring
-
12420956010 Chock valve assyChock valve assy
-
13404146800 Banjo boltBanjo bolt
-
14414413800 Oil lineOil line
-
15420960750 Isolation hose, 90mmIsolation hose, 90mm
-
16414413800 Oil lineOil line
-
17420960728 Isolation hose, 120mmIsolation hose, 120mm
-
18420960729 Isolation hose, 150mmIsolation hose, 150mm
-
19420853840 Clamp, 3-5 mmClamp, 3-5 mm
-
20293800060 Loctite 243, 10mlLoctite 243, 10ml
-
21413707000 Molykote 111Molykote 111
