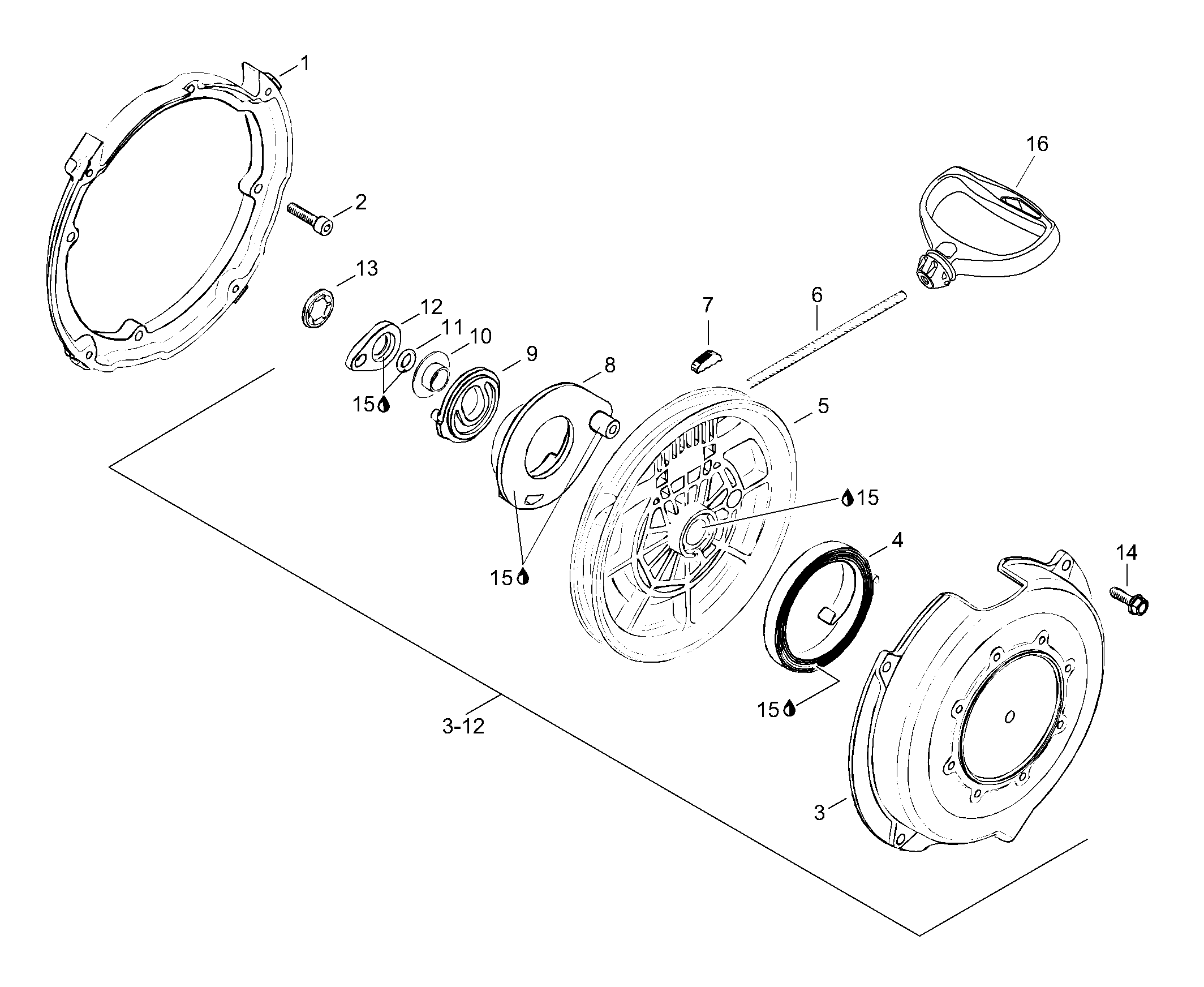

04- Rewind Starter для BRP Lynx Enduro 500 F - 2002
-
№АртикулНазвание
-
1420810952 Connecting flangeConnecting flange
-
2420840401 Screw M6x22Screw M6x22
-
3420888212 Rewind starter assy. Includes items 3 thru 12Rewind starter assy. Includes items 3 thru 12
-
3420811340 Starter housing assyStarter housing assy
-
4420939115 Spring assySpring assy
-
5420852480 Rope sheaveRope sheave
-
6420852491 Starter rope (2.2 m)Starter rope (2.2 m)
-
6412500100 Starter rope (30 m)Starter rope (30 m)
-
7420852070 KeyKey
-
8420852296 PawlPawl
-
9420852303 Pawl lockPawl lock
-
10420847925 SleeveSleeve
-
11420250400 O-ringO-ring
-
12420852520 Lock leverLock lever
-
13420845560 Locking elementLocking element
-
14420941250 Screw M6x20Screw M6x20
-
15420897061 Silicon compoundSilicon compound
-
16572084400 HandleHandle
