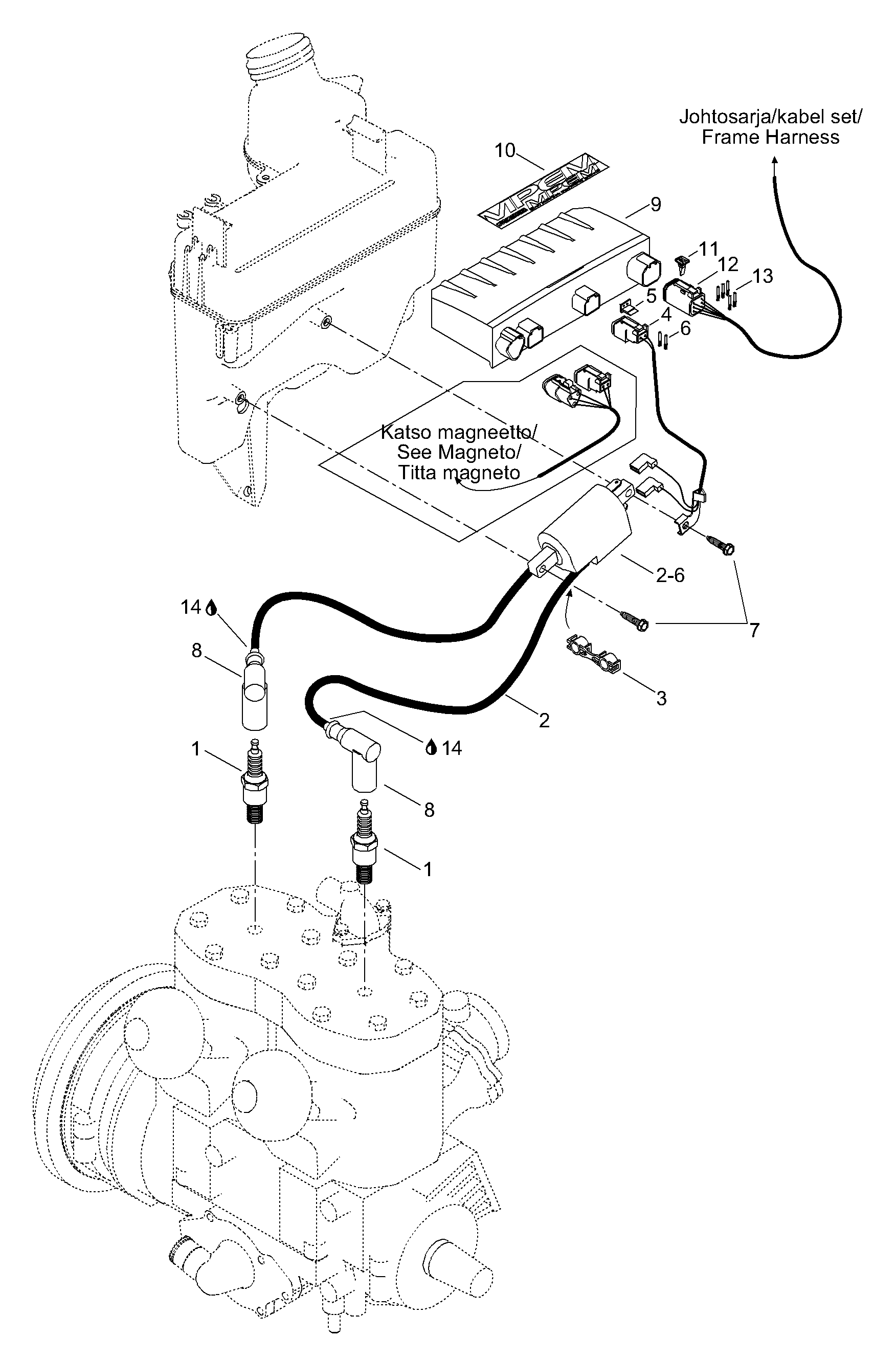

01- DPM для BRP Lynx Enduro 500 Special/RER - 2002
-
№АртикулНазвание
-
1512059533 Spark plug BR9ECSSpark plug BR9ECS
-
25348142 Ignition coil assy. Includes items 2 thru 6Ignition coil assy. Includes items 2 thru 6
-
3410914600 Plastic clipPlastic clip
-
442610 Female terminal housinFemale terminal housin
-
542609 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740375 ScrewScrew
-
8278000237 Spark plug protectorSpark plug protector
-
9512059450 Calibration moduleCalibration module
-
10516000245 Label, MPEMLabel, MPEM
-
11515175705 Female lock (6 circuits)Female lock (6 circuits)
-
12515175673 Female terminal housinFemale terminal housin
-
13278000632 Female terminalFemale terminal
-
14293550004 140gDielectric grease, 140g140gDielectric grease, 140g
