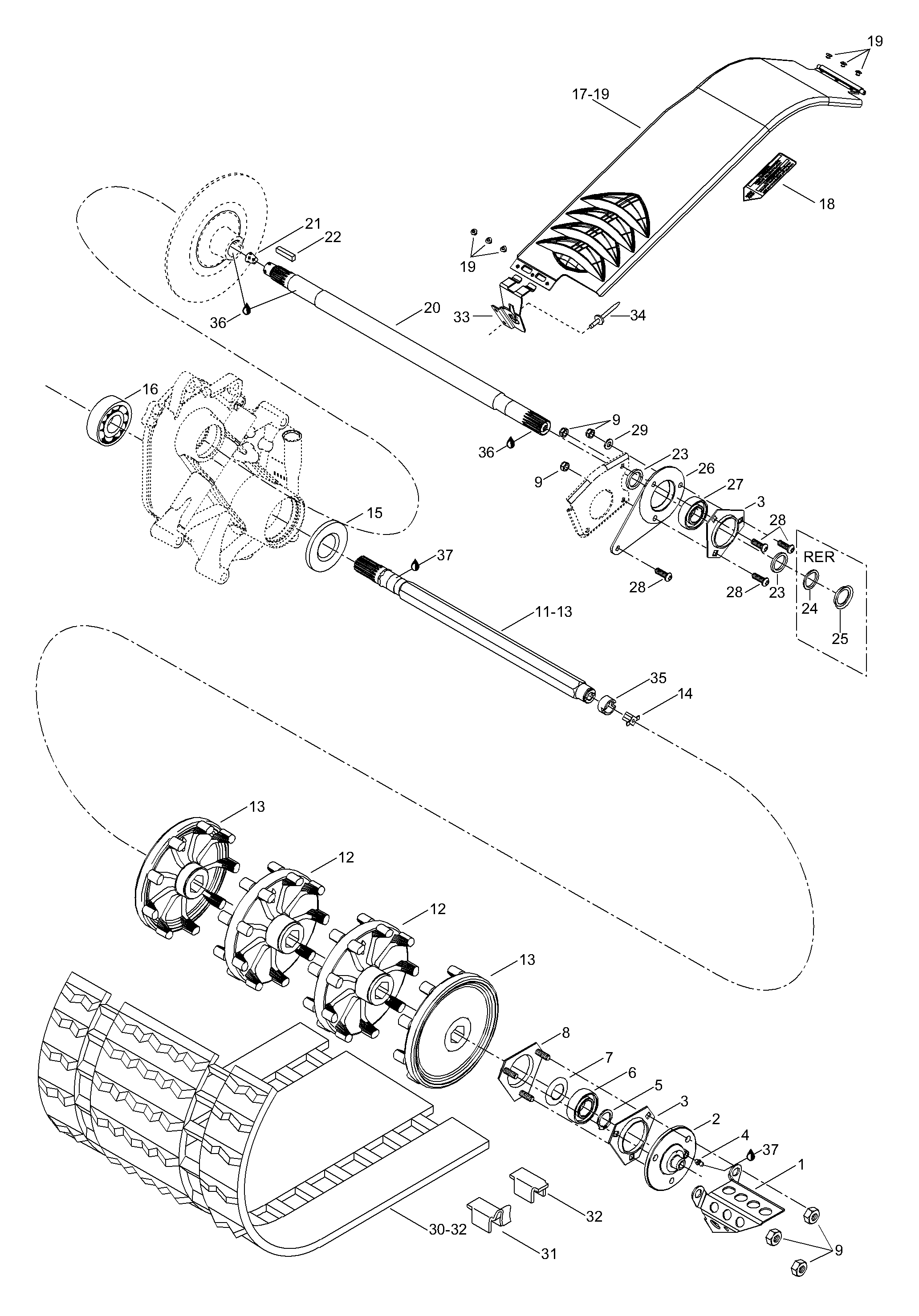

05- Drive Axle для BRP Lynx Enduro 500 Special/RER - 2002
-
№АртикулНазвание
-
1517290100 Cable protectorCable protector
-
2504151836 FlangeFlange
-
3501025000 FlangeFlange
-
434011 Grease fittingGrease fitting
-
531001 CirclipCirclip
-
6504152009 BearingBearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8504151860 Bearing housingBearing housing
-
933011 Nut elastic M8Nut elastic M8
-
105346820 Drive axle assy. Includes items 10 thru 13Drive axle assy. Includes items 10 thru 13
-
11501027400 Drive axleDrive axle
-
12504151781 Sprocket 9 teethSprocket 9 teeth
-
13504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
14572010100 Insert speedoInsert speedo
-
15504151918 Oil sealOil seal
-
16504152005 Bearing ballBearing ball
-
17417300173 Belt guard assy. Includes items 17 thru 19Belt guard assy. Includes items 17 thru 19
-
18516001190 Warning labelWarning label
-
19390402200 RivetRivet
-
20501026300 Clutch shaftClutch shaft
-
21414784800 CorkCork
-
22507021300 KeyKey
-
23504149100 SpacerSpacer
-
23504149100 Spacer (RER)Spacer (RER)
-
24417300054 Shim (RER)Shim (RER)
-
25417300055 Protector (RER)Protector (RER)
-
26080044200 Casting spacerCasting spacer
-
27504152026 Bearing ballBearing ball
-
2840344 Allen screw M8Allen screw M8
-
2920004 WasherWasher
-
30504151917 Track (25,4)(RER). Includes items 30 thru 32Track (25,4)(RER). Includes items 30 thru 32
-
3013066 Track (30). Includes items 30 thru 32Track (30). Includes items 30 thru 32
-
315318329 Guide cleatGuide cleat
-
31500003400 Guide cleatGuide cleat
-
325318330 CleatCleat
-
33417300001 BracketBracket
-
3436489 RivetRivet
-
36293800023 Loctite 767, antiseizeLoctite 767, antiseize
-
37413711500 Synthetic greaseSynthetic grease
