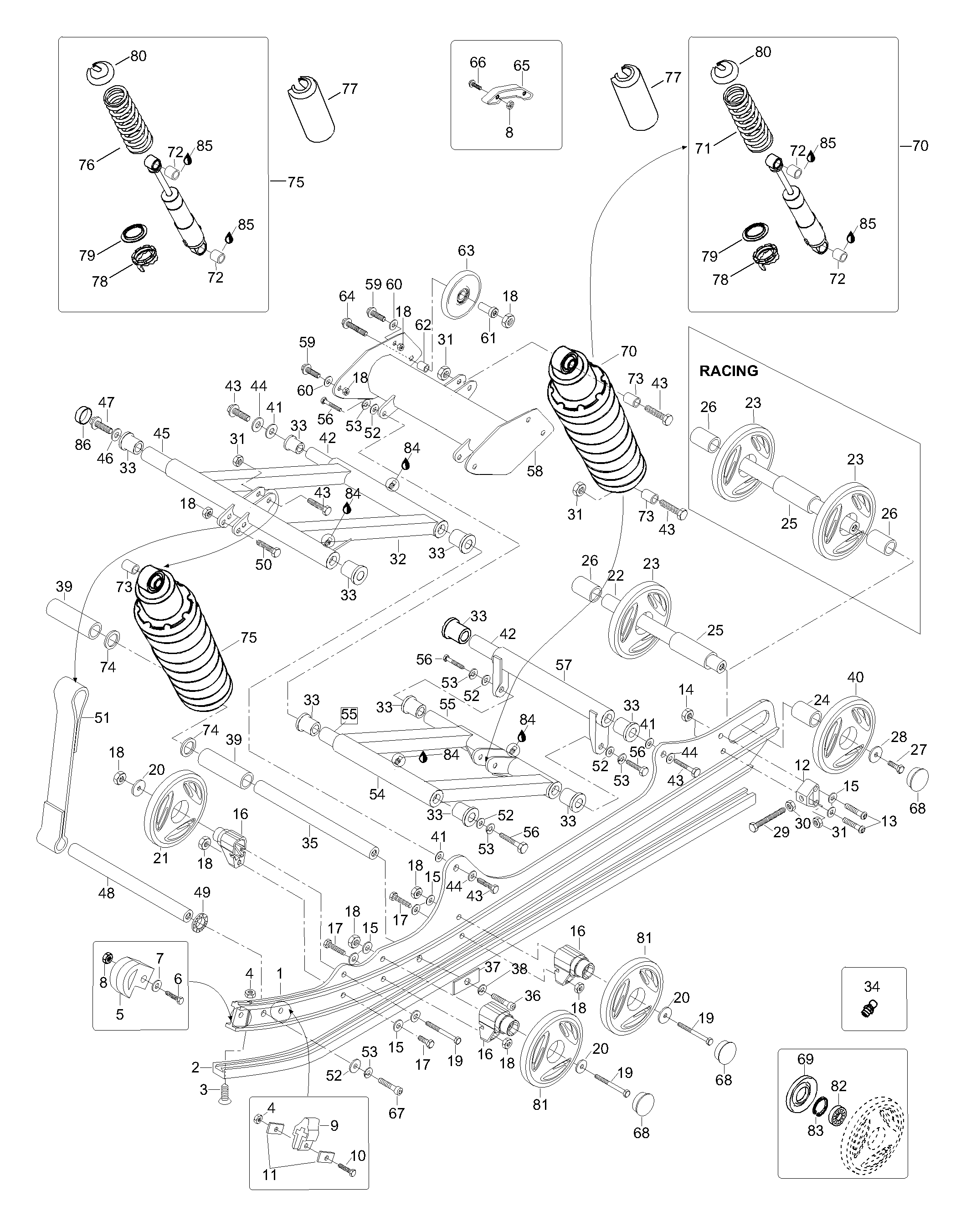

08- Rear Suspension для BRP Lynx Enduro 500 Special/RER - 2002
-
№АртикулНазвание
-
15247659 RunnerRunner
-
25346796 Runner shoeRunner shoe
-
340059 Allen screw M6x60Allen screw M6x60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6x25Screw M6x25
-
720003 WasherWasher
-
833200 Nut M6Nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6x30Screw M6x30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340372 Allen screw M8x50Allen screw M8x50
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
1520104 Washer, hardenedWasher, hardened
-
165447079 SupportSupport
-
1740037 Screw M8x25Screw M8x25
-
1833011 Nut elastic M8Nut elastic M8
-
1940089 Screw M8x75Screw M8x75
-
20503183100 Washer, hardenedWasher, hardened
-
21503188997 Wheel blackWheel black
-
225341511 Rear shaftRear shaft
-
23503189478 Wheel blackWheel black
-
245441512 SpacerSpacer
-
255441513 SleeveSleeve
-
265444099 SpacerSpacer
-
27250000019 Screw M10x35Screw M10x35
-
28503183300 Washer, hardenedWasher, hardened
-
2940239 Screw M10x100Screw M10x100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331083 CushionCushion
-
3434011 Crease nippleCrease nipple
-
355347633 Shaft, shockShaft, shock
-
3640536 Allen screw M10x45Allen screw M10x45
-
375446786 Support plateSupport plate
-
3820068 Lock washerLock washer
-
395346649 SpacerSpacer
-
40503189374 Idler wheel 165/GR (REIdler wheel 165/GR (RE
-
40503189477 Idler Wheel 165/redIdler Wheel 165/red
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Screw M10x45Screw M10x45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Screw M12x60Screw M12x60
-
485343471 ShaftShaft
-
494181158 Fixing WasherFixing Washer
-
5040008 Screw M8x45Screw M8x45
-
515447919 Belt, frontBelt, front
-
5220105 Washer, hardenedWasher, hardened
-
5320047 Spring washerSpring washer
-
545245536 Rear Arm WeldRear Arm Weld
-
555346865 ShaftShaft
-
5640014 Screw M10x40Screw M10x40
-
575345535 Rear armRear arm
-
585245638 Upper armUpper arm
-
5940058 Locking screw M8x20Locking screw M8x20
-
6020005 WasherWasher
-
615446700 SleeveSleeve
-
625446701 SleeveSleeve
-
6346027 Idler Wheel blackIdler Wheel black
-
6440376 Locking screw M8x80Locking screw M8x80
-
655343191 Slide partSlide part
-
6640064 Screw M6x40Screw M6x40
-
6740134 Allen screw M10x45Allen screw M10x45
-
68570063600 CapCap
-
69572089000 Labyrinth sealLabyrinth seal
-
705347345 Shock LYNXShock LYNX
-
71230058 SpringSpring
-
7231094 Slide bearingSlide bearing
-
735446652 SleeveSleeve
-
7431013 ShimShim
-
755347344 Shock LYNXShock LYNX
-
76230059 SpringSpring
-
775346754 ProtectorProtector
-
78230048 CamCam
-
79230049 Spring guideSpring guide
-
805346750 Spring stopperSpring stopper
-
81503189411 Wheel 135/grey (RER)Wheel 135/grey (RER)
-
81572097603 Wheel 135/redWheel 135/red
-
82405404500 Ball bearingBall bearing
-
83371901700 CirclipCirclip
-
84413711500 Synthetic greaseSynthetic grease
-
865448025 CapCap
