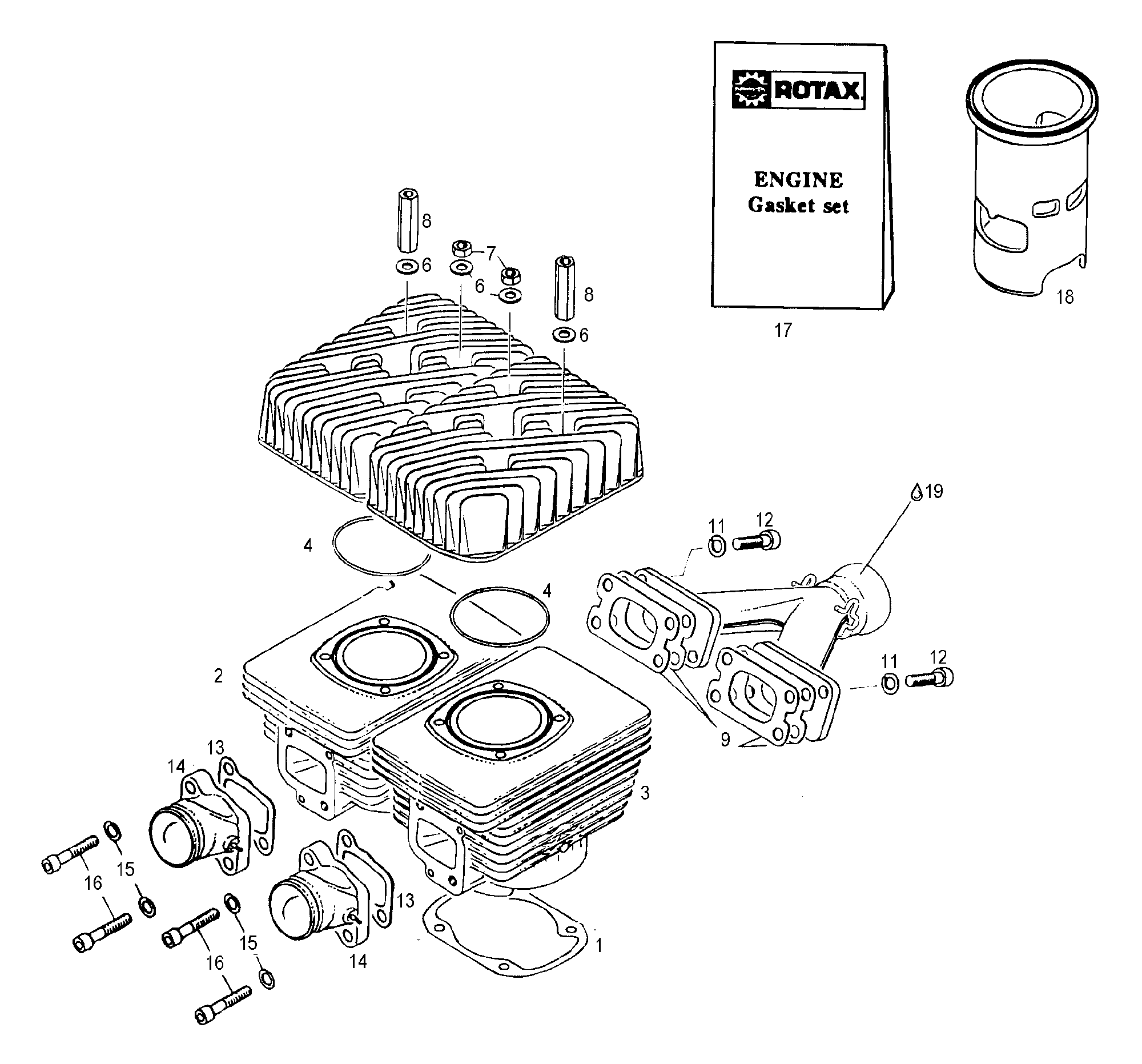

01- Cylinder для BRP Lynx Ranger FCE - 2002
-
№АртикулНазвание
-
1420831858 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
2420923417 Cylinder. Includes items 2 thru 3Cylinder. Includes items 2 thru 3
-
4420850540 Gasket, cylinder headGasket, cylinder head
-
5420923590 Cylinder headCylinder head
-
620004 WasherWasher
-
7420242206 Nut M8Nut M8
-
8420842203 Nut M8x47Nut M8x47
-
9420831849 GasketGasket
-
10420673060 Branch-YBranch-Y
-
1120014 Spring washerSpring washer
-
1240135 Allen screw M8x30Allen screw M8x30
-
13420831866 Intake gasket 1,0 mmIntake gasket 1,0 mm
-
14420867408 Intake manifoldIntake manifold
-
1520014 Spring washerSpring washer
-
16420840681 Allen screw M840Allen screw M840
-
17420994238 Gasket setGasket set
-
18420823658 Spare cylinder sleeveSpare cylinder sleeve
-
19420297434 LoctiteLoctite
