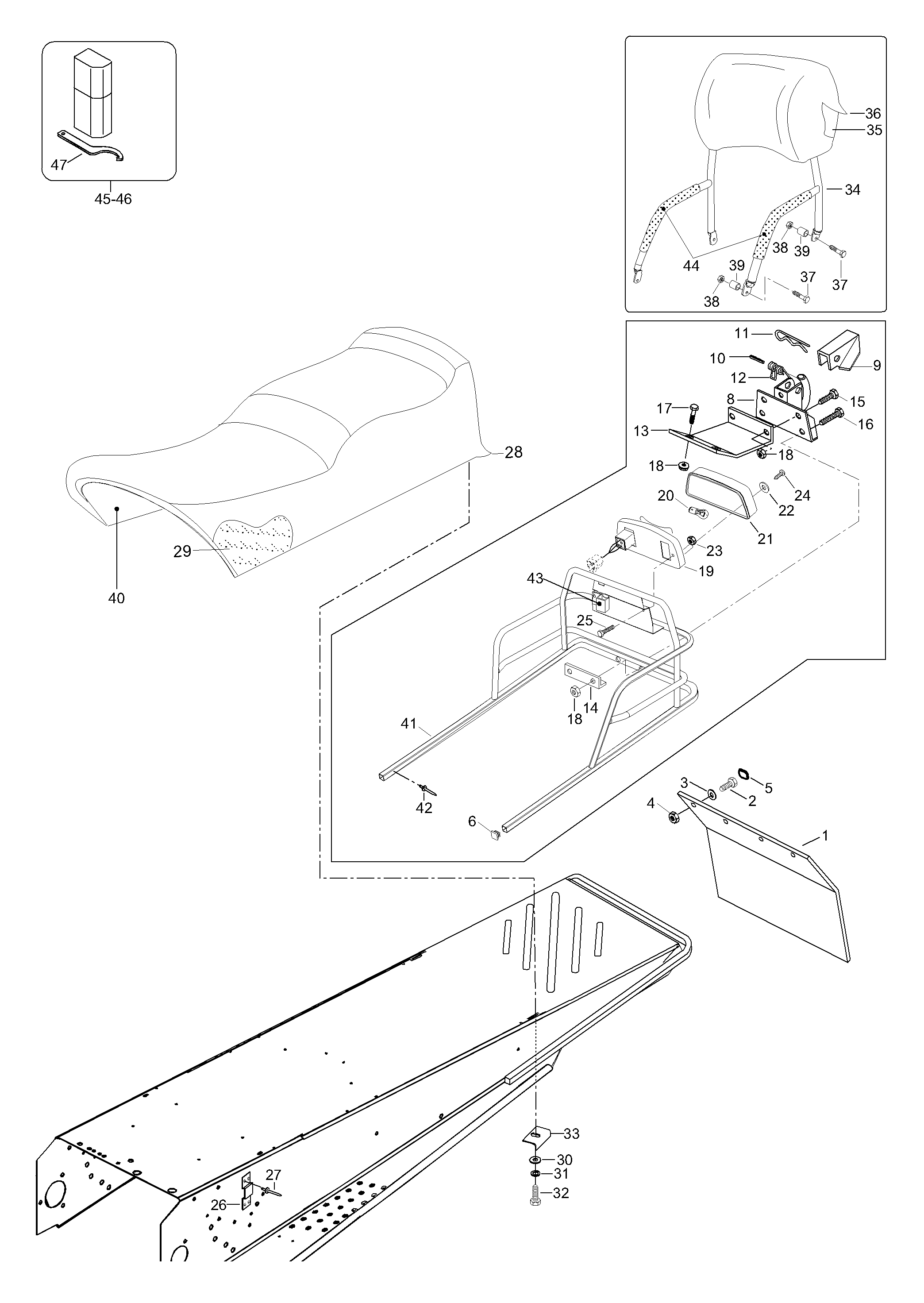

09- Body для BRP Lynx Ranger FCE - 2002
-
№АртикулНазвание
-
15246860 SnowguardSnowguard
-
240078 Screw M6x22Screw M6x22
-
320009 WasherWasher
-
433200 Nut elastic M6Nut elastic M6
-
5415073300 CapCap
-
628232 CapCap
-
75344156 Hitch asst. Includes items 7 thru 12Hitch asst. Includes items 7 thru 12
-
85344208 HitchHitch
-
95440767 LockLock
-
1041012 Spring PinSpring Pin
-
1141029 Needle PinNeedle Pin
-
12545693 SpringSpring
-
135347841 Support plateSupport plate
-
145448329 Support plateSupport plate
-
1540008 Screw M8x40Screw M8x40
-
1640037 Screw M8x25Screw M8x25
-
1740336 Screw M8x20Screw M8x20
-
1833201 Nut elastic M8Nut elastic M8
-
195341214 Tail lamp assy. 19 Includes items 24Tail lamp assy. 19 Includes items 24
-
19414979400 Tail lamp housingTail lamp housing
-
20410504000 BulpBulp
-
21414513700 LensLens
-
22414516400 WasherWasher
-
2333200 Nut M6Nut M6
-
2440613 ScrewScrew
-
2540032 Screw M6x30Screw M6x30
-
265447908 BracketBracket
-
2736489 RivetRivet
-
285148258 Seat coverSeat cover
-
295146604 Seat foamSeat foam
-
3020010 WasherWasher
-
3120014 Spring washerSpring washer
-
3240015 Screw M8x30Screw M8x30
-
335447994 Support plateSupport plate
-
345248344 BackrestBackrest
-
35539399 Back rest stoppningBack rest stoppning
-
365340917 Back rest coverBack rest cover
-
3740387 Screw M8x30Screw M8x30
-
3833011 Nut elastic M8Nut elastic M8
-
39548491 SleeveSleeve
-
405146603 Seat baseSeat base
-
415247782 RackRack
-
4236070 RivetRivet
-
43605448415 CoverCover
-
44415050300 GripGrip
-
455445403 Tool box with tools. Includes items 45 thru 46Tool box with tools. Includes items 45 thru 46
-
46572036310 Tool boxTool box
-
47529032900 CamCam
