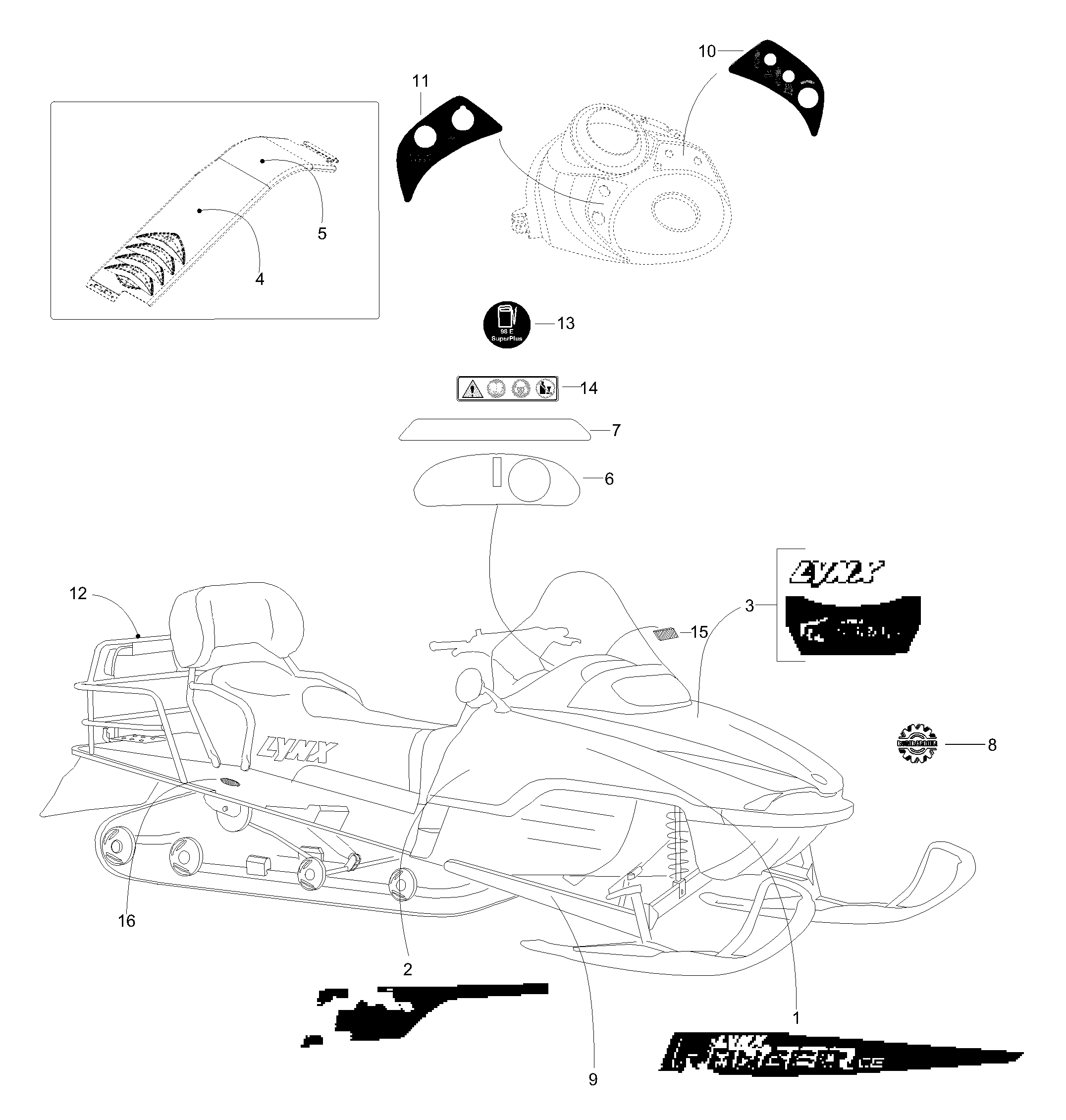

09- Decals для BRP Lynx Ranger FCE - 2002
-
№АртикулНазвание
-
5147465 Hood decal kit Incl. decals: 1, 2 and 3Hood decal kit Incl. decals: 1, 2 and 3
-
15147396 R.H. Hood decal, upperR.H. Hood decal, upper
-
15147397 L.H. Hood decal, upperL.H. Hood decal, upper
-
25147398 R.H. lower decal, hoodR.H. lower decal, hood
-
25147399 L.H. lower decal, hoodL.H. lower decal, hood
-
35247781 Hood decal, frontHood decal, front
-
4546820 Pulley decalPulley decal
-
5544068 Oil check decalOil check decal
-
65347662 Control panel decalControl panel decal
-
75346800 Instruction decalInstruction decal
-
8516000983 Logo-BombardierLogo-Bombardier
-
95247401 L.H. Decal, swing armL.H. Decal, swing arm
-
95247402 R.H. Decal, swing armR.H. Decal, swing arm
-
105447918 Grip heater decal/RERGrip heater decal/RER
-
115448062 DecalDecal
-
125447930 Instruction symbol decalInstruction symbol decal
-
135447020 Fuel labelFuel label
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
