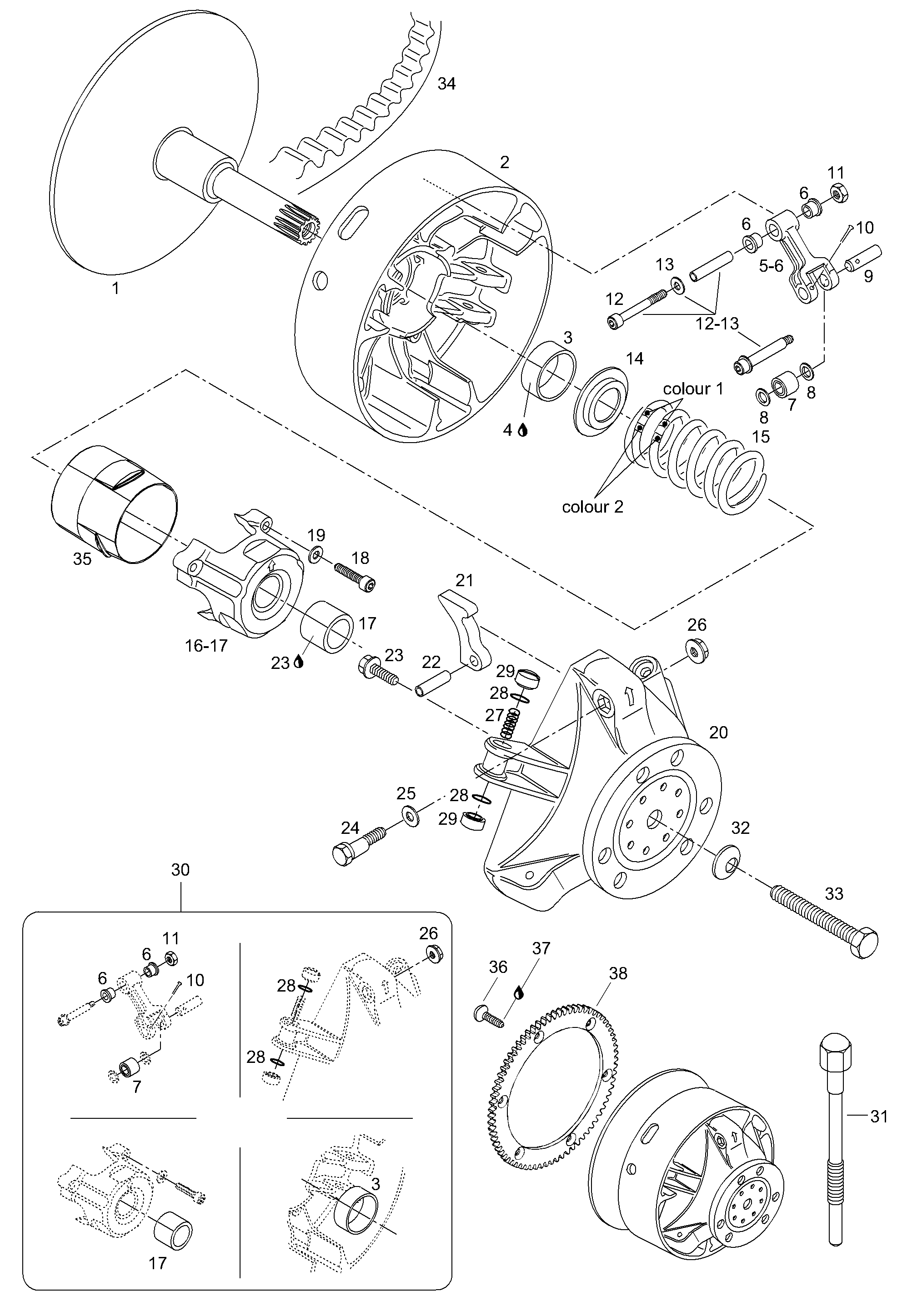

05- Clutch для BRP Lynx Super Touring 600 - 2002
-
№АртикулНазвание
-
1417222411 Inner half assyInner half assy
-
2417222241 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5417222383 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11232561414 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes items 12 thru 13Fitting screw assy. Includes items 12 thru 13
-
12205065044 Allen screw M6x50Allen screw M6x50
-
13234061410 WasherWasher
-
14417222044 Spring seatSpring seat
-
15414817900 Spring, violet/violetSpring, violet/violet
-
16417222304 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417004501 Bushing Spring coverBushing Spring cover
-
18250000038 Allen screw M6x40Allen screw M6x40
-
19420245370 Friction-washerFriction-washer
-
20417222081 Governor cupGovernor cup
-
21417222372 Ramp 299Ramp 299
-
22732804009 Dowel tube M8x24Dowel tube M8x24
-
23210361890 Hex. locking screwHex. locking screw
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417005800 Slider shoeSlider shoe
-
30417006100 Clutch repair kitClutch repair kit
-
31529022400 Puller inner halfPuller inner half
-
3220110 WasherWasher
-
33417120000 ScrewScrew
-
34414860700 Drive beltDrive belt
-
35417222176 GuardGuard
-
36236281684 ScrewScrew
-
37293800005 Loctite 271, 10mlLoctite 271, 10ml
-
38417300057 Gear ringGear ring
