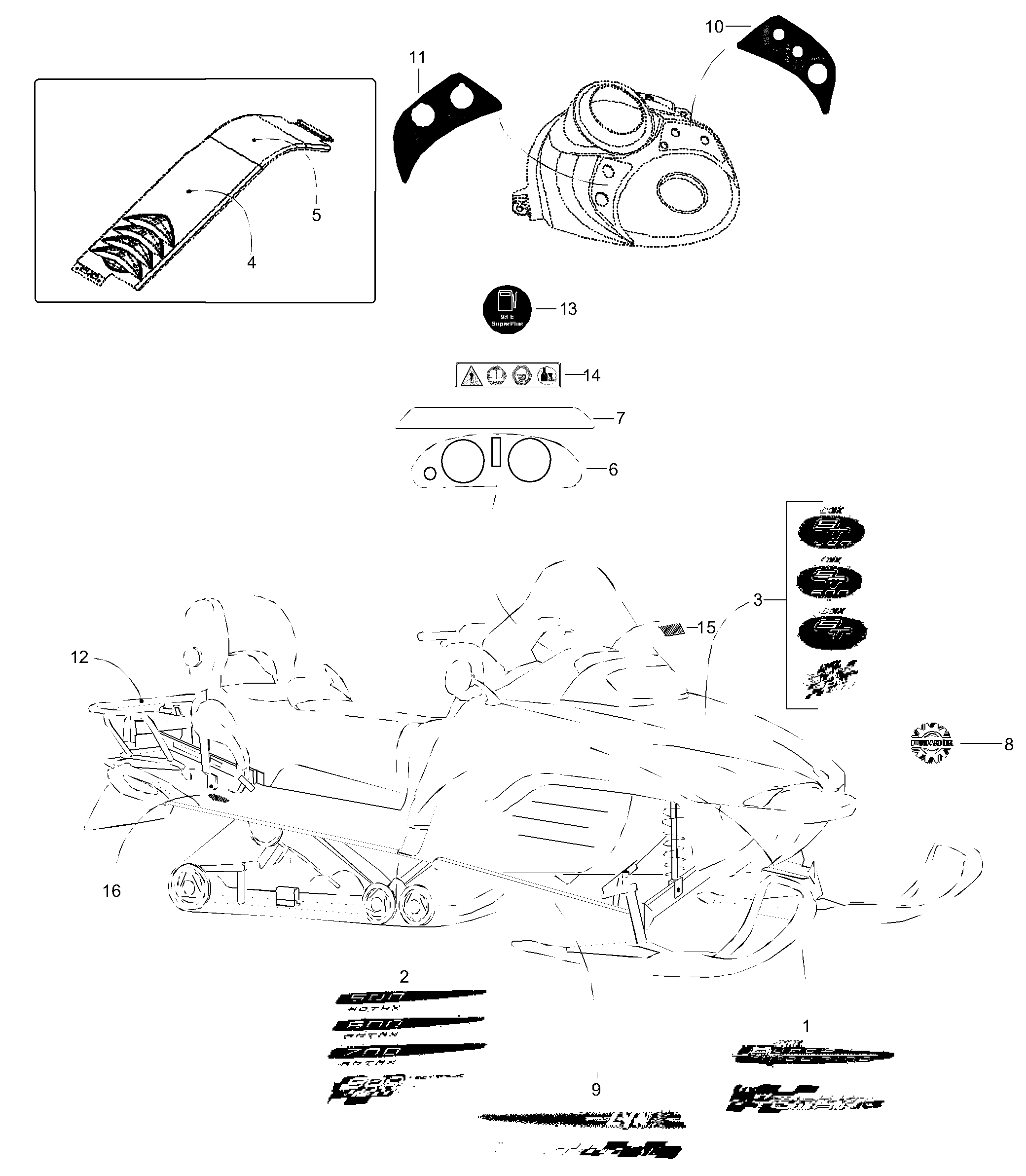

09- Decals для BRP Lynx Super Touring 600 - 2002
-
№АртикулНазвание
-
5147481 Hood decal kit Incl. decals: 1, 2, 3 and 4Hood decal kit Incl. decals: 1, 2, 3 and 4
-
15147204 R.H. Hood decal, upperR.H. Hood decal, upper
-
15147205 L.H. Hood decal, upperL.H. Hood decal, upper
-
25147206 R.H. lower decal, hoodR.H. lower decal, hood
-
25147207 L.H. lower decal, hoodL.H. lower decal, hood
-
35247208 Hood decal, frontHood decal, front
-
4546820 Pulley decalPulley decal
-
5544068 Oil check decalOil check decal
-
65348176 Control panel decalControl panel decal
-
75346800 Instruction decalInstruction decal
-
8516000983 Logo-BombardierLogo-Bombardier
-
95147529 Decal, swing arm L.H.Decal, swing arm L.H.
-
95147528 Decal, swing arm R.H.Decal, swing arm R.H.
-
105447918 Grip heater decal/RERGrip heater decal/RER
-
115446932 Decal D.E.S.S./startDecal D.E.S.S./start
-
125447931 Instruction symbol decalInstruction symbol decal
-
135447020 Fuel labelFuel label
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
