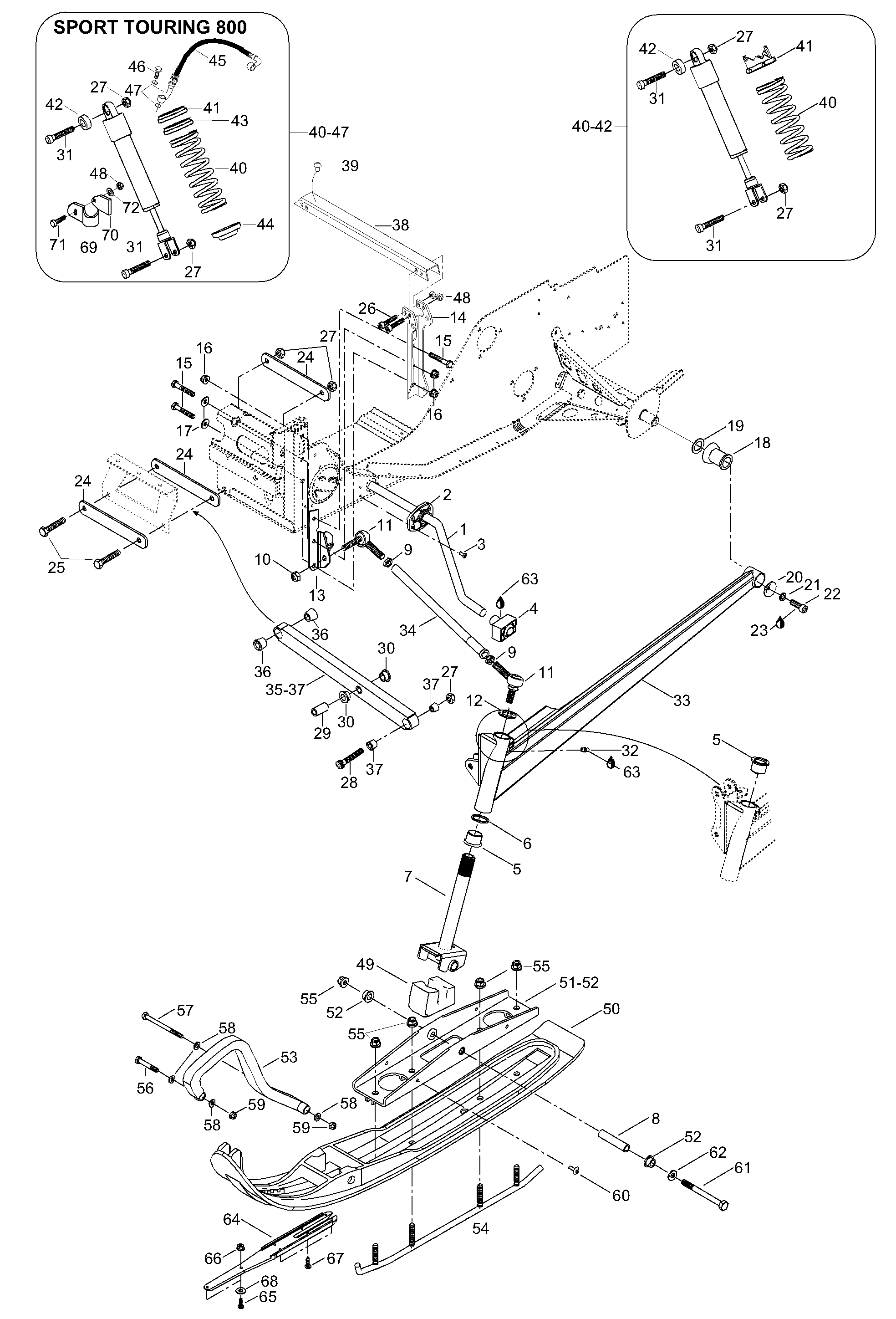

08- Front Suspension для BRP Lynx Super Touring 600 - 2002
-
№АртикулНазвание
-
15246797 Sway barSway bar
-
2505070191 SleeveSleeve
-
336009 RivetRivet
-
4505070117 Block-joint ballBlock-joint ball
-
5505070003 BushingBushing
-
6505070004 WasherWasher
-
75245502 Ski legSki leg
-
8506133300 SpacerSpacer
-
933048 Jam nut M12Jam nut M12
-
1033087 Jam nut elastic M12Jam nut elastic M12
-
1131092 Ball jointBall joint
-
1220074 Lock washerLock washer
-
135348064 R.H. Upper arm bracketR.H. Upper arm bracket
-
135348063 L.H. Upper arm bracketL.H. Upper arm bracket
-
145246395 Shock bracketShock bracket
-
145245488 Shock bracketShock bracket
-
1540010 Screw M8x55Screw M8x55
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
1720104 Washer, hardenedWasher, hardened
-
18570062200 DamperDamper
-
19503146700 WasherWasher
-
20506079600 CupCup
-
2120014 Spring washerSpring washer
-
2240289 Allen screw M8x25Allen screw M8x25
-
23293800060 Loctite 243, 10mlLoctite 243, 10ml
-
245346112 Support plateSupport plate
-
2540814 Screw M10x110Screw M10x110
-
2640345 Allen screw M6x40Allen screw M6x40
-
2733012 Nut elastic M10Nut elastic M10
-
2840136 Allen screw M10x50Allen screw M10x50
-
295441433 BushingBushing
-
3031088 BearingBearing
-
3140837 Allen screw M10x55Allen screw M10x55
-
3234011 Grease fittingGrease fitting
-
335247294 Swing arm, R.H. moond.Swing arm, R.H. moond.
-
335247295 Swing arm, L.H. moond.Swing arm, L.H. moond.
-
345346122 Upper armUpper arm
-
355247301 Lower arm, moondust. Includes items 35 thru 37Lower arm, moondust. Includes items 35 thru 37
-
365447769 Inner sleeveInner sleeve
-
375447770 Outer sleeveOuter sleeve
-
385347134 BracketBracket
-
3928143 Rubber plugRubber plug
-
4023141 Shock LYNX. Includes items 40 thru 42Shock LYNX. Includes items 40 thru 42
-
41503183700 CamCam
-
42230055 Rubber bushingRubber bushing
-
4833010 Nut elastic M6Nut elastic M6
-
49570070400 Stopper-skiStopper-ski
-
50505070189 Ski linerSki liner
-
51505070055 Bridge assy. Includes items 51 thru 52Bridge assy. Includes items 51 thru 52
-
52505070001 SleeveSleeve
-
53572101000 Plastic handlePlastic handle
-
545347375 Runner pairRunner pair
-
5533074 Elastic flange nut M10Elastic flange nut M10
-
5640009 Screw M8x50Screw M8x50
-
5740869 Screw M8x100Screw M8x100
-
5820004 WasherWasher
-
5933011 Nut elastic M8Nut elastic M8
-
60390911100 RivetRivet
-
6140814 Screw M10x110Screw M10x110
-
6220105 Washer, hardenedWasher, hardened
-
63413711500 Synthetic greaseSynthetic grease
-
64505070232 Proactive controlProactive control
-
65250000015 Allen screw M5x25Allen screw M5x25
-
6633062 Elastic flanged nut M5Elastic flanged nut M5
-
6740901 ScrewScrew
-
6820003 WasherWasher
