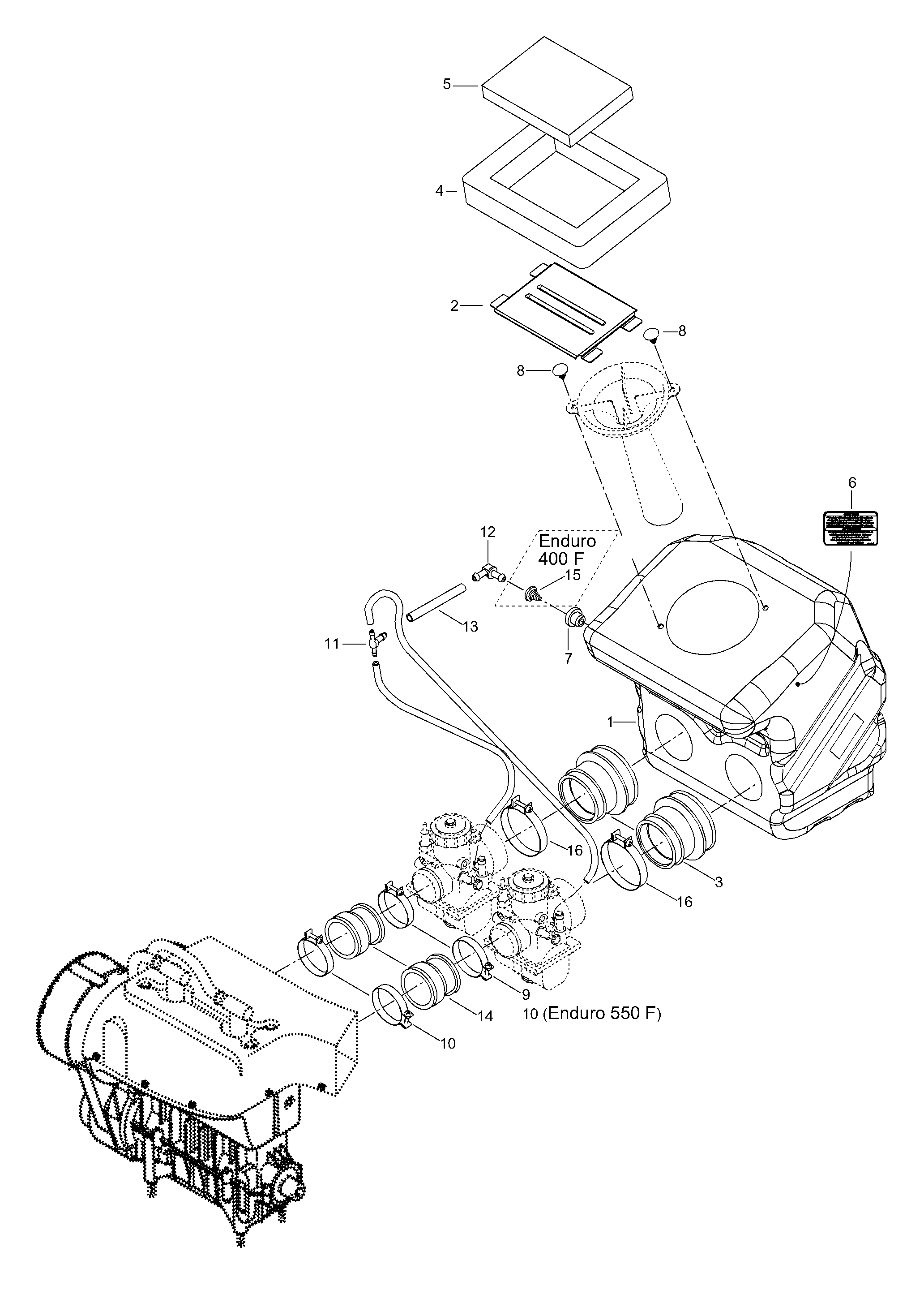

01- Air Silencer для BRP Lynx Enduro 400 F - 2003
-
№АртикулНазвание
-
1508000316 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000203 Intake adaptorIntake adaptor
-
4508000245 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8414644300 DartDart
-
9408803800 ClampClamp
-
10414532700 ClampClamp
-
14512059396 Carburetor adaptorCarburetor adaptor
-
15572051500 PlugPlug
-
16508000217 ClampClamp
