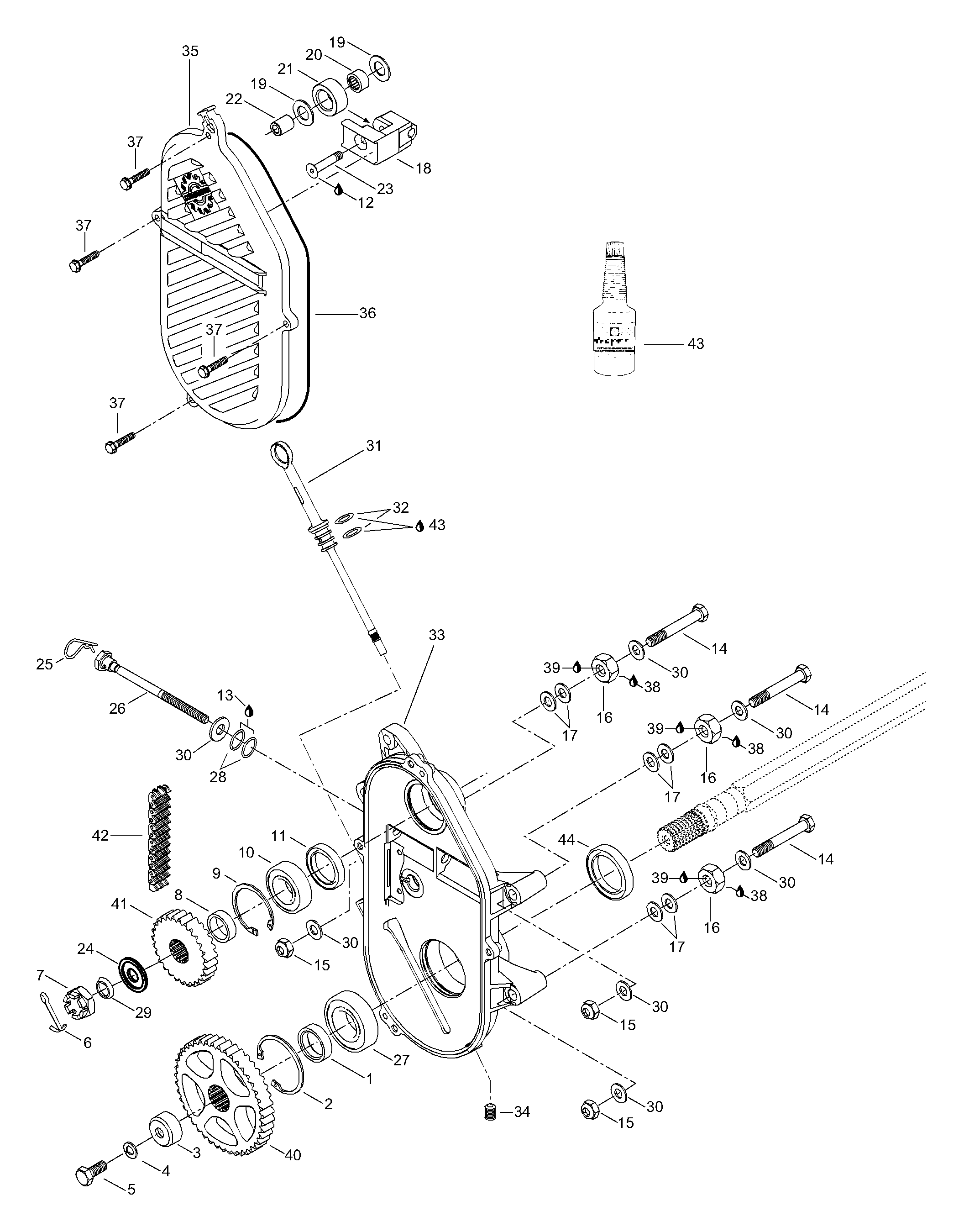

05- Chaincase для BRP Lynx Enduro 400 F - 2003
-
№АртикулНазвание
-
1501021800 SpacerSpacer
-
2415064300 CirclipCirclip
-
3501022400 SpacerSpacer
-
420068 WasherWasher
-
540040 Screw M10x25Screw M10x25
-
641003 Cotter pinCotter pin
-
7232210414 Castalled nut M16Castalled nut M16
-
8504147200 ShimShim
-
9371901700 CirclipCirclip
-
10504152006 BearingBearing
-
11504151927 SealSeal
-
12293800005 Loctite 271/10 mlLoctite 271/10 ml
-
13413711500 Synthetic greaseSynthetic grease
-
1440190 Screw M10x80Screw M10x80
-
1533012 Nut elastic M10Nut elastic M10
-
16504083800 SpacerSpacer
-
17504073700 WasherWasher
-
18504151951 TensionerTensioner
-
19504080300 WasherWasher
-
20405403000 Needle bearingNeedle bearing
-
21414531300 RollerRoller
-
22504080200 SpacerSpacer
-
23732601144 ScrewScrew
-
24605449796 WasherWasher
-
25414575600 PinPin
-
26732601314 Tension adjuster scr.Tension adjuster scr.
-
27504152005 BearingBearing
-
28414484400 O-ringO-ring
-
29417000900 Spring washerSpring washer
-
3020005 WasherWasher
-
31504151703 Filler cap assyFiller cap assy
-
32414969400 O-ringO-ring
-
33504152064 ChaincaseChaincase
-
34504151921 PlugPlug
-
35504152027 CoverCover
-
36415046400 O-ringO-ring
-
3740340 Self tapping screwSelf tapping screw
-
38293800023 Loctite 767Loctite 767
-
39293800060 Loctite 243\10 mlLoctite 243\10 ml
-
40504057300 Sprocket Z=44Sprocket Z=44
-
41504152030 Sprocket Z=19Sprocket Z=19
-
42504151857 Chain driving, 13/74Chain driving, 13/74
-
43320007 Synthetic chaincase oilSynthetic chaincase oil
-
44504151918 SealSeal
