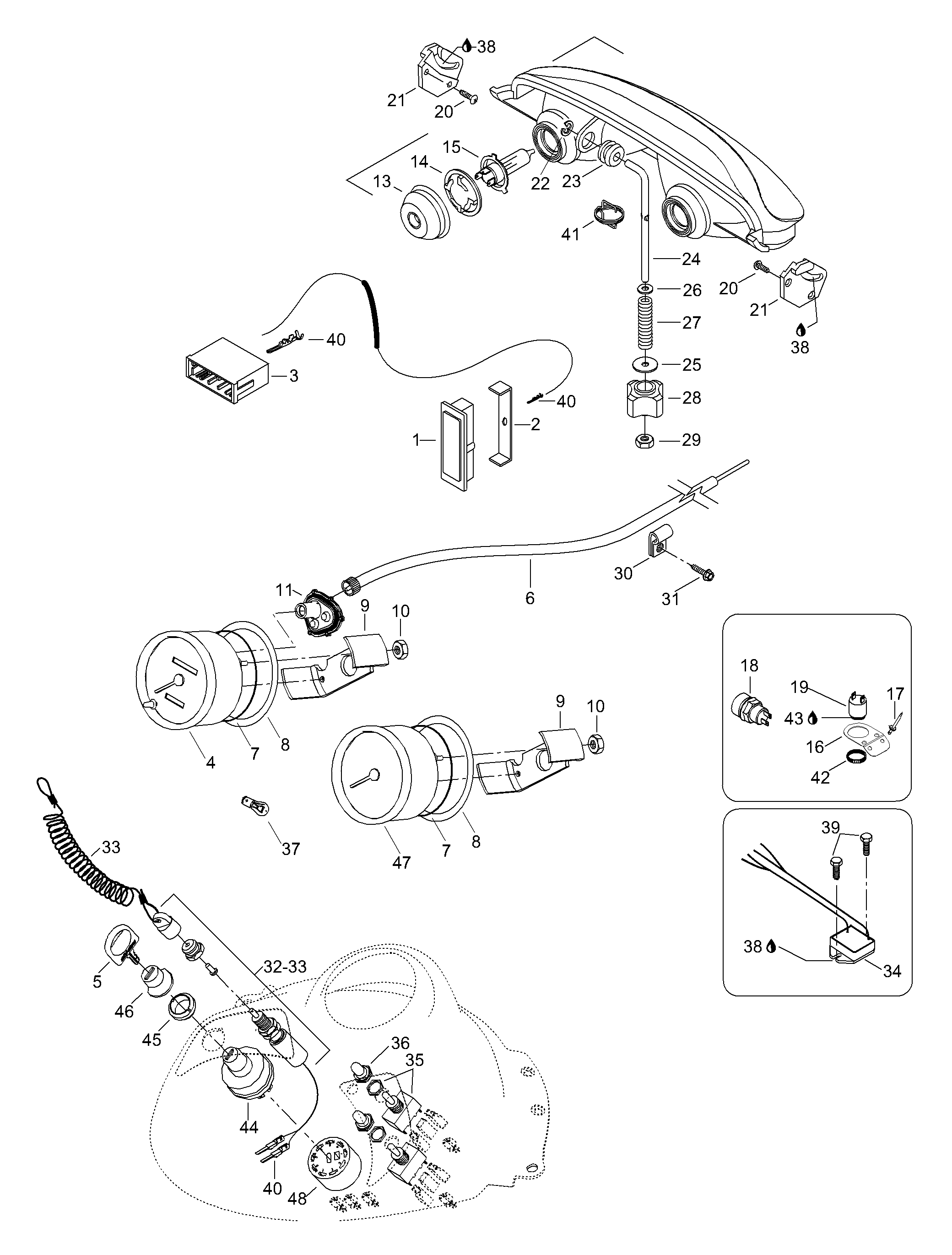

10- Electric для BRP Lynx Enduro 400 F - 2003
-
№АртикулНазвание
-
15348029 Signal lamp assySignal lamp assy
-
25442157 Fit plateFit plate
-
342036 Connector housingConnector housing
-
4515175335 Speedometer whiteSpeedometer white
-
5414917000 Blank keyBlank key
-
6415101500 Speedometer cableSpeedometer cable
-
7414807100 O-ringO-ring
-
8517258500 WasherWasher
-
9414806500 HolderHolder
-
1033062 Nut M6Nut M6
-
11515175400 Drive angleDrive angle
-
12515175517 Halogen headlamp assy. Includes items 12 thru 15Halogen headlamp assy. Includes items 12 thru 15
-
13410607100 CoverCover
-
14410608300 Bulb holderBulb holder
-
15410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
165447941 BracketBracket
-
1736005 RivetRivet
-
18415101200 Reverse buttonReverse button
-
19415060900 DC-hornDC-horn
-
2040177 Headlamp screwHeadlamp screw
-
21517289300 R.H. headlamp supportR.H. headlamp support
-
21517289400 L.H. headlamp supportL.H. headlamp support
-
22732610072 Nut pushNut push
-
23415100800 GrommetGrommet
-
24517295800 Adjuster rodAdjuster rod
-
2520038 WasherWasher
-
2620003 WasherWasher
-
27415100600 SpringSpring
-
28515175548 HandleHandle
-
2933010 Nut elastic M6Nut elastic M6
-
3027025 ClampClamp
-
3140870 ScrewScrew
-
32544957 Emergency switch. Includes items 32 thru 33Emergency switch. Includes items 32 thru 33
-
334299163 Emergency switch lockEmergency switch lock
-
34515175655 Voltage regulatorVoltage regulator
-
35410107300 SwitchSwitch
-
36515175281 Rubber cover for switchRubber cover for switch
-
37410504200 Instrumentation bulbInstrumentation bulb
-
38413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
3940322 Screw M6x16Screw M6x16
-
4042603 Male terminalMale terminal
-
415447238 SpringSpring
-
42414805101 Ring nutRing nut
-
43293800005 Loctite 271 (10 ml)Loctite 271 (10 ml)
-
4442019 Ignition switchIgnition switch
-
45410112100 NutNut
-
46570013700 Boot switchBoot switch
-
47515175341 Tachometer, whiteTachometer, white
-
48572150700 Ignition blockIgnition block
