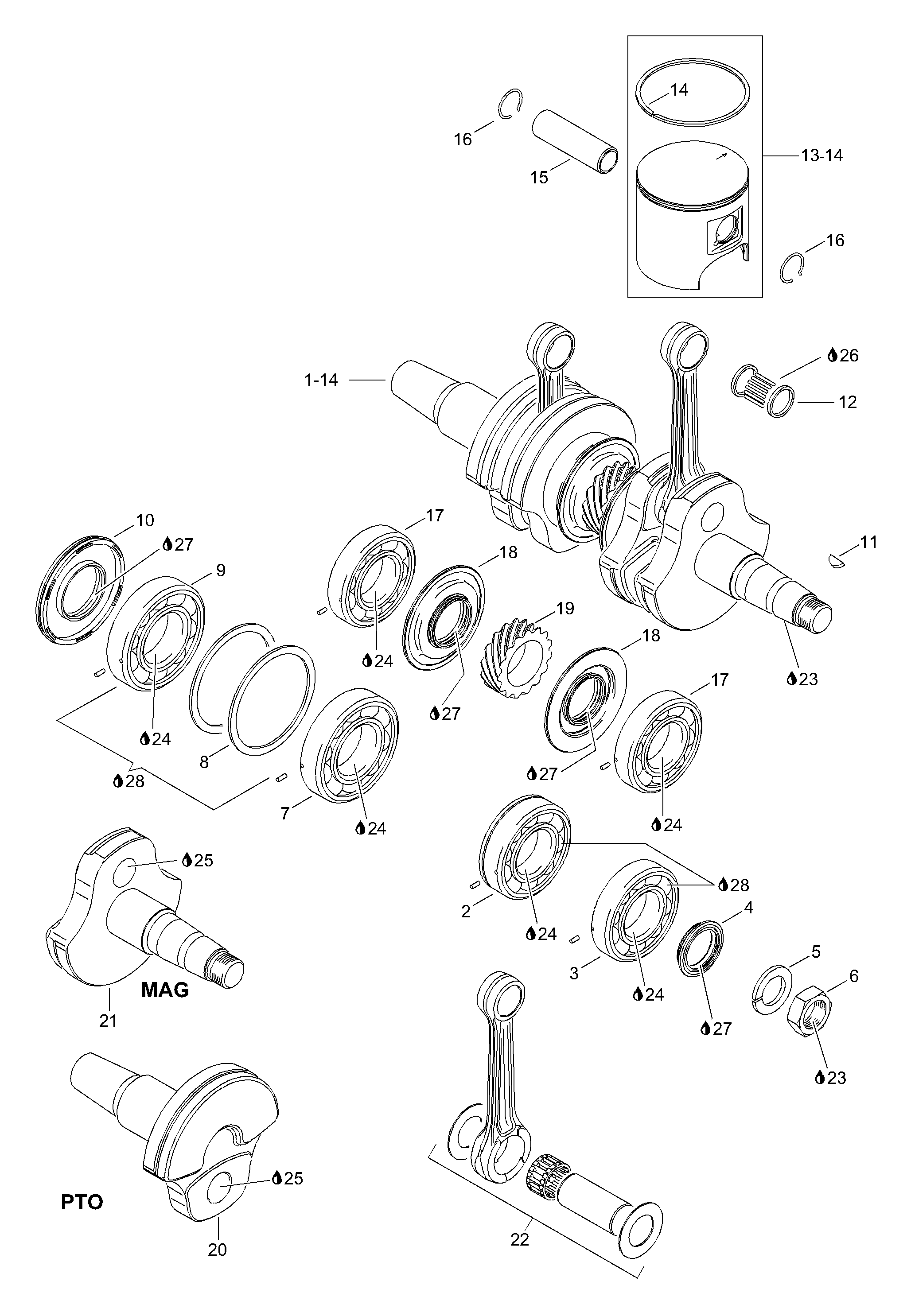

01- Crankshaft Assy для BRP Lynx Enduro 500 Special - 2003
-
№АртикулНазвание
-
1420888465 Crankshaft assy. Includes items 1 thru 14Crankshaft assy. Includes items 1 thru 14
-
2420832595 Ball bearing assyBall bearing assy
-
3420832590 Ball bearing assyBall bearing assy
-
4420931792 Oil sealOil seal
-
5420945759 Lock washerLock washer
-
6420842230 Nut M22Nut M22
-
7420832635 Ball bearing assyBall bearing assy
-
8420927710 Retaining diskRetaining disk
-
9420832575 Bearing 6207 assyBearing 6207 assy
-
10420831950 Oil sealOil seal
-
11420246015 Woodruff-keyWoodruff-key
-
12420832320 Needle cageNeedle cage
-
13420888445 Piston 69.40 mm. Includes items 13 thru 14Piston 69.40 mm. Includes items 13 thru 14
-
13420888446 Piston 69.65 mm. Includes items 13 thru 14Piston 69.65 mm. Includes items 13 thru 14
-
14420815043 Retangular ringRetangular ring
-
14420815044 Retangular ringRetangular ring
-
15420916186 Piston pinPiston pin
-
16420945735 CirclipCirclip
-
17420832590 Bearing 6206 assyBearing 6206 assy
-
18420931940 Oil sealOil seal
-
19420834350 Central gear 15TCentral gear 15T
-
20420818666 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
21420818693 Crankshaft MAG. sideCrankshaft MAG. side
-
22420888463 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
22420888464 Rod repair kit P.T.O.-sideRod repair kit P.T.O.-side
-
23420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
24420297434 Loctite anti seizeLoctite anti seize
-
25420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
27420899271 Klueber petamoKlueber petamo
-
28293550021 Isoflex grease, 50gIsoflex grease, 50g
