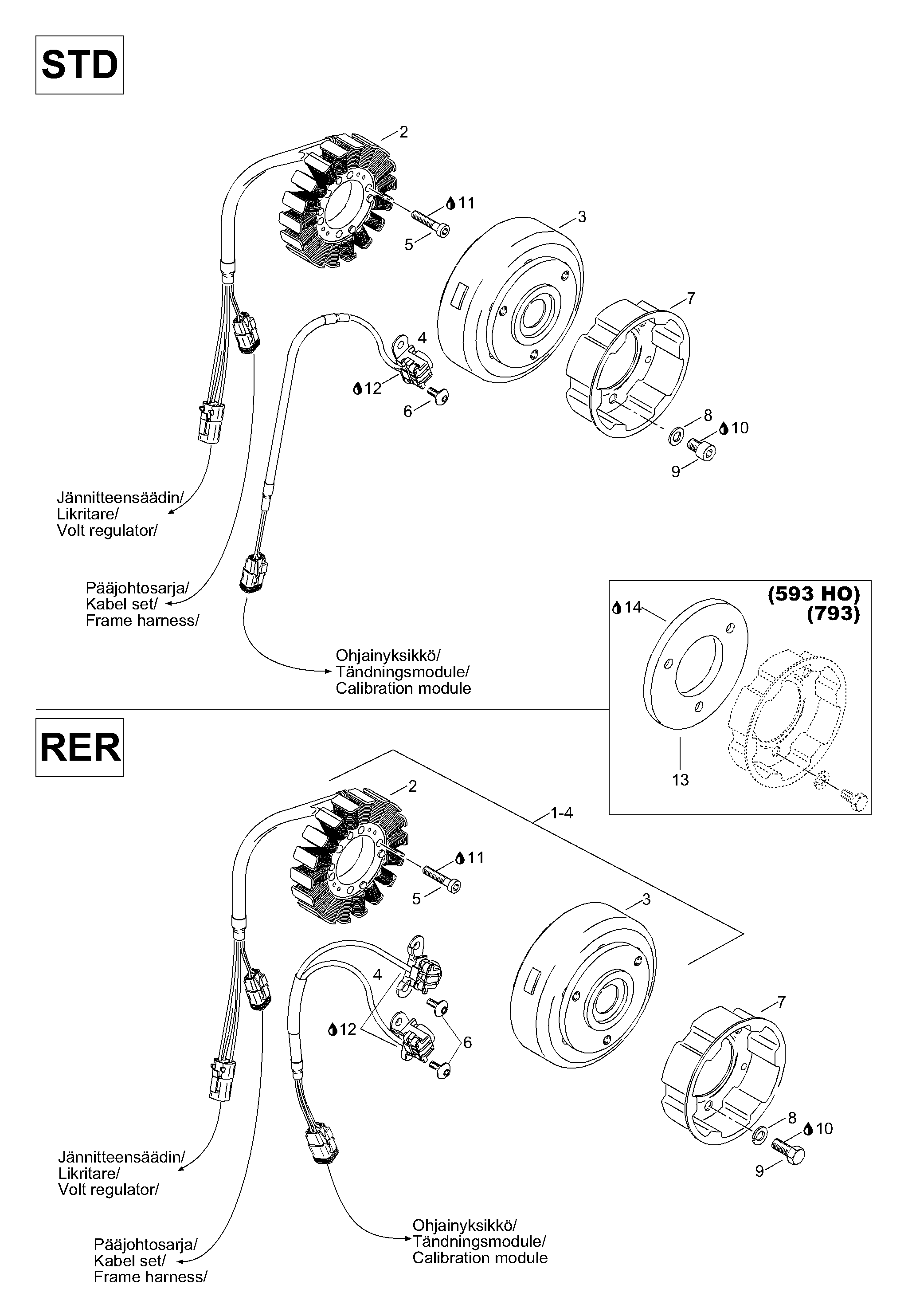

03- Magneto для BRP Lynx Enduro 500 Special - 2003
-
№АртикулНазвание
-
1420888236 Magneto 12V/360W. Includes items 1 thru 4Magneto 12V/360W. Includes items 1 thru 4
-
2420888617 Stator assyStator assy
-
3420888628 Magneto flywheelMagneto flywheel
-
4420966803 Pick up assyPick up assy
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852590 Starter cupStarter cup
-
8420827405 Lock washerLock washer
-
9420841520 Allenscrew M8x12Allenscrew M8x12
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
12420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
