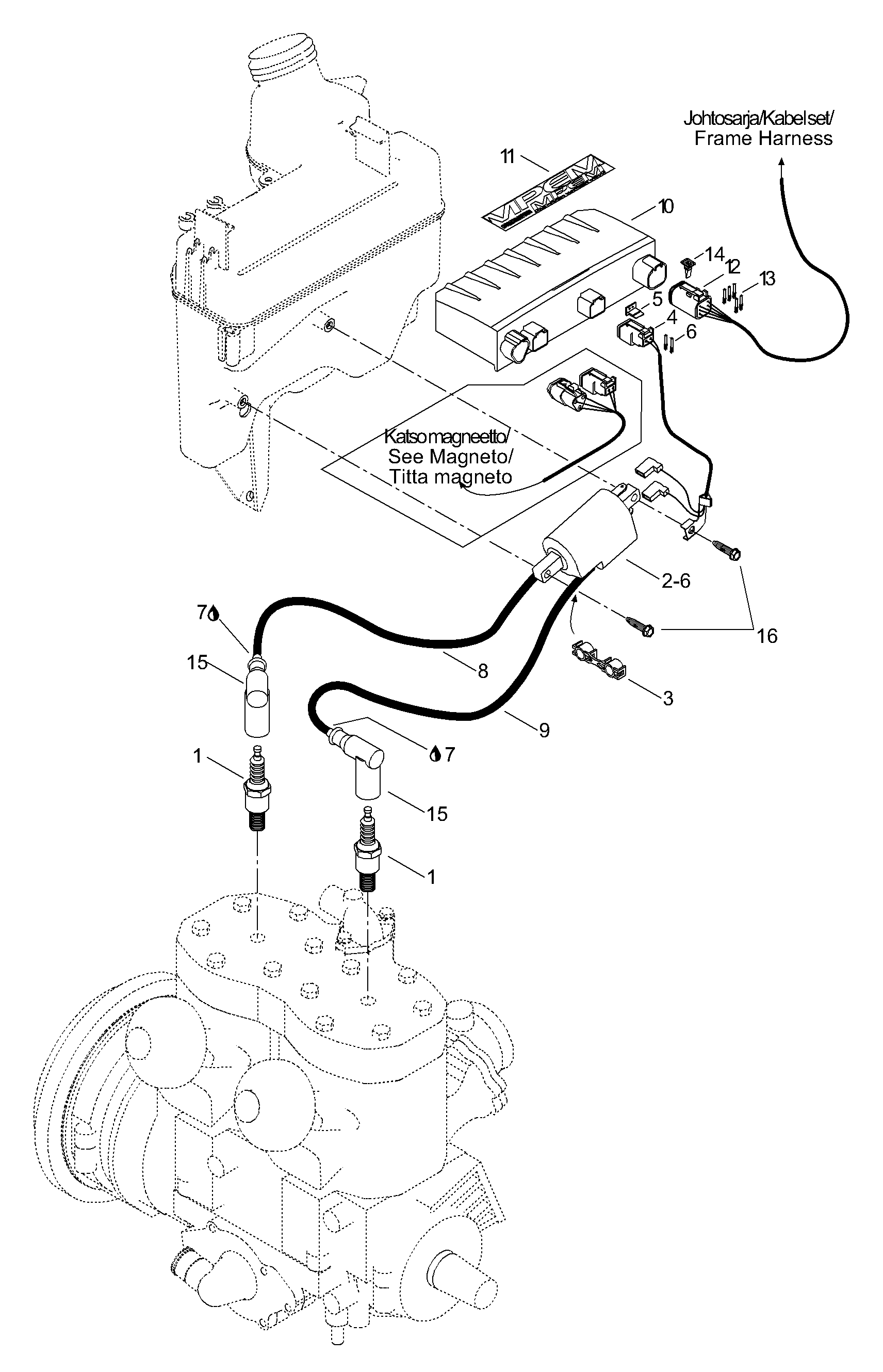

01- DPM для BRP Lynx Enduro 500 Special - 2003
-
№АртикулНазвание
-
1512059533 Spark plug BR9ECSSpark plug BR9ECS
-
2512059512 Ignition coilIgnition coil
-
3410914600 Plastic clipPlastic clip
-
4409207300 Female terminal housinFemale terminal housin
-
5409207100 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
7293550004 140gDielectric grease, 140g140gDielectric grease, 140g
-
8512059485 Spark plug wire 380 mmSpark plug wire 380 mm
-
9512059486 Spark plug wire 455 mmSpark plug wire 455 mm
-
10512059638 Calibration moduleCalibration module
-
11516000245 Label, MPEMLabel, MPEM
-
12515175673 Female terminal housinFemale terminal housin
-
13278000632 Female terminalFemale terminal
-
14515175705 Female lock (6 circuits)Female lock (6 circuits)
-
15278000237 Spark plug protectorSpark plug protector
-
1640375 ScrewScrew
