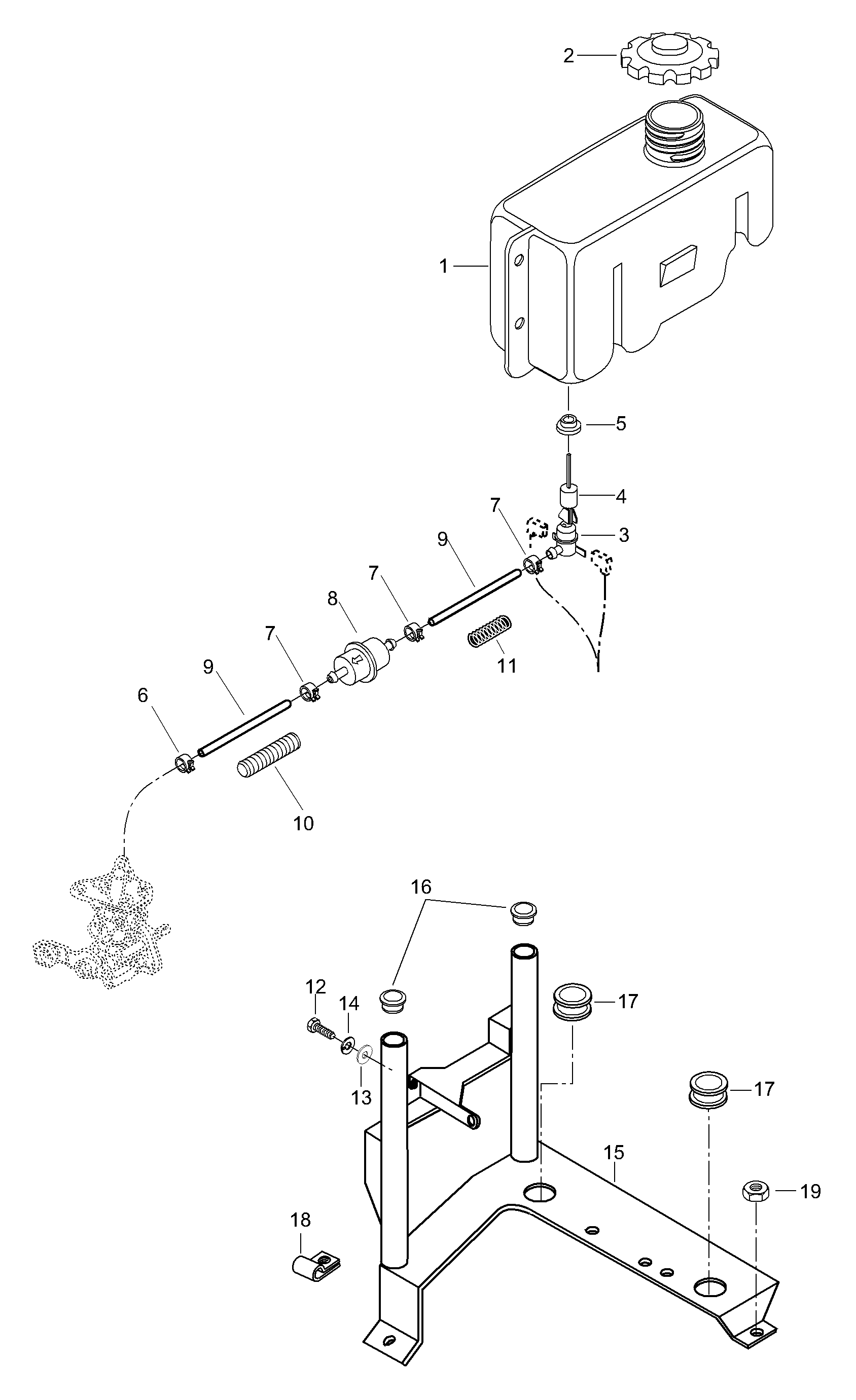

01- Oil Tank для BRP Lynx GLX 5900 FCE - 2003
-
№АртикулНазвание
-
15142700 Oil tankOil tank
-
2519000044 CapCap
-
3414681800 Oil level sensorOil level sensor
-
4414681900 Float for sensorFloat for sensor
-
5570023000 GrommetGrommet
-
6414420700 Spring clipSpring clip
-
727119F Spring clipSpring clip
-
8414536500 Oil filterOil filter
-
939046 Oil line 11/8Oil line 11/8
-
1028015 TubeTube
-
11250002 SpringSpring
-
1240029 Screw M6x16Screw M6x16
-
1320009 WasherWasher
-
1420052 Lock washerLock washer
-
155342647 SupportSupport
-
1628136 PlugPlug
-
1728022 GrommetGrommet
-
1827092 ClampClamp
-
1933200 Elastic flanged nut M6Elastic flanged nut M6
