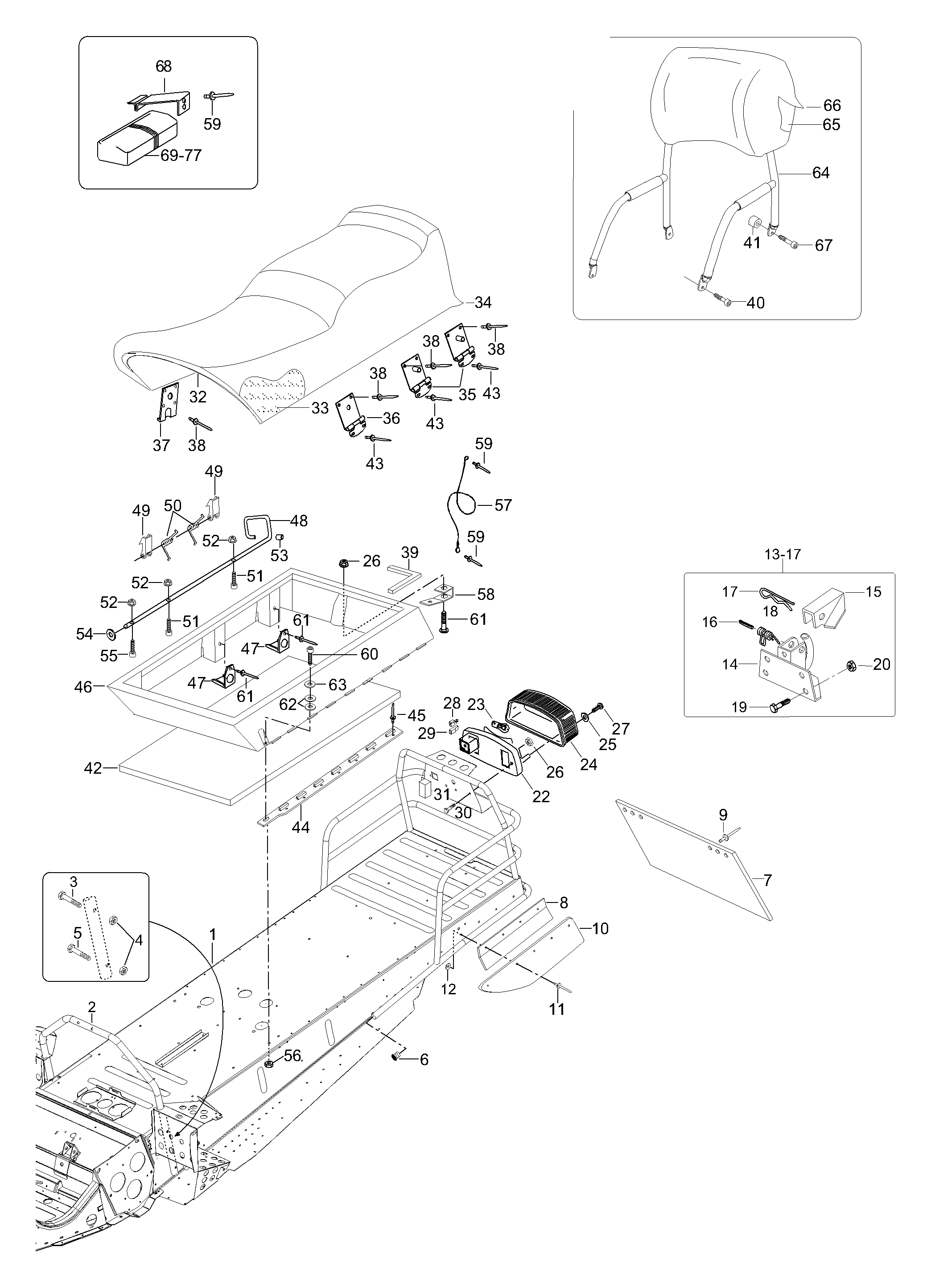

09- Frame для BRP Lynx GLX 5900 FCE - 2003
-
№АртикулНазвание
-
1605148708 Chassis. Includes items 1 thru 4Chassis. Includes items 1 thru 4
-
25143873 ----------
-
340032 Screw M6x30Screw M6x30
-
433051 Nut M6Nut M6
-
540002 Screw M6x40Screw M6x40
-
628136 PlugPlug
-
7535437 Snow guardSnow guard
-
85340532 SupportSupport
-
936036 RivetRivet
-
105142828 Snow guard, sideSnow guard, side
-
1136097 RivetRivet
-
1220037 WasherWasher
-
135344156 Hitch Assy. Includes items 13 thru 17Hitch Assy. Includes items 13 thru 17
-
145344208 Bracket weldedBracket welded
-
155440767 LatchLatch
-
1641012 CotterCotter
-
1741029 PinPin
-
18545693 SpringSpring
-
1940336 Screw M8x20Screw M8x20
-
2033011 Nut elastic M8Nut elastic M8
-
215341214 Rear lamp assy. Includes items 21 thru 27Rear lamp assy. Includes items 21 thru 27
-
22414979400 Tail lamp housingTail lamp housing
-
23410504000 Bulb tail lampBulb tail lamp
-
24414513700 LensLens
-
25414516400 WasherWasher
-
2633200 Nut M6Nut M6
-
2740613 ScrewScrew
-
2842178 Female terminalFemale terminal
-
2942179 Connector housingConnector housing
-
3040032 Screw M6x30Screw M6x30
-
315345713 CoverCover
-
32519394 Bottom of seatBottom of seat
-
335244982 FoamFoam
-
34605148625 Seat coverSeat cover
-
35549874 Hinge for set ass’yHinge for set ass’y
-
365440581 Hinge for set ass’yHinge for set ass’y
-
37549732 Lock plate weld.Lock plate weld.
-
3836071 RivetRivet
-
395440059 SealSeal
-
4040388 Allen screw M8x20Allen screw M8x20
-
415440665 SpacerSpacer
-
425344621 FoamFoam
-
4336489 RivetRivet
-
445144029 Clip plate R.H.Clip plate R.H.
-
445144028 Clip plate L.H.Clip plate L.H.
-
4536083 RivetRivet
-
465142066 Seat boxSeat box
-
475443661 SupportSupport
-
485344987 Locking rodLocking rod
-
5328019 PlugPlug
-
5420004 WasherWasher
-
5540144 Allen screw M4x16Allen screw M4x16
-
5633066 Nut M6Nut M6
-
57546777 Retainer cableRetainer cable
-
585444464 Cable keeperCable keeper
-
5936009 Rivet, blackRivet, black
-
6040052 Allen screw M6x20Allen screw M6x20
-
6140149 Screw M6x30Screw M6x30
-
6220009 WasherWasher
-
6320052 Spring washerSpring washer
-
645245664 BackrestBackrest
-
65539399 Backrest foamBackrest foam
-
665340917 Backrest coverBackrest cover
-
6740389 Allen screw M8x30Allen screw M8x30
-
685344443 Spring holderSpring holder
-
695445401 Tool box assy. Includes items 69 thru 70Tool box assy. Includes items 69 thru 70
-
70572036310 Tool boxTool box
