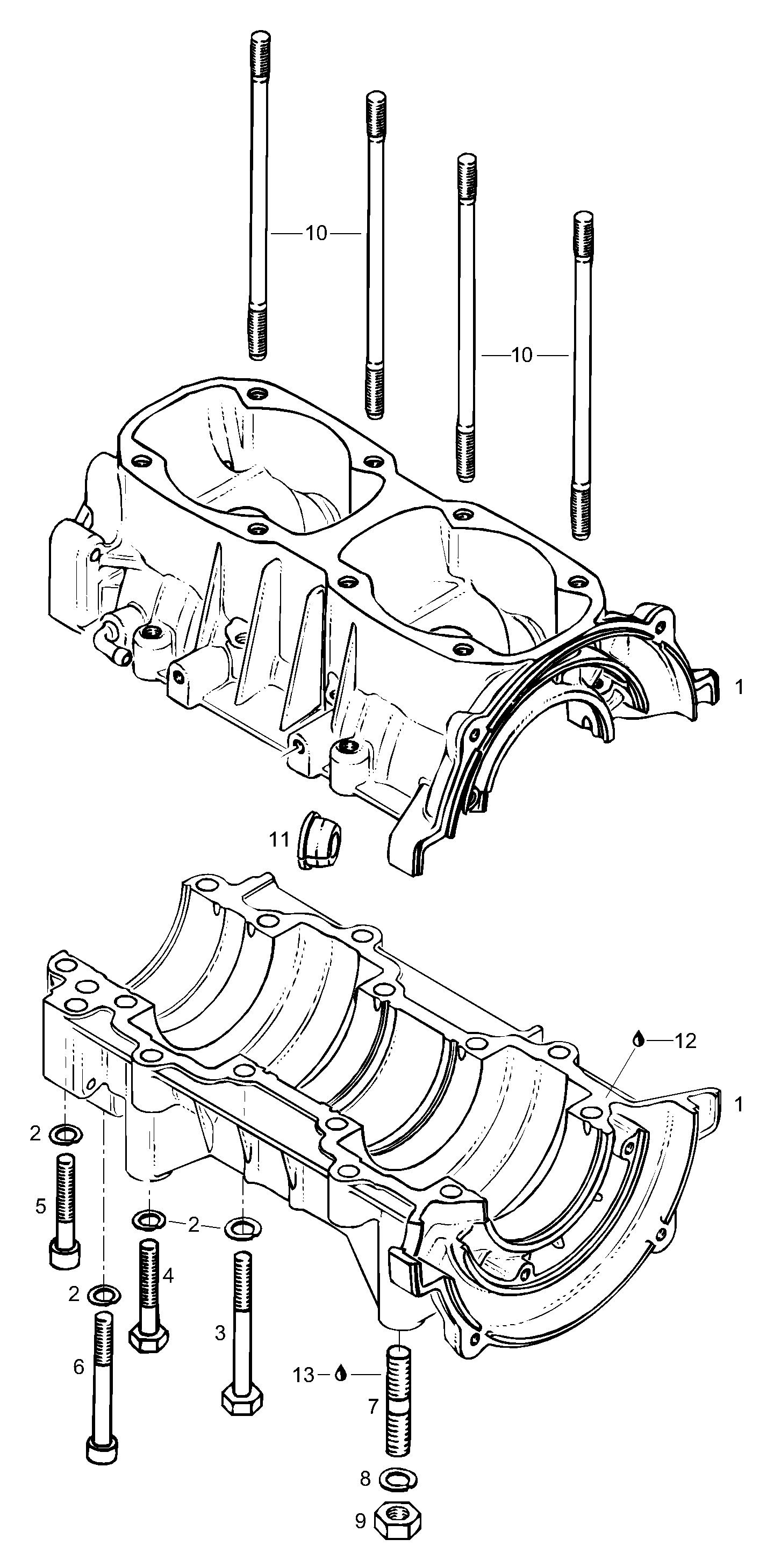

05- Crankcase для BRP Lynx GLX 5900 FCE - 2003
-
№АртикулНазвание
-
300050303 Short block engineShort block engine
-
1420888493 Crankcase assy. Includes items 1 thru 6Crankcase assy. Includes items 1 thru 6
-
220014 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4420940631 Screw M8x45Screw M8x45
-
5420841561 Allen screw M8x45Allen screw M8x45
-
6420841841 Allen screw M8x65Allen screw M8x65
-
7420640030 Stud M10Stud M10
-
8420945753 Lock washerLock washer
-
933004 Nut M10Nut M10
-
10420840556 Stud M8Stud M8
-
11420860962 Cable grommetCable grommet
-
12420899784 Loctite 574 orangeLoctite 574 orange
-
13420899785 Loctite 221 violetLoctite 221 violet
