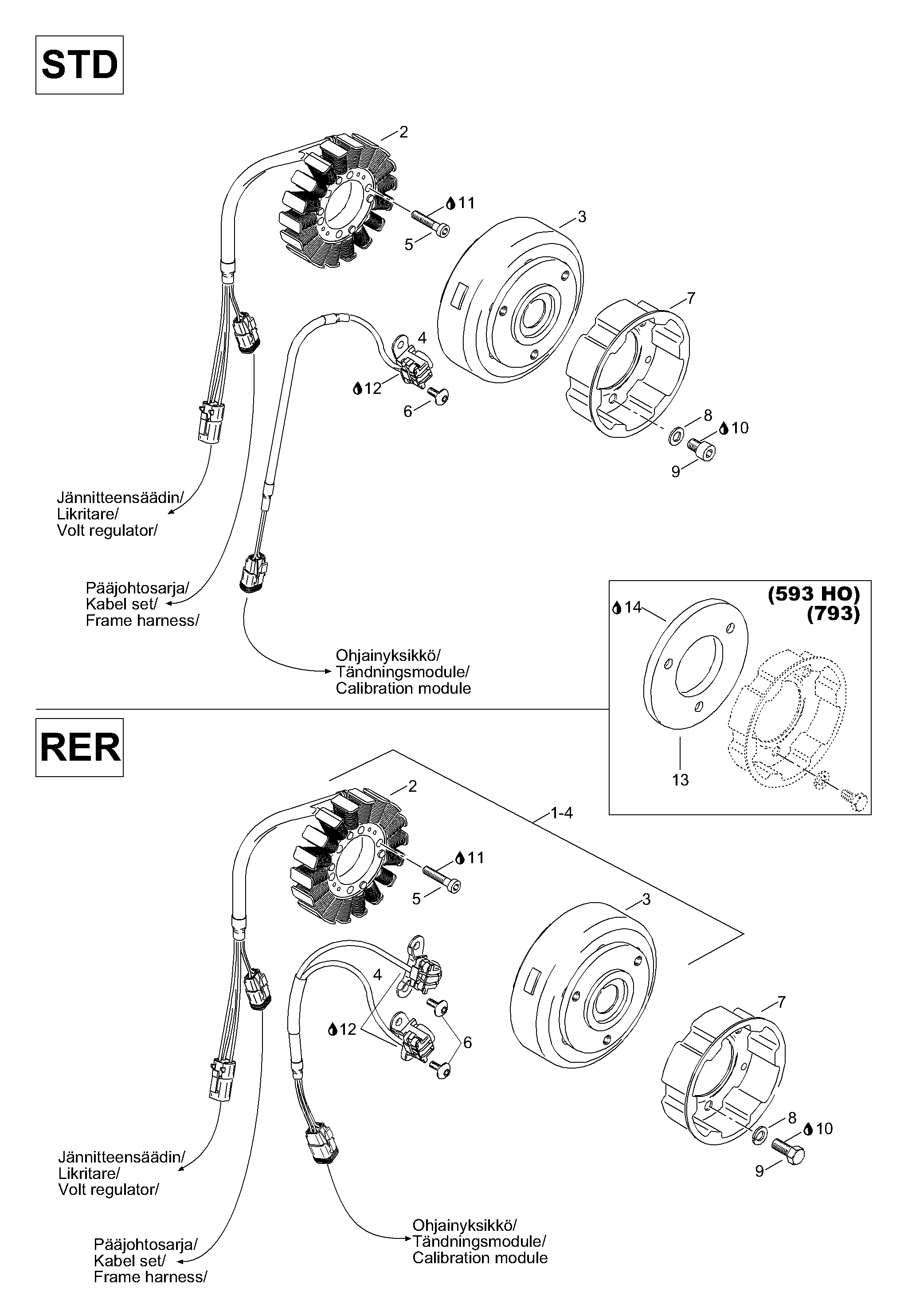

03- Magneto для BRP Lynx Rave 800 Special - 2003
-
№АртикулНазвание
-
1420888236 Magneto 12V/360W. Includes items 1 thru 4Magneto 12V/360W. Includes items 1 thru 4
-
2420888617 Stator assyStator assy
-
3420888628 Magneto flywheelMagneto flywheel
-
4420966803 Pick up assyPick up assy
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852532 Starter cupStarter cup
-
8420945752 Lock washerLock washer
-
9420940591 Screw M8x20Screw M8x20
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
12420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
-
13420866756 Fly wheelFly wheel
-
14413711400 Loctite 648, 10 mlLoctite 648, 10 ml
