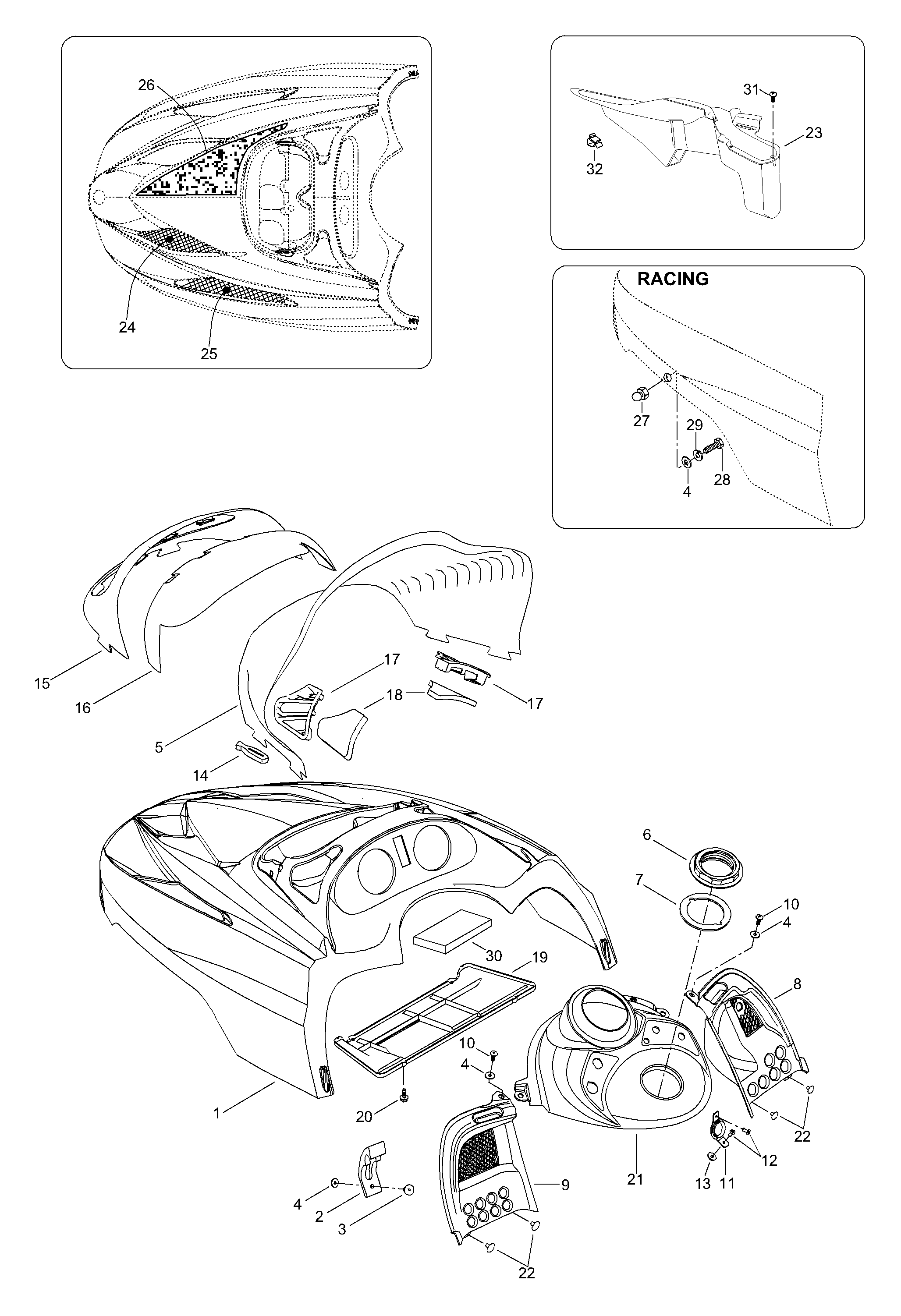

09- Hood для BRP Lynx Rave 800 Special - 2003
-
№АртикулНазвание
-
1605148638 Hood, red/blackHood, red/black
-
2570027100 Hood latchHood latch
-
336037 RivetRivet
-
420008 WasherWasher
-
5517302002 WindshieldWindshield
-
6517302043 Console nutConsole nut
-
75447116 GasketGasket
-
8517302005 R.H.consoleR.H.console
-
9517302006 L.H.consoleL.H.console
-
10732600030 ScrewScrew
-
11517302129 Rope guideRope guide
-
1236002 RivetRivet
-
13517302286 Rubber stopperRubber stopper
-
14570023800 Windshield latchWindshield latch
-
15517302582 Molding head lampMolding head lamp
-
16517302003 Windshield supportWindshield support
-
17517302024 R.H. air intake grillR.H. air intake grill
-
17517302025 L.H. air intake grillL.H. air intake grill
-
18517302151 Air intake foamAir intake foam
-
19517302578 Air intake plateAir intake plate
-
20243141640 Screw M4x16Screw M4x16
-
21517302729 Center consoleCenter console
-
2236036 RivetRivet
-
23605348609 Air intake, brakeAir intake, brake
-
245346887 L.H. GrillL.H. Grill
-
245346888 R.H. GrillR.H. Grill
-
255346889 L.H. GrillL.H. Grill
-
255346890 R.H. GrillR.H. Grill
-
26414631900 Foam-acousticFoam-acoustic
-
30517302425 FoamFoam
-
3140177 Screw B4,8 x 16Screw B4,8 x 16
-
32414227300 ClipClip
