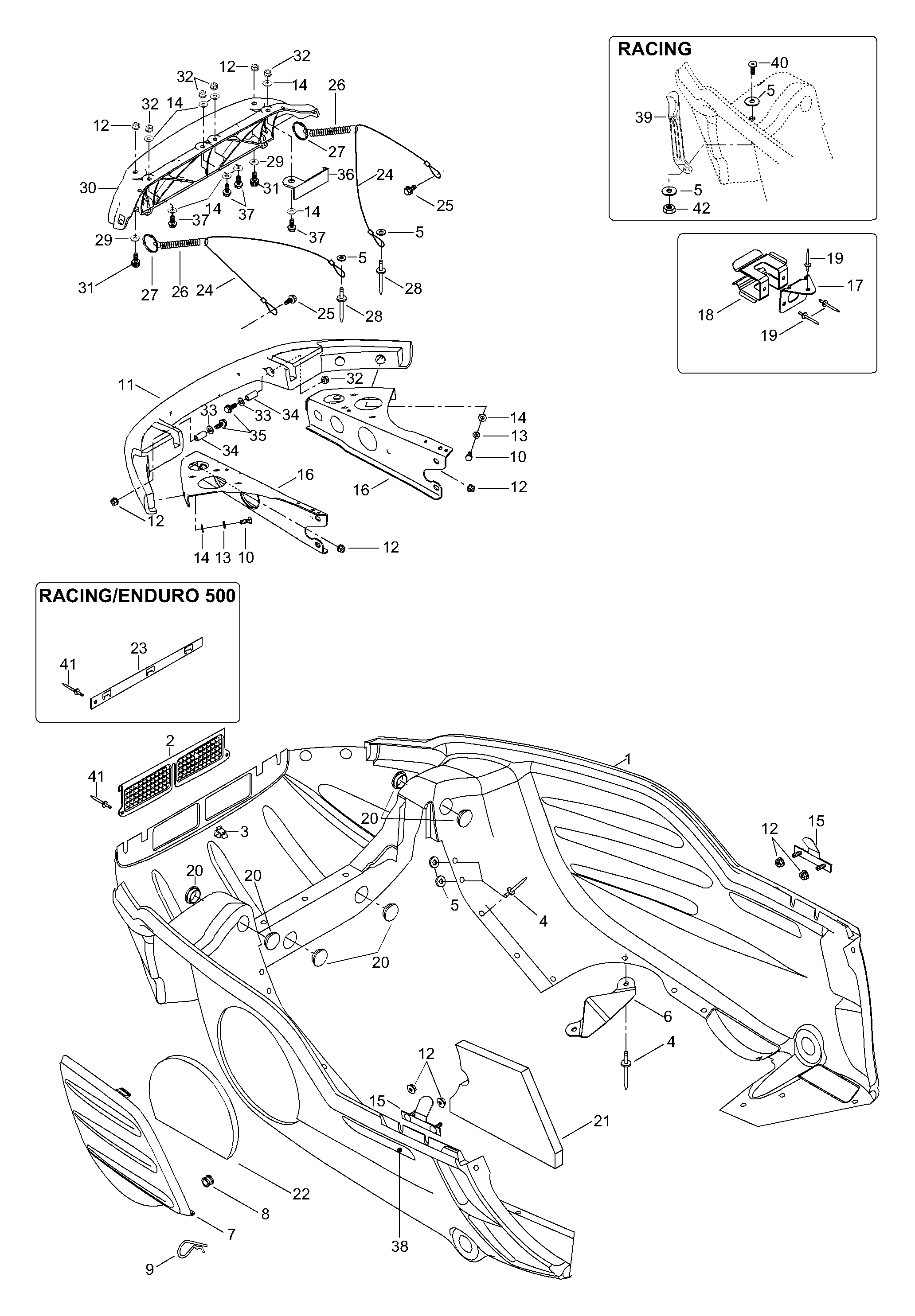

09- Bottom Pan для BRP Lynx Rave 800 Special - 2003
-
№АртикулНазвание
-
1605349366 Bottom pan, blackBottom pan, black
-
2502006697 GrillGrill
-
3517302785 ClipClip
-
436037 RivetRivet
-
520008 WasherWasher
-
6502006563 Deflector snowDeflector snow
-
7502006506 Bottom pan door, blackBottom pan door, black
-
8414036300 GrommetGrommet
-
9414575600 PinPin
-
1040029 Screw M6x16Screw M6x16
-
11502006536 Bumper, blackBumper, black
-
1233200 Elastic flange nut M6Elastic flange nut M6
-
1320052 Spring washerSpring washer
-
1420009 WasherWasher
-
15502006645 BracketBracket
-
16502006596 R.H. supportR.H. support
-
16502006597 L.H. supportL.H. support
-
17502006599 BracketBracket
-
18517281905 Belt supportBelt support
-
1936489 RivetRivet
-
20414916600 Nylon capNylon cap
-
21502006558 Bottom foamBottom foam
-
22502006559 Bottom pan door foamBottom pan door foam
-
24549882 Retainer cableRetainer cable
-
2540177 Hex. tapping screwHex. tapping screw
-
26415043300 SpringSpring
-
27415058300 RingRing
-
2836036 RivetRivet
-
2920117 Washer, blackWasher, black
-
30517302631 Hinge-halfHinge-half
-
3140381 Allen screw M6x20Allen screw M6x20
-
3233010 Nut elastic M6Nut elastic M6
-
3320003 WasherWasher
-
34517302179 SleeveSleeve
-
3540003 Screw M6x35Screw M6x35
-
365448263 R.H. BracketR.H. Bracket
-
365448264 L.H. BracketL.H. Bracket
-
3740030 Screw M6x20Screw M6x20
-
38415064401 L.H. reflector, yellowL.H. reflector, yellow
-
38415064400 R.H. reflector, yellowR.H. reflector, yellow
-
4136005 RivetRivet
