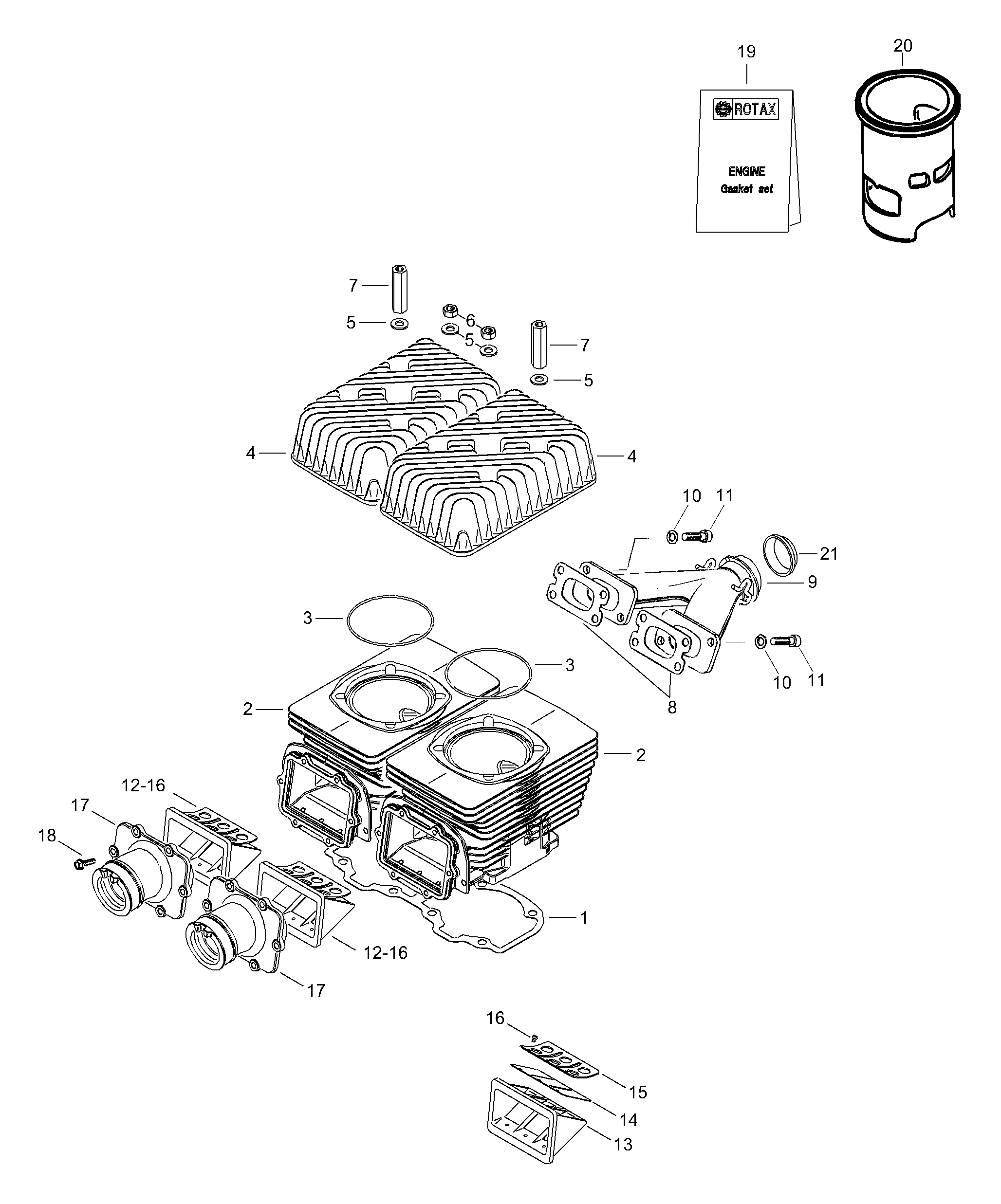

01- Cylinder для BRP Lynx Ranger 550 - 2004
-
№АртикулНазвание
-
1420950910 Gasket, cyl.bottom 0.3Gasket, cyl.bottom 0.3
-
1420950911 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
1420950912 Gasket, cyl.bottom 0.6Gasket, cyl.bottom 0.6
-
2420623140 CylinderCylinder
-
3420850540 Gasket, cylinder headGasket, cylinder head
-
4420923595 Cylinder headCylinder head
-
520004 WasherWasher
-
6420242206 Nut M8Nut M8
-
7420842203 Nut M8 x 47Nut M8 x 47
-
8420831849 GasketGasket
-
9420673065 Branch-YBranch-Y
-
1020014 Spring washerSpring washer
-
1140135 Allen screw M8 x 30Allen screw M8 x 30
-
12420924519 Reed valve assy. Includes items 12 thru 16Reed valve assy. Includes items 12 thru 16
-
14420924532 Reed pedalReed pedal
-
15420924539 Pedal stopPedal stop
-
16420941215 Screw M3 x 5Screw M3 x 5
-
17420867100 Carburetor socketCarburetor socket
-
18420941925 Screw M5 x 16Screw M5 x 16
-
19420889910 Gasket setGasket set
-
21514053644 SealSeal
