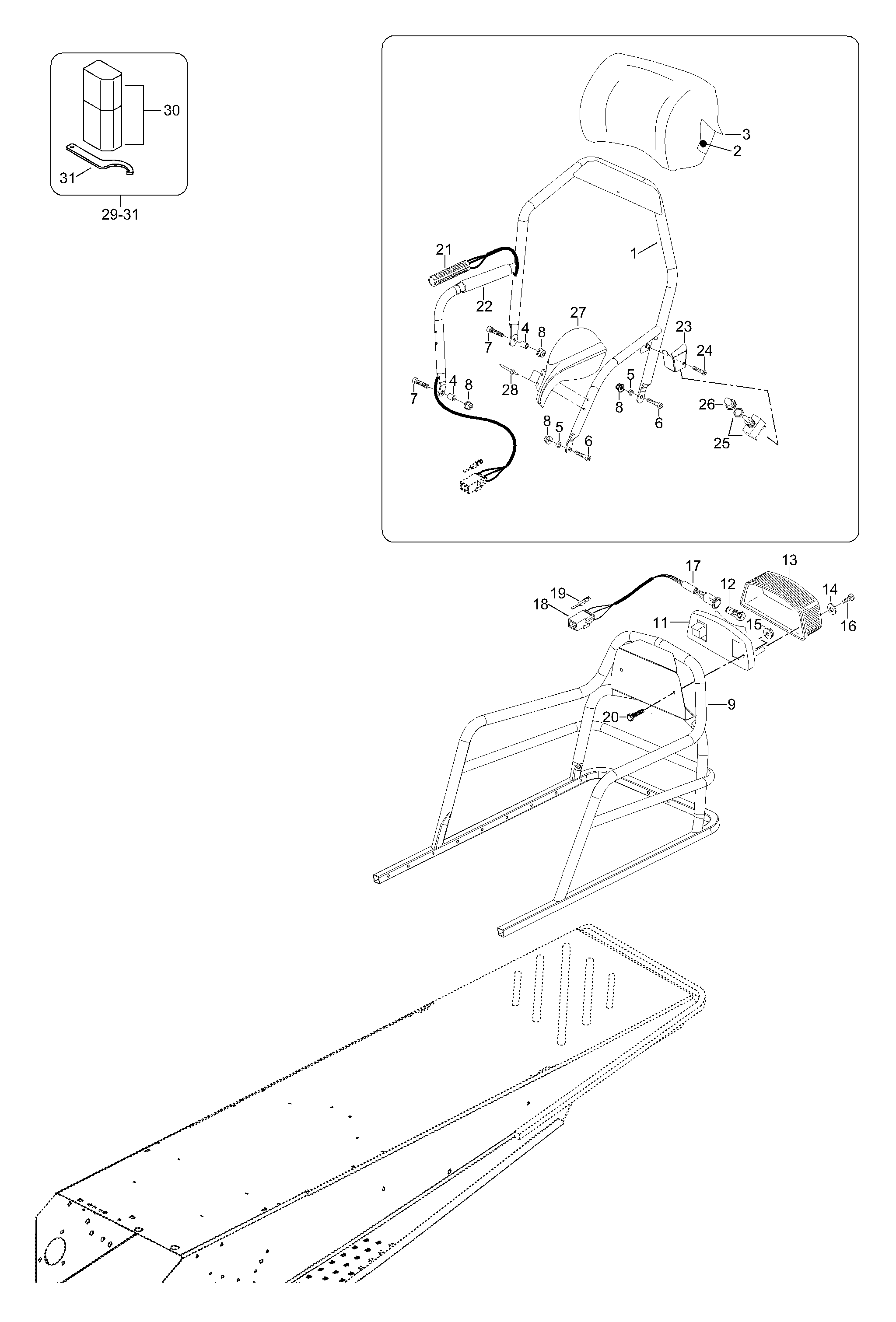

09- Body для BRP Lynx Ranger 550 - 2004
-
№АртикулНазвание
-
1605250296 BackrestBackrest
-
2605349172 FoamFoam
-
3605350799 CoverCover
-
45446380 SleeveSleeve
-
55446381 SleeveSleeve
-
640135 Allen screw M8 x 30Allen screw M8 x 30
-
740286 Allen screw M8 x 45Allen screw M8 x 45
-
833201 Elastic flanged nut M8Elastic flanged nut M8
-
9605150300 Rack assyRack assy
-
11515175397 Taillamp housingTaillamp housing
-
12410504000 BulbBulb
-
13414513700 LensLens
-
14414516400 WasherWasher
-
1533200 Nut M6Nut M6
-
16414516300 ScrewScrew
-
17515175852 AdaptorAdaptor
-
1842271 Male connector housingMale connector housing
-
1942614 Female terminalFemale terminal
-
2040149 Locking screw M6 x 30Locking screw M6 x 30
-
21515175573 HeaterHeater
-
22415050300 GripGrip
-
23605350310 BracketBracket
-
2440393 Allen screw M6 x 30Allen screw M6 x 30
-
25410107300 SwitchSwitch
-
26515175281 CoverCover
-
27572089400 R.H. shelter gripR.H. shelter grip
-
27572089500 L.H. shelter gripL.H. shelter grip
-
2836037 RivetRivet
-
29605350525 Tool box with tools. Includes items 29 thru 31Tool box with tools. Includes items 29 thru 31
-
30572036310 Tool boxTool box
-
31529032900 CamCam
