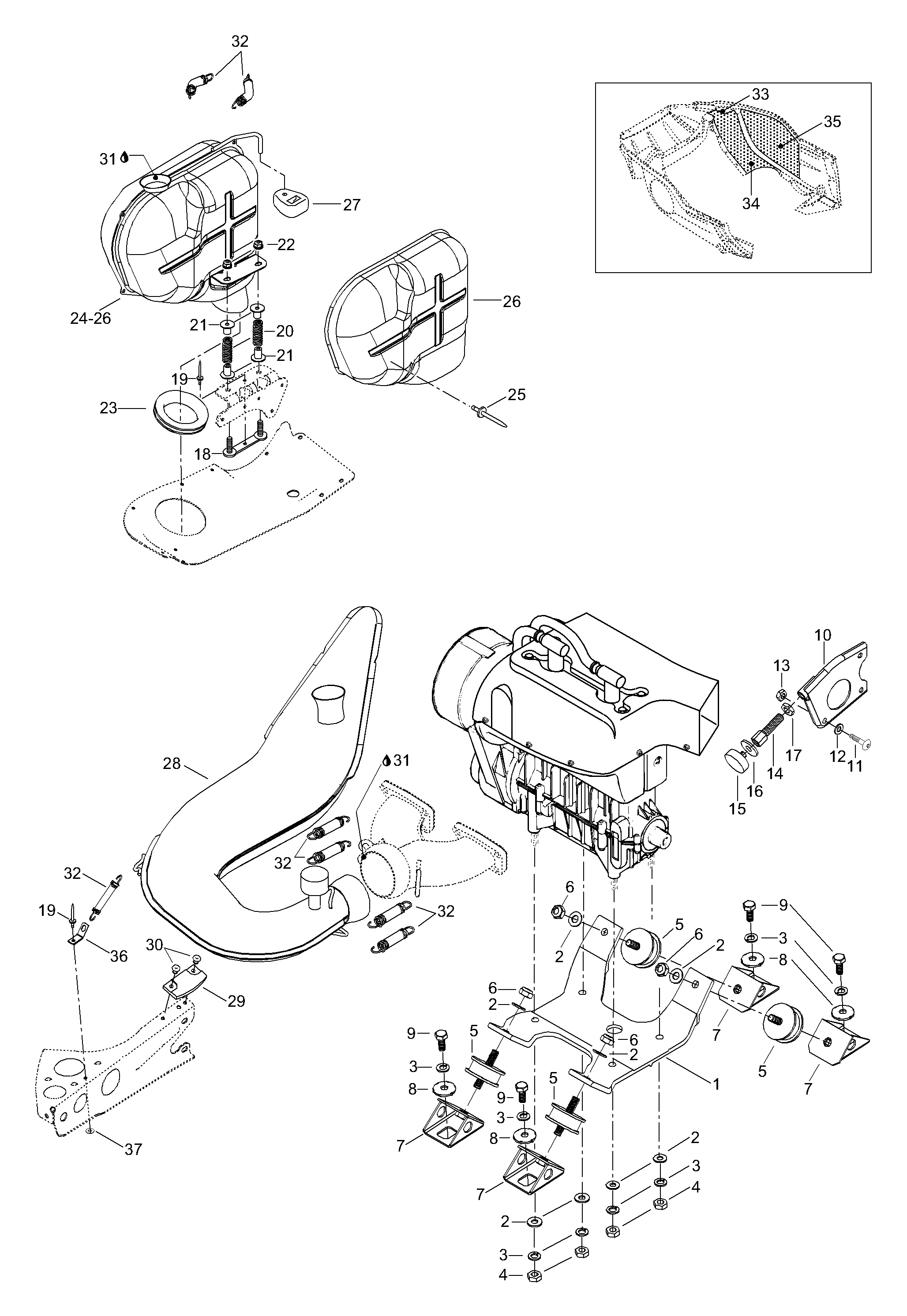

01- Engine Mount Plate/Muffler для BRP Lynx Ranger 550 - 2004
-
№АртикулНазвание
-
1512059397 Engine supportEngine support
-
220105 WasherWasher
-
320113 Spring washerSpring washer
-
433004 Nut M10Nut M10
-
5570128700 Rubber mountRubber mount
-
633082 Nut elastic M10Nut elastic M10
-
7512050900 Engine supportEngine support
-
8512056700 Lock washerLock washer
-
940040 Screw M10 x 25Screw M10 x 25
-
10512059446 Support plateSupport plate
-
1140344 Allen screw M8 x 25Allen screw M8 x 25
-
1220004 WasherWasher
-
1333011 Nut elastic M8Nut elastic M8
-
14512058800 Stopper screwStopper screw
-
15512059056 StopperStopper
-
165147306 WasherWasher
-
1733218 Jam nut M12Jam nut M12
-
185447628 BracketBracket
-
1936489 RivetRivet
-
20414913700 SpringSpring
-
21514053343 SleeveSleeve
-
2233029 Elastic flanged nut M8Elastic flanged nut M8
-
23570039000 Rubber grommetRubber grommet
-
24514053648 Muffler assy. Includes items 24 thru 26Muffler assy. Includes items 24 thru 26
-
25390910000 RivetRivet
-
26514053389 L.H. heat shieldL.H. heat shield
-
27514052704 Rubber pumberRubber pumber
-
28605150552 Tune pipeTune pipe
-
29570044100 Rubber padRubber pad
-
3036037 RivetRivet
-
31413710300 Sealing, Loctite 17914Sealing, Loctite 17914
-
32415107100 SpringSpring
-
33514053363 IsoleringIsolering
-
34514052718 IsoleringIsolering
-
35514053390 IsoleringIsolering
-
365447086 Spring bracketSpring bracket
-
3720008 WasherWasher
