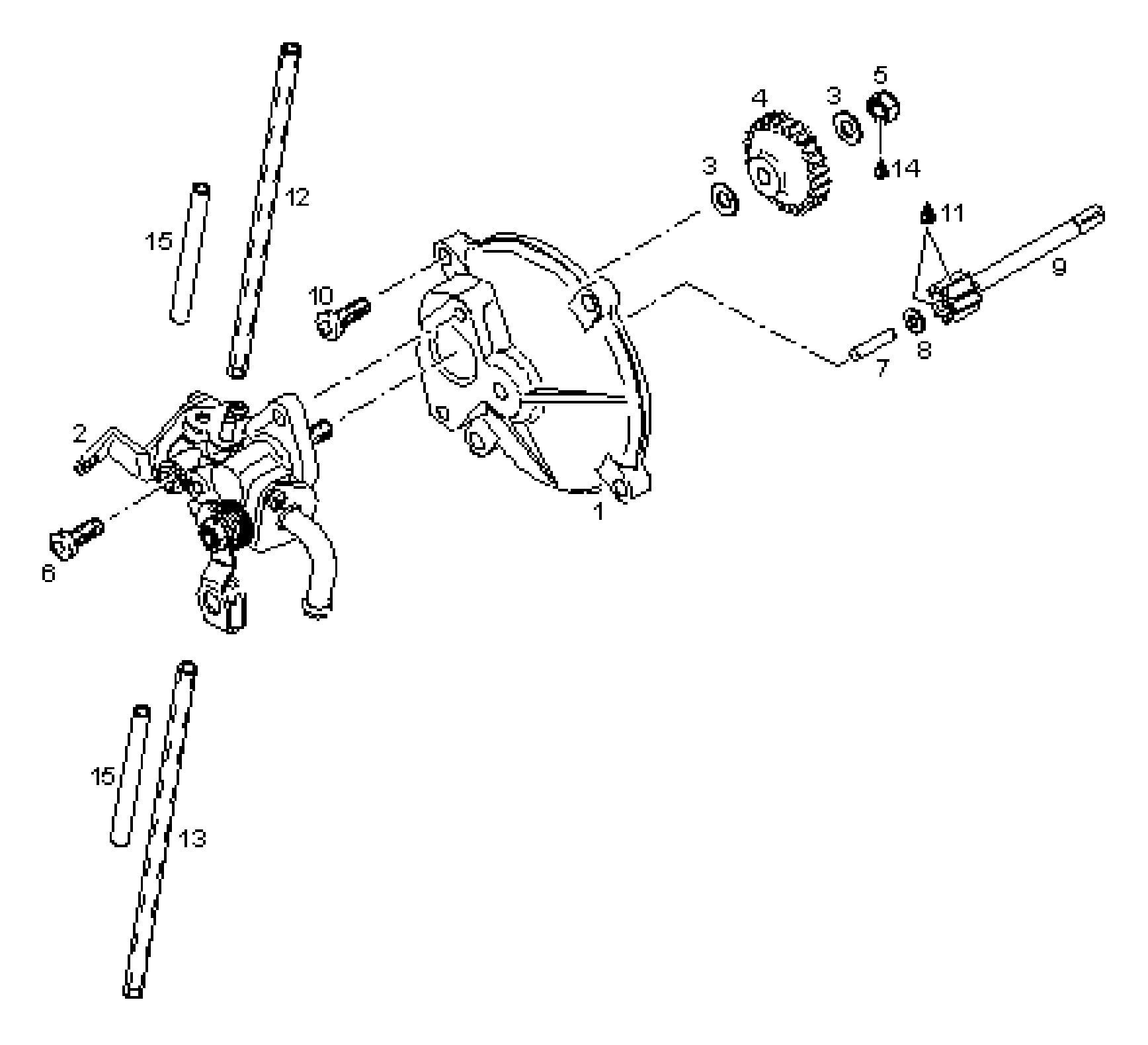

01- Oil Pump для BRP Lynx ST 550 F - 2004
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420889070 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841971 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841976 Screw M5.5 x 20Screw M5.5 x 20
-
11413707000 Molykote 111Molykote 111
-
12414413800 Oil line, 270 mmOil line, 270 mm
-
13414413800 Oil line, 325 mmOil line, 325 mm
-
14293800060 Loctite 243, 10mlLoctite 243, 10ml
-
15420660495 Isolation hose, 400 mmIsolation hose, 400 mm
