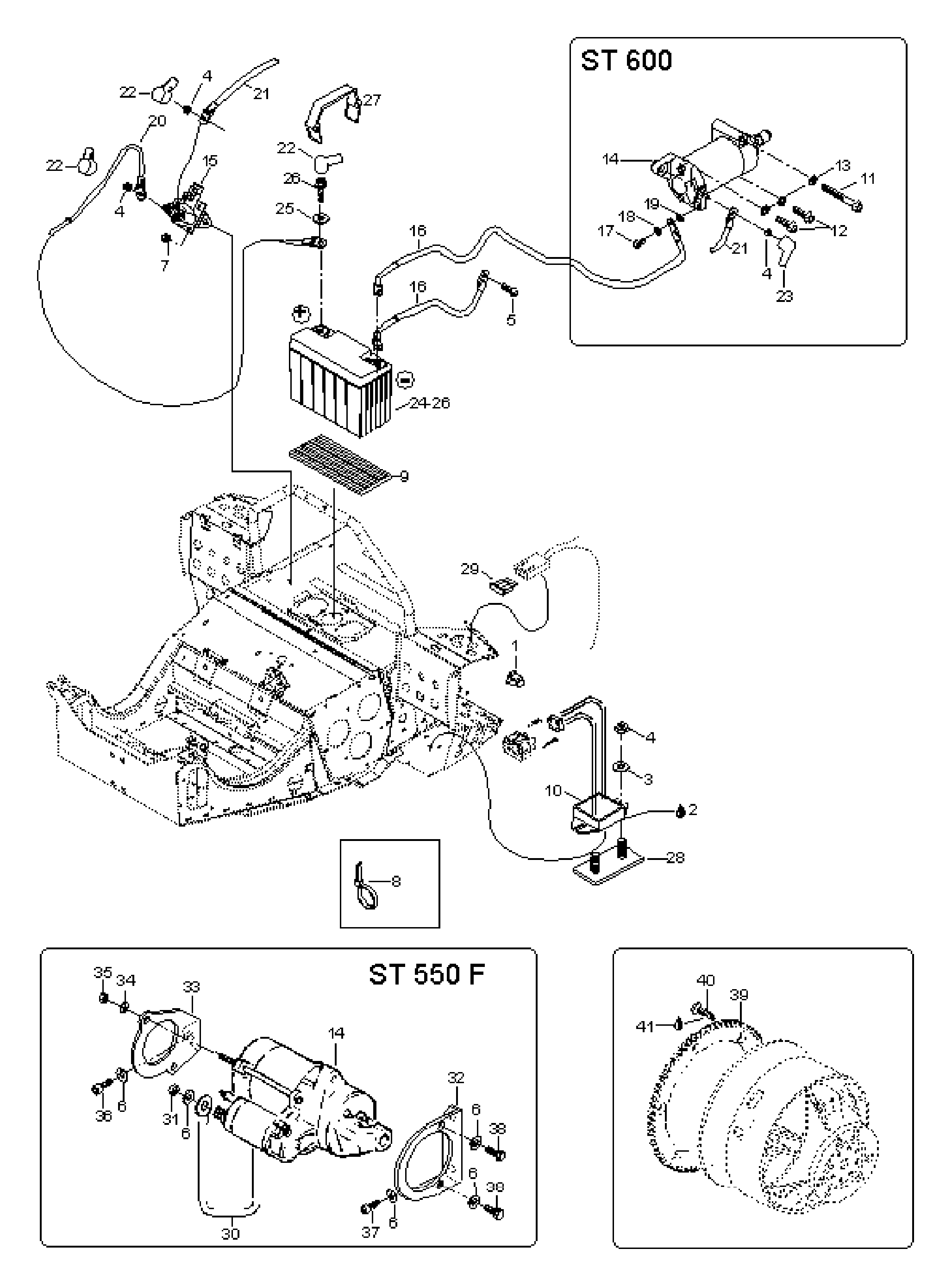

10- Electric Starter Kit для BRP Lynx ST 550 F - 2004
-
№АртикулНазвание
-
1414227300 ClipClip
-
2413707500 Lithium-greaseLithium-grease
-
320009 WasherWasher
-
433010 Nut elastic M6Nut elastic M6
-
540327 Screw M6 x 12Screw M6 x 12
-
620014 Spring washerSpring washer
-
827026 Tie-rapTie-rap
-
9605350237 RubberRubber
-
10515175656 Rectifier assyRectifier assy
-
14410212400 StarterStarter
-
16
-
22570151000 Cap protectionCap protection
-
24410301203 Battery. Includes items 24 thru 26Battery. Includes items 24 thru 26
-
27515175475 Battery strapBattery strap
-
285448286 Support plateSupport plate
-
29278001143 Fuse 20 AFuse 20 A
-
30
-
3133003 Nut M8Nut M8
-
32420951415 Bracket, PTOBracket, PTO
-
33420951426 Bracket, MAGBracket, MAG
-
3420008 WasherWasher
-
3533009 Nut M5Nut M5
-
3640066 Allen screw M8 x 16Allen screw M8 x 16
-
3740305 Allen screw M8 x 20Allen screw M8 x 20
-
3840036 Screw M8 x 20Screw M8 x 20
-
39415043100 Ring gearRing gear
-
40236281684 ScrewScrew
-
41293800005 Loctite 271, 10mlLoctite 271, 10ml
