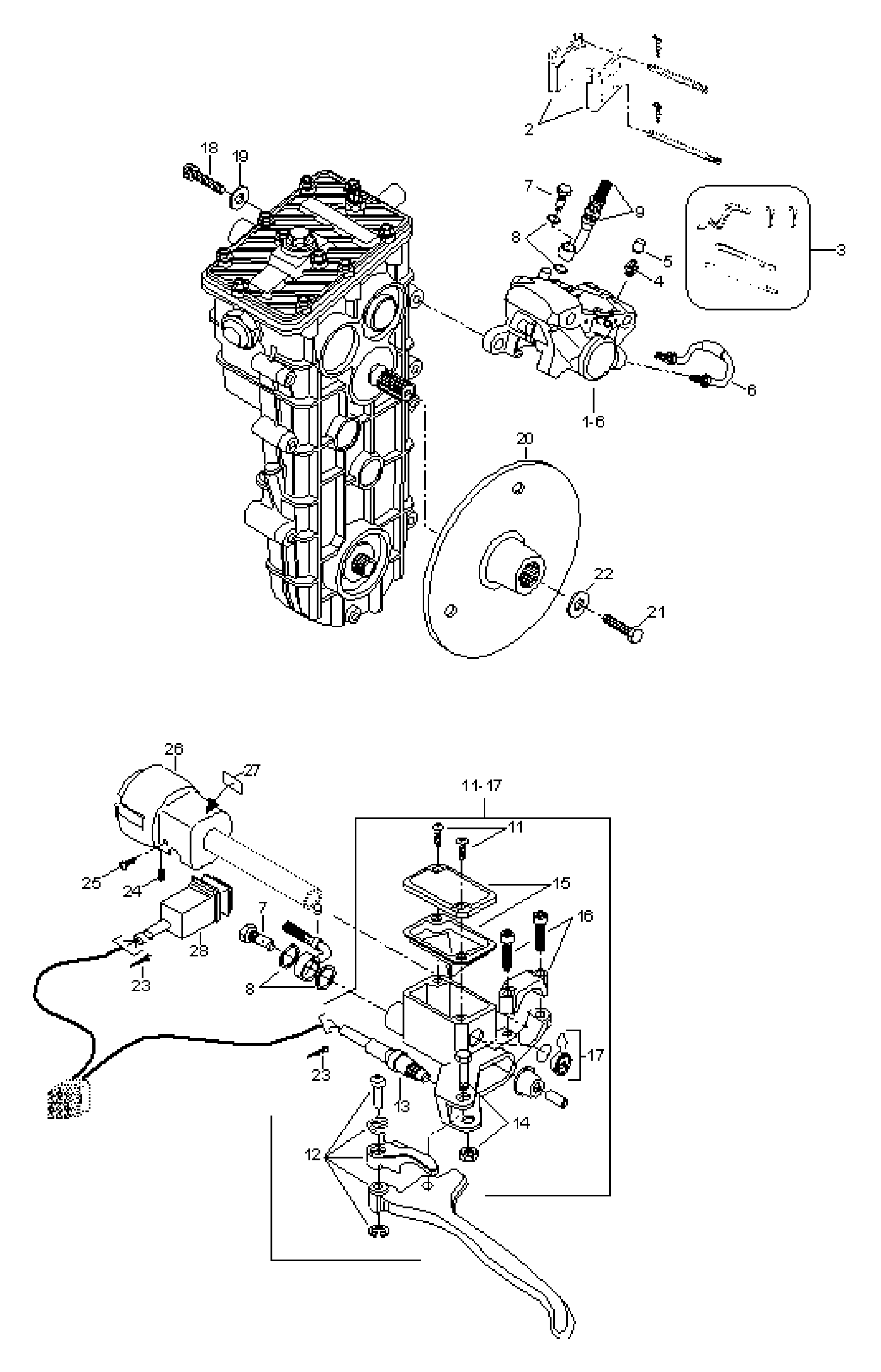

06- Brake Assy для BRP Lynx ST 550 F - 2004
-
№АртикулНазвание
-
124041 Caliber. Includes items 1 thru 6Caliber. Includes items 1 thru 6
-
2415084600 Brake lining kitBrake lining kit
-
3414990700 KitKit
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7414920500 BoltBolt
-
8414920600 WasherWasher
-
9507032219 Brake lineBrake line
-
11507032322 Master cylinder. Includes items 11 thru 17Master cylinder. Includes items 11 thru 17
-
11216141260 ScrewScrew
-
12507032268 Lever assyLever assy
-
13507032366 Microswitch assyMicroswitch assy
-
14415030000 Pin assyPin assy
-
15415029900 CoverCover
-
16415029800 Clamp assyClamp assy
-
17414990600 WindowWindow
-
1840277 Allen screw M10x65Allen screw M10x65
-
1920068 Lock washerLock washer
-
205344710 Brake disk assyBrake disk assy
-
2140336 Screw M8 x 20Screw M8 x 20
-
22546336 WasherWasher
-
2342603 ConnectorConnector
-
24414440800 Set screwSet screw
-
25250000022 Self tabbingSelf tabbing
-
26515175696 Light switch housingLight switch housing
-
27415025500 Dimmer switchDimmer switch
-
28515175814 Light switchLight switch
