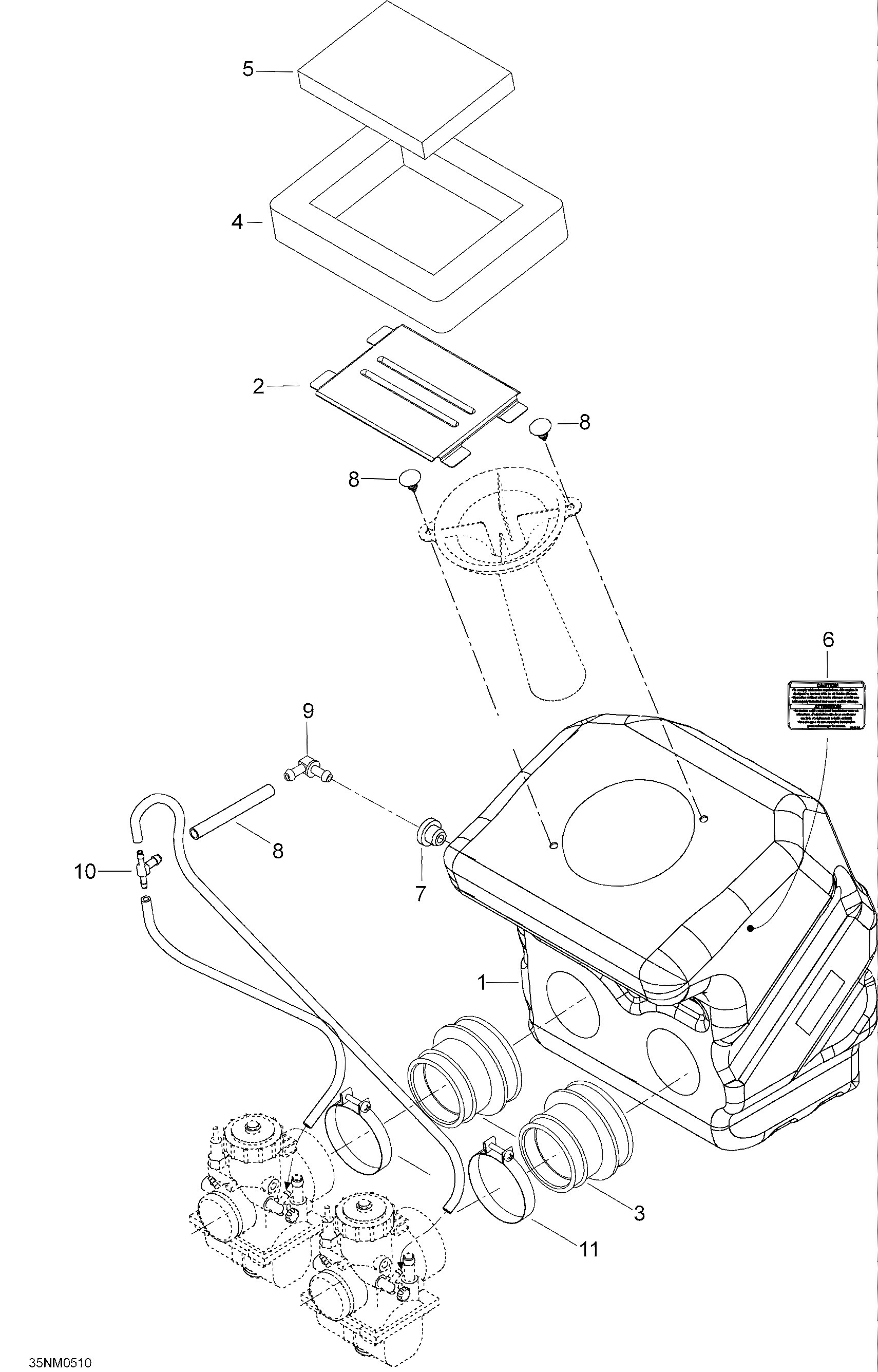

02- Air Silencer, 550, 550RC для BRP Lynx Enduro 550 - 2005
-
№АртикулНазвание
-
1508000317 Air intake ass'y. Enduro 550_Enduro 550 R.C.Air intake ass'y. Enduro 550_Enduro 550 R.C.
-
2508000004 Intake grillIntake grill
-
3508000203 Intake adaptorIntake adaptor
-
4508000245 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
839038 HoseHose
-
9414580600 Grommet. Enduro 550_Enduro 550 R.C.Grommet. Enduro 550_Enduro 550 R.C.
-
10572045500 T-Fitting. Enduro 550_Enduro 550 R.C.T-Fitting. Enduro 550_Enduro 550 R.C.
-
11508000344 ClampClamp
