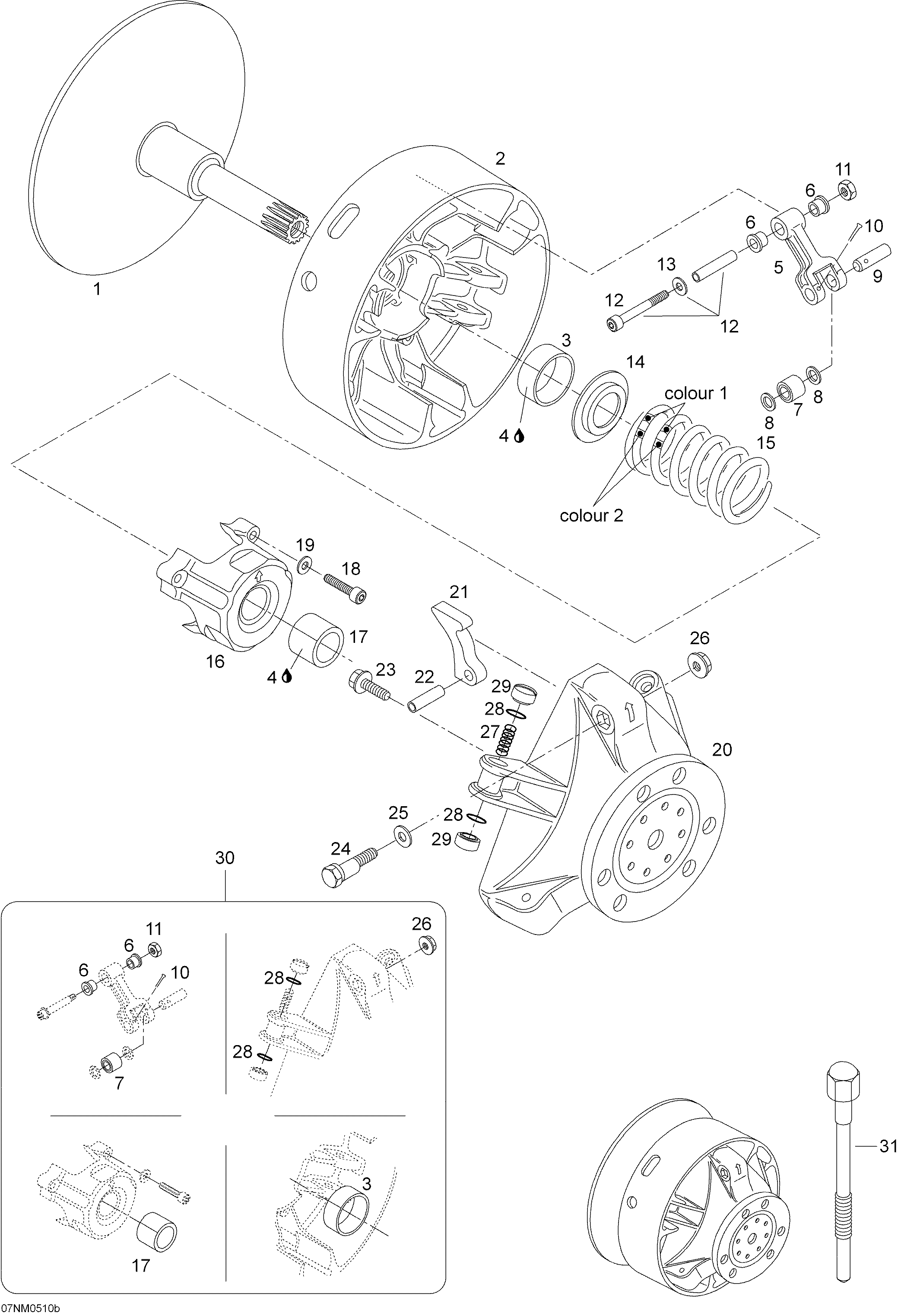

05- Drive Pulley 552 для BRP Lynx Enduro 550 - 2005
-
№АртикулНазвание
-
1417222412 Inner half assyInner half assy
-
2417222241 Outer half assy. Includes 2 to 3Outer half assy. Includes 2 to 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5417222383 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417222477 PinPin
-
10732958001 Cotter pinCotter pin
-
11232561414 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes 12 to 13Fitting screw assy. Includes 12 to 13
-
12205065044 Allen screw M6 x 50Allen screw M6 x 50
-
13234061410 WasherWasher
-
14417222044 Spring seatSpring seat
-
15414768200 Spring, green/blueSpring, green/blue
-
16417222304 Spring cover assy. Includes 16 to 17Spring cover assy. Includes 16 to 17
-
17417004501 Bushing Spring coverBushing Spring cover
-
18250000038 Allen screw M6 x 40Allen screw M6 x 40
-
19420245370 Friction-washerFriction-washer
-
20417222081 Governor cupGovernor cup
-
21417005228 Ramp, 228Ramp, 228
-
22732804009 Dowel tube M8 x 24Dowel tube M8 x 24
-
23210361890 Hex. locking screwHex. locking screw
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417005800 Slider shoeSlider shoe
-
30417006100 Clutch repair kitClutch repair kit
-
31529007900 Puller inner halfPuller inner half
